10-RZ126PA035SC-M620F41
10-R0126PA035SC-M620F40

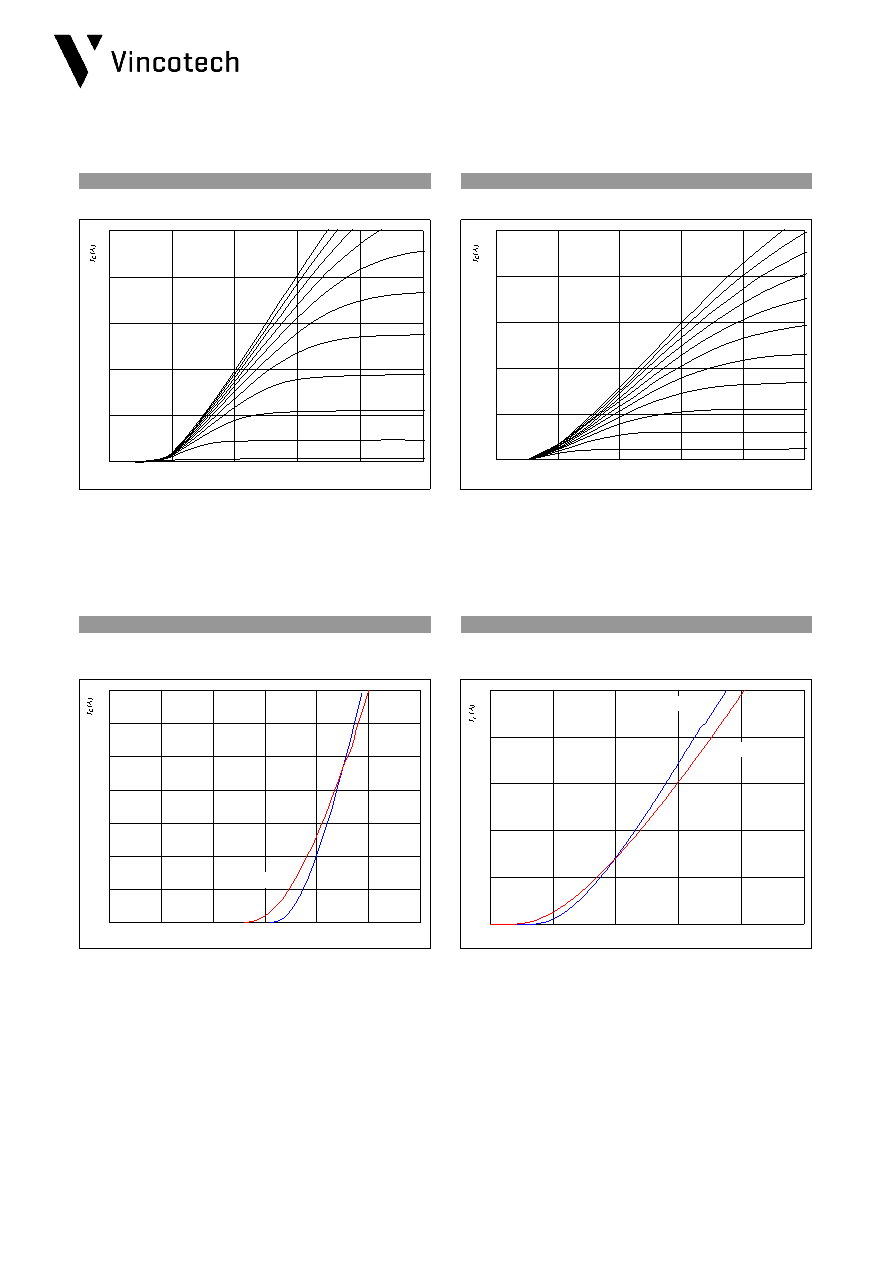

Figure 1
Output inverter IGBT
Figure 2
Output inverter IGBT
Typical output characteristics
IC = f(VCE)
IC = f(VCE)
At
At
tp =
250
µs
tp =
250
µs
Tj =
25
°C
Tj =
150
°C
VGE from
7 V to 17 V in steps of 1 V
VGE from
7 V to 17 V in steps of 1 V
Figure 3
Output inverter IGBT
Figure 4
Output inverter FWD
Typical transfer characteristics
Typical diode forward current as
IC = f(VGE)
a function of forward voltage
IF = f(VF)
At
At
tp =
250
µs
tp =
250
µs
VCE =
10
V
Output Inverter
Typical output characteristics
0
20
40
60
80
100
0
1
2
3
4
5
V CE (V)
0
5
10
15
20
25
30
35
0
2
4
6
8
10
12
V GE (V)
Tj = 25°C
Tj = Tjmax-25°C
0
20
40
60
80
100
0
1
2
3
4
5
V F (V)
Tj = 25°C
Tj = Tjmax-25°C
0
20
40
60
80
100
0
1
2
3
4
5
V CE (V)
4
Revision: 2
Copyright by Vincotech
