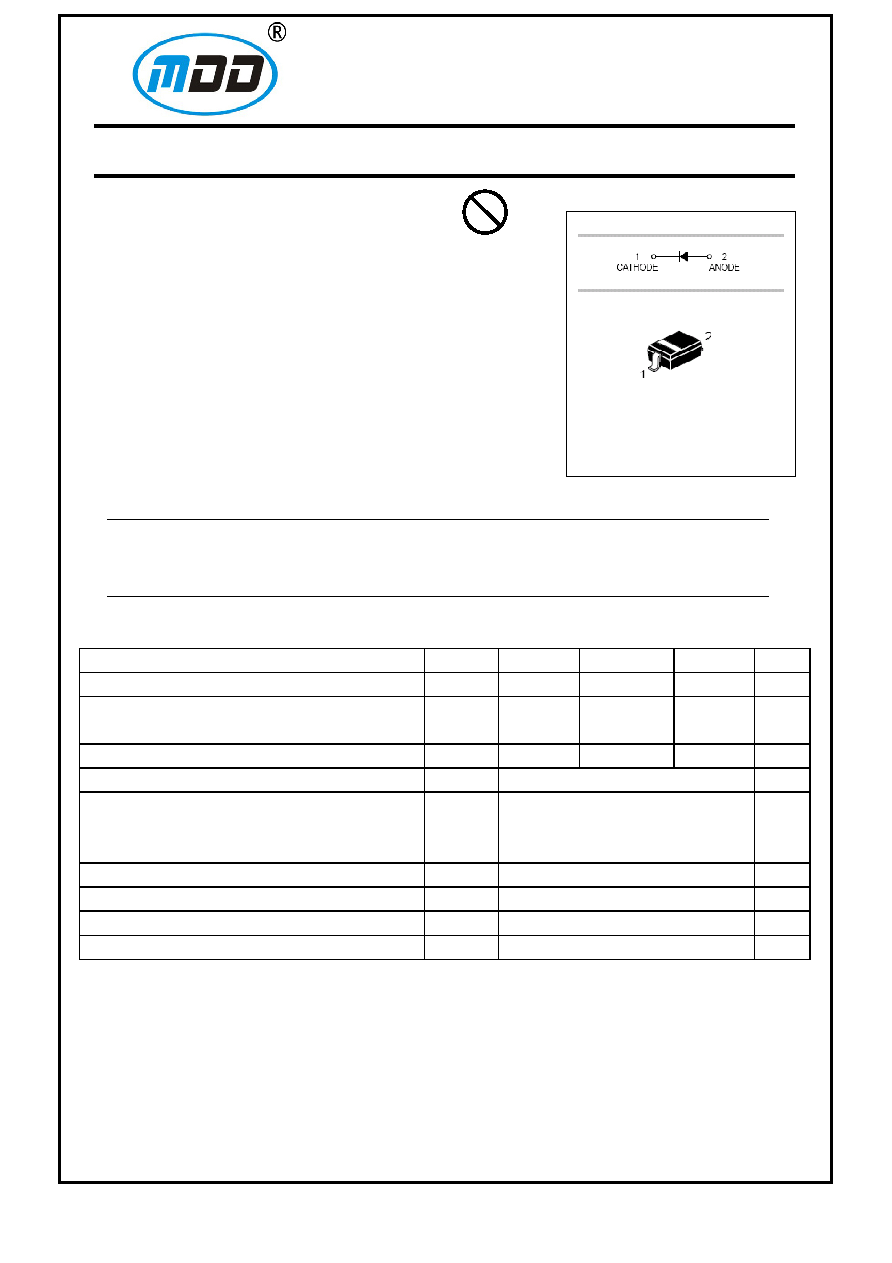

1 / 4 page

Silicon Epitaxial Planar Diode

BAV19WS/BAV20WS/BAV21WS

FEATURES

Fast Switching Speed

Surface Mount Package Ideally Suited For

Automatic Insertion

For General Purpose Switching Applications

High Conductance

APPLICATIONS

SOD-323

Surface mount fast switching diode

ORDERING INFORMATION

Type No.

Marking

Package Code

BAV19WS

A8

SOD-323

BAV20WS

T2

SOD-323

BAV21WS

T3

SOD-323

MAXIMUM RATING @ Ta=25℃ unless otherwise specified

Characteristic

Symbol BAV19WS BAV20WS

BAV21WS Unit

Repetitive Peak Reverse Voltage

VRRM

120

200

250

V

Working Peak Reverse Voltage

DC Reverse Voltage

VRWM

VR

100

150

200

V

RMS Reverse Voltage

VR(RMS)

71

106

141

V

Average Rectified Output Current

Io

200

mA

Non-Repetitive Peak Forward Surge Current

@t=1.0 μs

@t=1.0 s

IFSM

2.5

0.5

A

Repetitive Peak Forward Surge Current

IFRM

625

mA

Power Dissipation

Pd

200

mW

Thermal Resistance Junction to Ambient Air

RθJA

625

℃

/W

Operating and Storage Temperature Rage

Tj,TSTG

-65 to +150

℃

Pb

Lead-free

２０１４－０３　０１版

ｈｔｔｐ：／／ｗｗｗ．ｍｉｃｒｏｄｉｏｄｅ．ｃｏｍ
