GT10-16DP-R 데이터시트(PDF) 2 Page - Hirose Electric

부품명 GT10-16DP-R
상세설명  Subminiature ECU Interface Connectors
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  HIROSE [Hirose Electric]
홈페이지  http://www.hirose-connectors.com
Logo HIROSE - Hirose Electric

GT10-16DP-R 데이터시트(HTML) 2 Page - Hirose Electric

  GT10-16DP-R Datasheet HTML 1Page - Hirose Electric GT10-16DP-R Datasheet HTML 2Page - Hirose Electric GT10-16DP-R Datasheet HTML 3Page - Hirose Electric GT10-16DP-R Datasheet HTML 4Page - Hirose Electric GT10-16DP-R Datasheet HTML 5Page - Hirose Electric GT10-16DP-R Datasheet HTML 6Page - Hirose Electric GT10-16DP-R Datasheet HTML 7Page - Hirose Electric GT10-16DP-R Datasheet HTML 8Page - Hirose Electric
Zoom Inzoom in Zoom Outzoom out

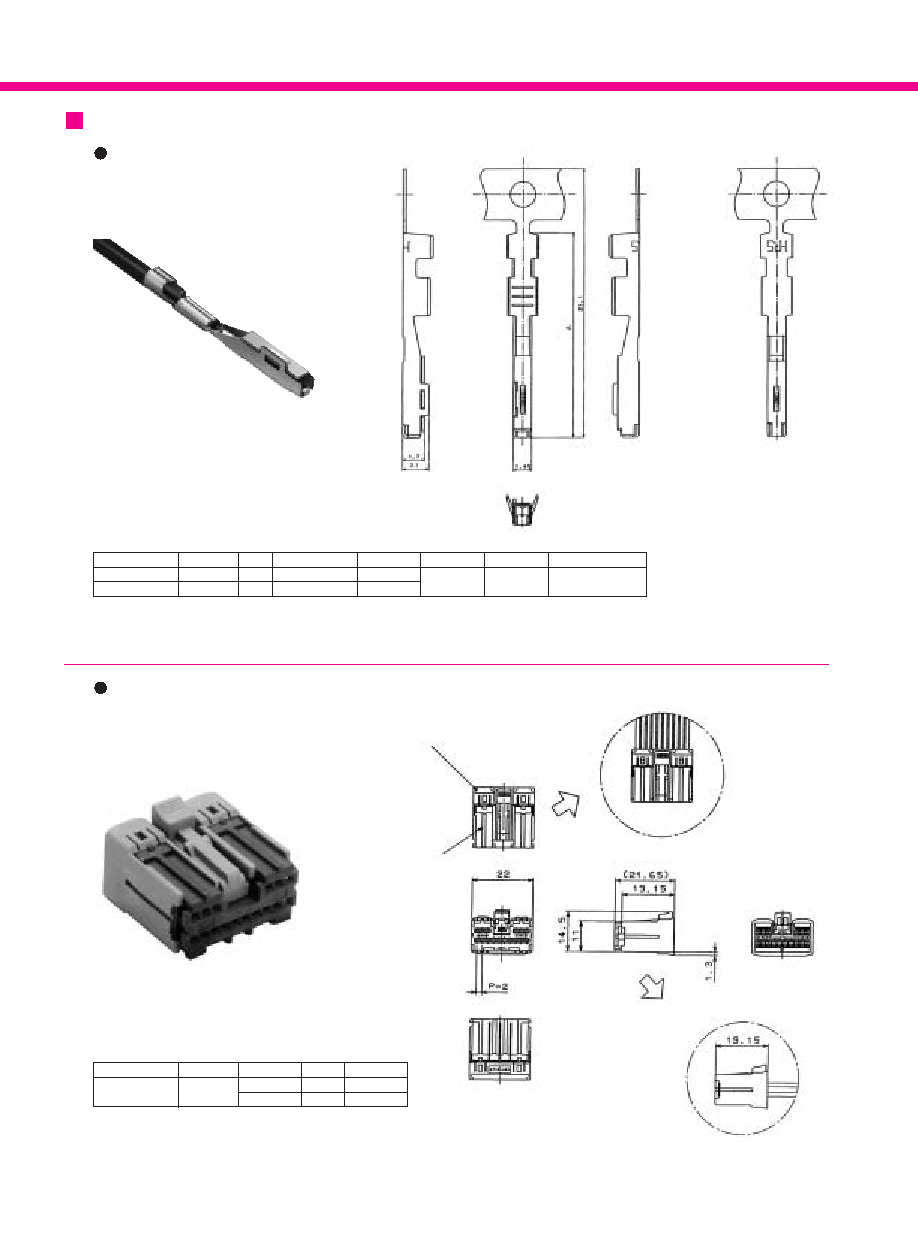

 2 / 8 page
background image
2
Part Number
A
Conductor Size (AWG) Outer Diameter
1.1 to 1.3
0.8 to 1.1
Material
Copper alloy
Finish
Tin plating
Packaging
10,000 pcs. per reel
16, 1
15, 1
#20 to 22
#24 to 28
GT10-2022SCF
GT10-2428SCF
CL No.
760-0003-0
760-0009-6
BDiagram of Retainer Fully Mounted
BDiagram of Retainer Fully Mounted
Part Number
CL NO.
Item
Material
Color
GT10-16DS-HU 760-0002-7
Housing
PBT
Light gray
Retainer
PBT
Dark gray
F Connectors
Center Terminals
Housing (with Retainer Provisionally Mounted)
Housing
Retainer
Note: This product has the retainer provisionally mounted to the housing.
Note: To use, fully mount the retainer at the specified position after the terminals
have been inserted.
