MMCX-R-PC 데이터시트(PDF) 3 Page - Hirose Electric

부품명 MMCX-R-PC
상세설명  Ultra Miniature Snap-on Coaxial Connector (PC Card Type 2 Mountable)
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  HIROSE [Hirose Electric]
홈페이지  http://www.hirose-connectors.com
Logo HIROSE - Hirose Electric

MMCX-R-PC 데이터시트(HTML) 3 Page - Hirose Electric

  MMCX-R-PC Datasheet HTML 1Page - Hirose Electric MMCX-R-PC Datasheet HTML 2Page - Hirose Electric MMCX-R-PC Datasheet HTML 3Page - Hirose Electric MMCX-R-PC Datasheet HTML 4Page - Hirose Electric MMCX-R-PC Datasheet HTML 5Page - Hirose Electric MMCX-R-PC Datasheet HTML 6Page - Hirose Electric MMCX-R-PC Datasheet HTML 7Page - Hirose Electric MMCX-R-PC Datasheet HTML 8Page - Hirose Electric
Zoom Inzoom in Zoom Outzoom out
 3 / 8 page
background image
B33
MMCX – [***] – [***]
sOrdering Information
e Applicable cable, PCB mounting style
178B/U : RG-178B/U (Ø1.8)
316/U
: R/G-316/U (Ø2.59 max)
FHSB
: Ø1.48 single shielded cable
PC
: PCB Through Hole type
SMT
: PCB Surface Mount type
qw
e
B

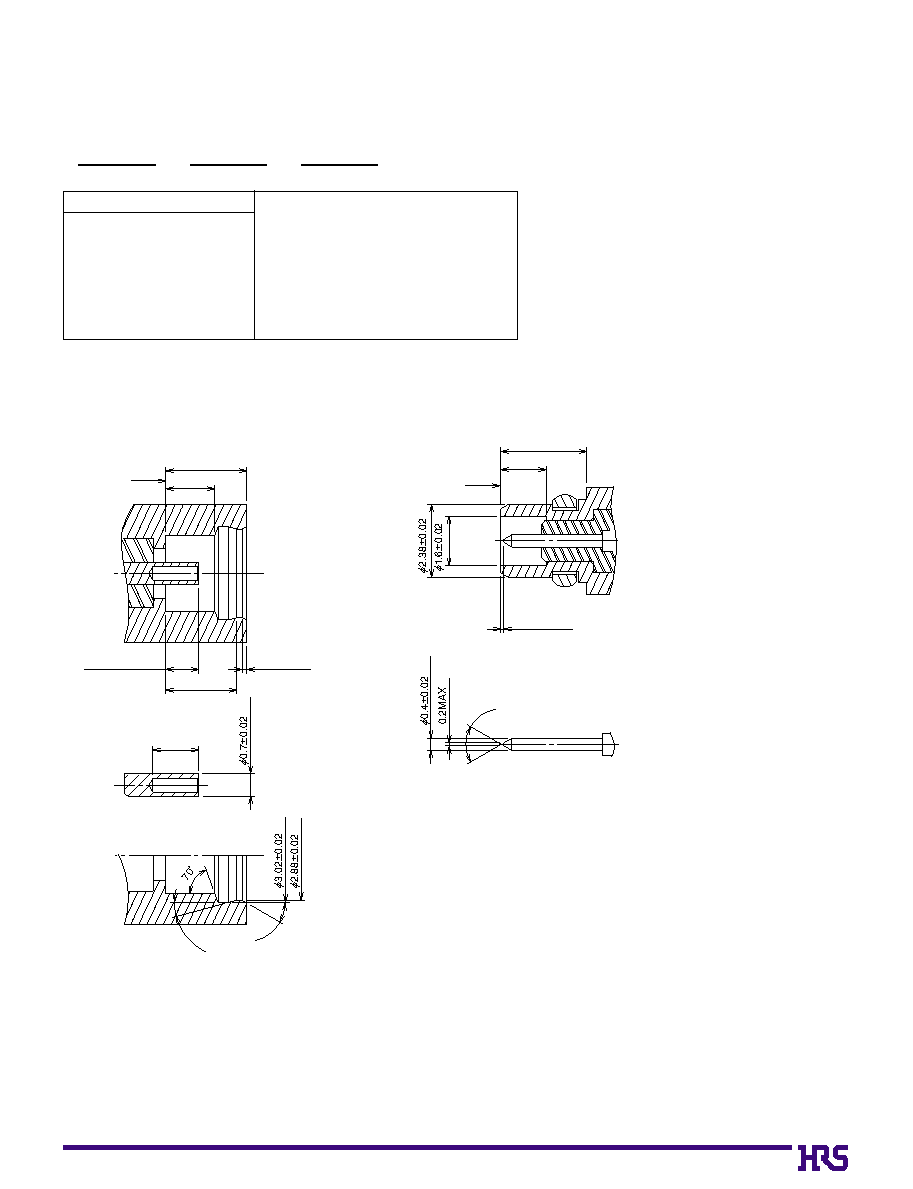

Interface Dimensions
1.6±0.03
2.59MIN
REF.PLANE
1.05±0.15
2.32±0.02
0.23MAX
15
˚
30
˚
1.4MIN
1.48±0.02
2.69MIN
REF.PLANE
0.1
+0.15
–0.1
60˚
[Jack]
[Plug]
q Series name
: MMCX
w Connector type
P : Straight plug
LP : Right Angle plug
J : Straight jack
R : Receptacle
LR : Right Angle receptacle
