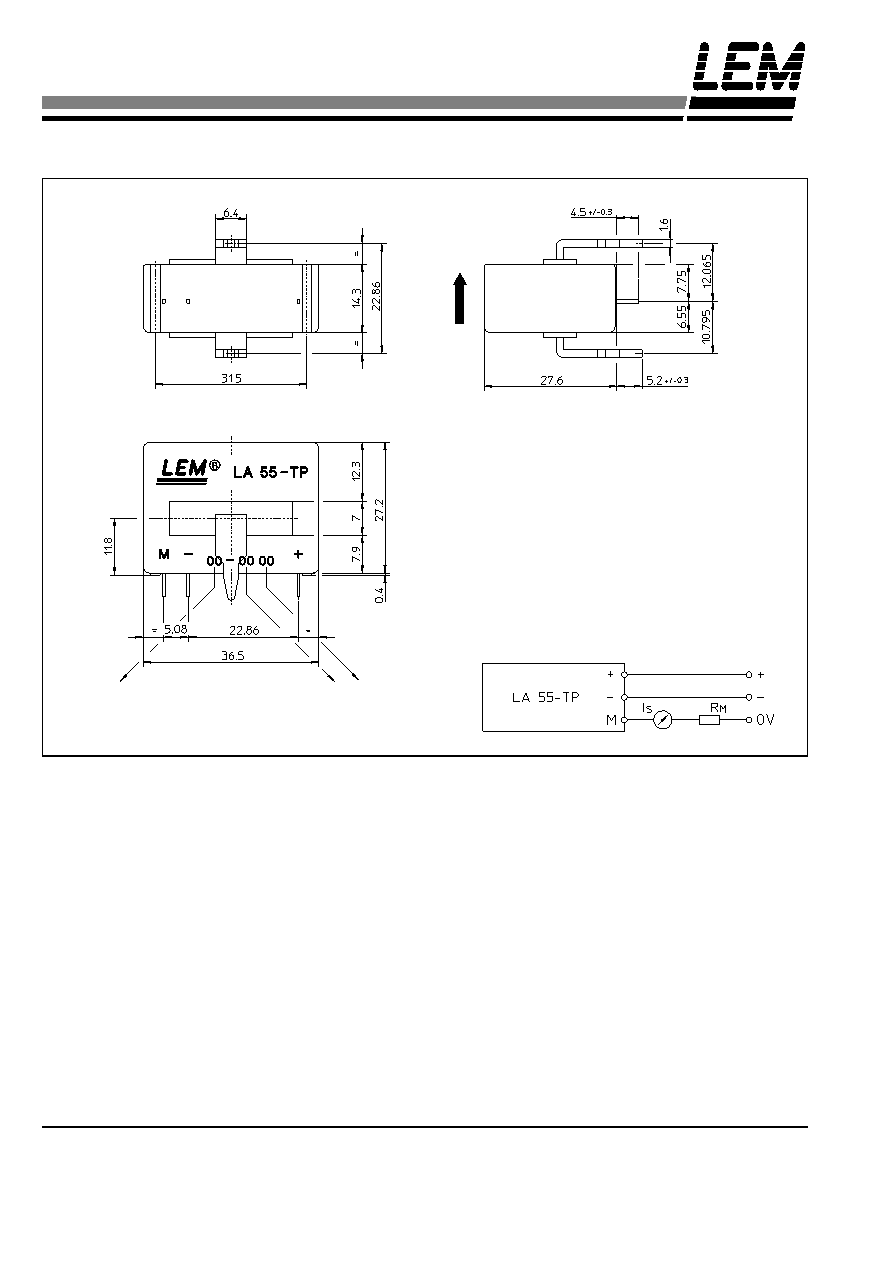

2 / 2 page  Secondary terminals Terminal + : supply voltage + 12 .. 15 V Terminal - : supply voltage - 12 .. 15 V Terminal M : measure Connection Remarks •I S is positive when IP flows in the direction of the arrow. •Temperature of the primary conductor should not exceed 90°C. •This is a standard model. For different versions (supply voltages, turns ratios, unidirectional measurements...), please contact us. Mechanical characteristics •General tolerance ± 0.2 mm •Fastening & connection of primary bus bar 6.4 x 1.6 mm Recommended PCB hole 3.8 mm •Fastening & connection of secondary 3 pins 0.63 x 0.56 mm Recommended PCB hole 0.9 mm Dimensions LA 55-TP (in mm. 1 mm = 0.0394 inch) Bottom view Front view Left view LEM reserves the right to carry out modifications on its transducers, in order to improve them, without previous notice. Standard 00 Year Week or N° SP.. |
|
|
