Datasheet of 2.00 inch Single Digit 16 Segment LED Display

LD20011C/D Series – 2.00 inch Single Digit 16 Segment LED Display

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Features

50.80 mm (2.00 inch) digit high

Excellent digit appearance

Wide viewing angle

Range of emitted colors

I.C. compatible

Low power consumption

White segment, black face

Available options

Alternative emitting luminosity:

Standard or high brightness version

Alternative emitted color

Alternative face and segment color

Alternative font

Both CA and CC versions are available

Cropped terminal pins

RoHS compliant

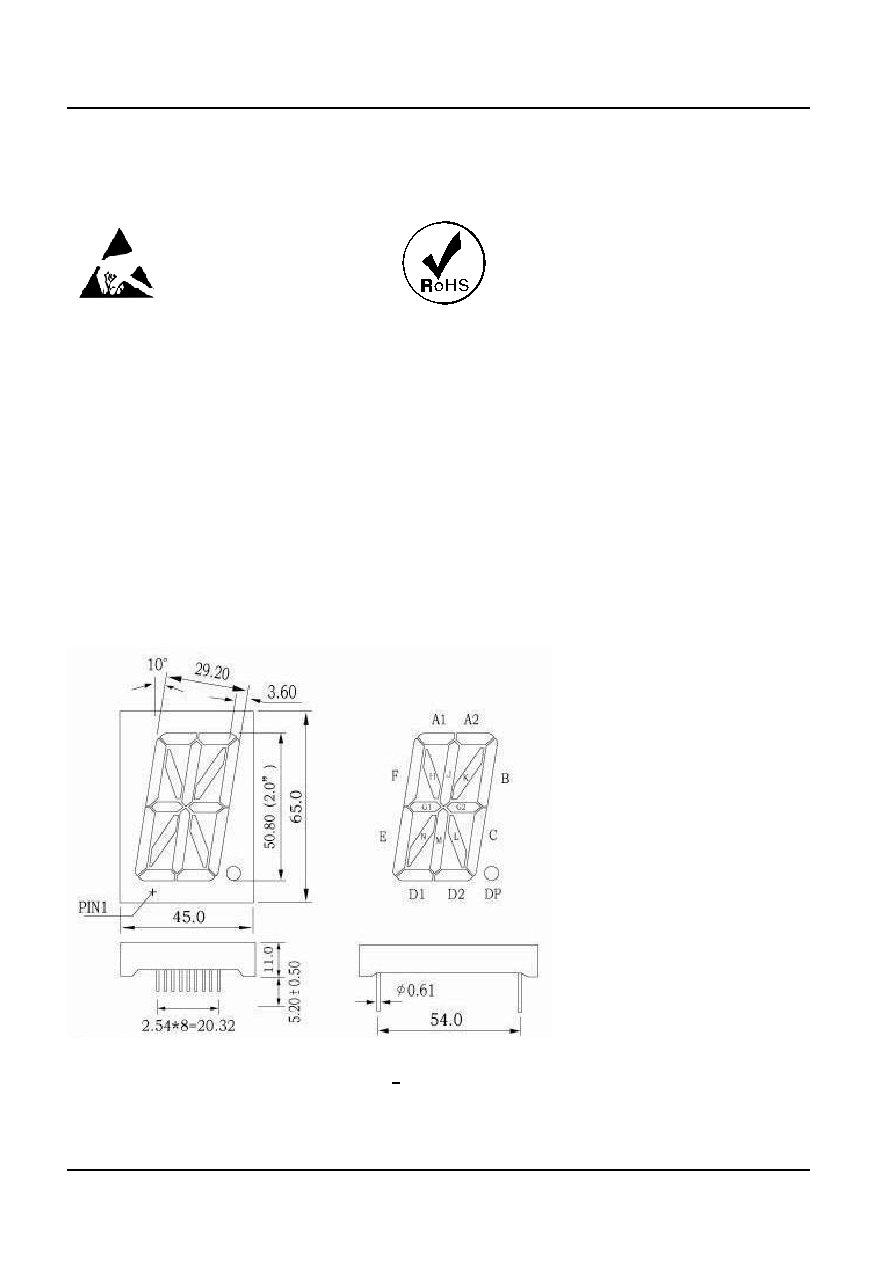

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.

2. Specifications are subject to change without notice.

3. The gap between the reflector and PCB shall not exceed 0.25mm.
