CTLM43NS20-R3
N-Channel Enhancement MOSFET

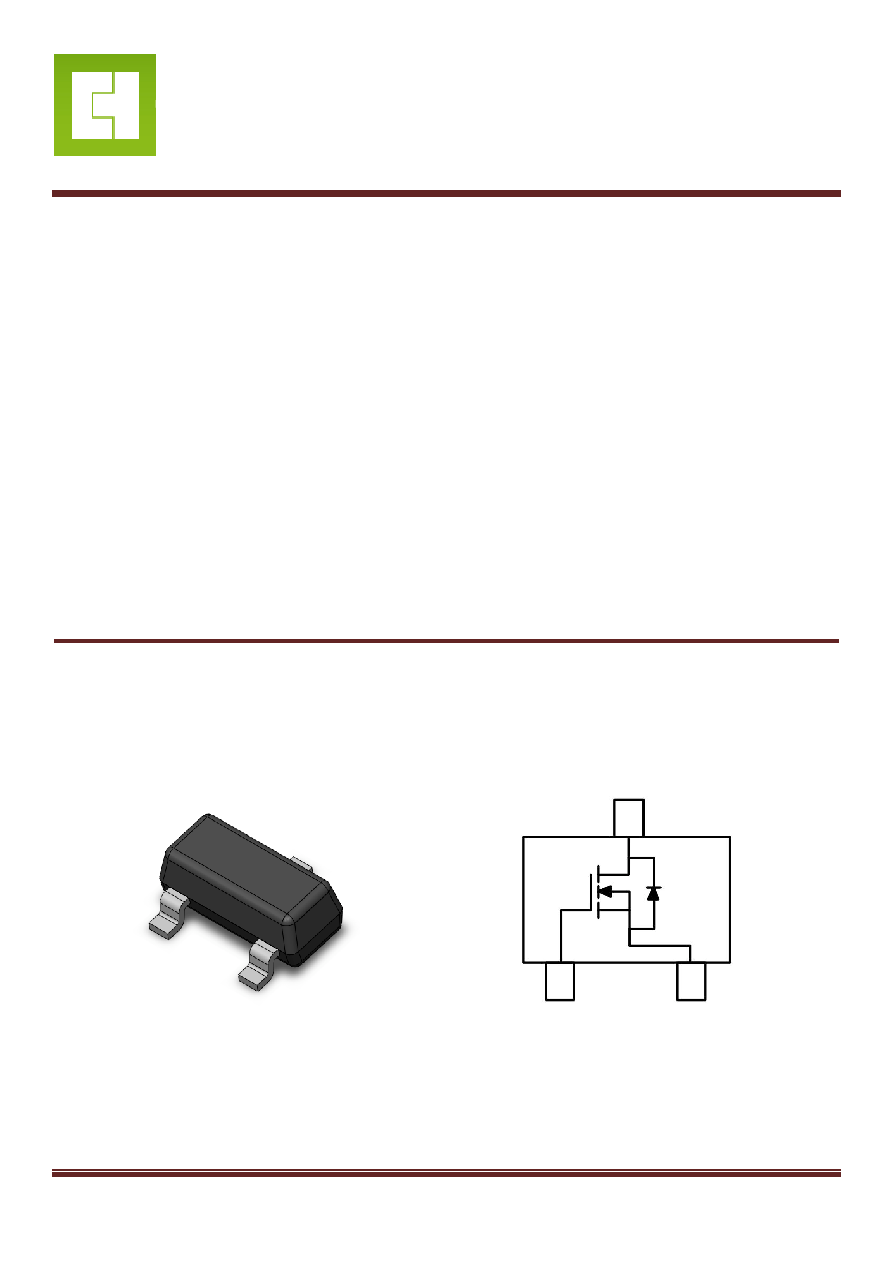

Package Outline
Schematic
Features
••••
Drain-Source Breakdown Voltage VDSS 200 V
••••
Drain-Source On-Resistance
RDS(ON) 3.6
Ω, at VGS= 10V, ID= 430mA
RDS(ON) 3.7
Ω, at VGS= 4.5V, ID= 425mA
••••
Continuous Drain Current at TA=25
℃ID =0.43A
••••
Advanced high cell density Trench Technology
••••
RoHS Compliance & Halogen Free
Applications
••••
Power Management
••••
LCD Display inverter
••••
DC/DC Converter
••••
Load Switch
Description
The CTLM43NS20-R3 is the N-Channel logic
enhancement mode power field effect transistors are
produced using high cell density, DMOS trench
technology. This high density process is especially
tailored to minimize on-state resistance.
Gate
Source
Drain
Gate
Drain
Source
