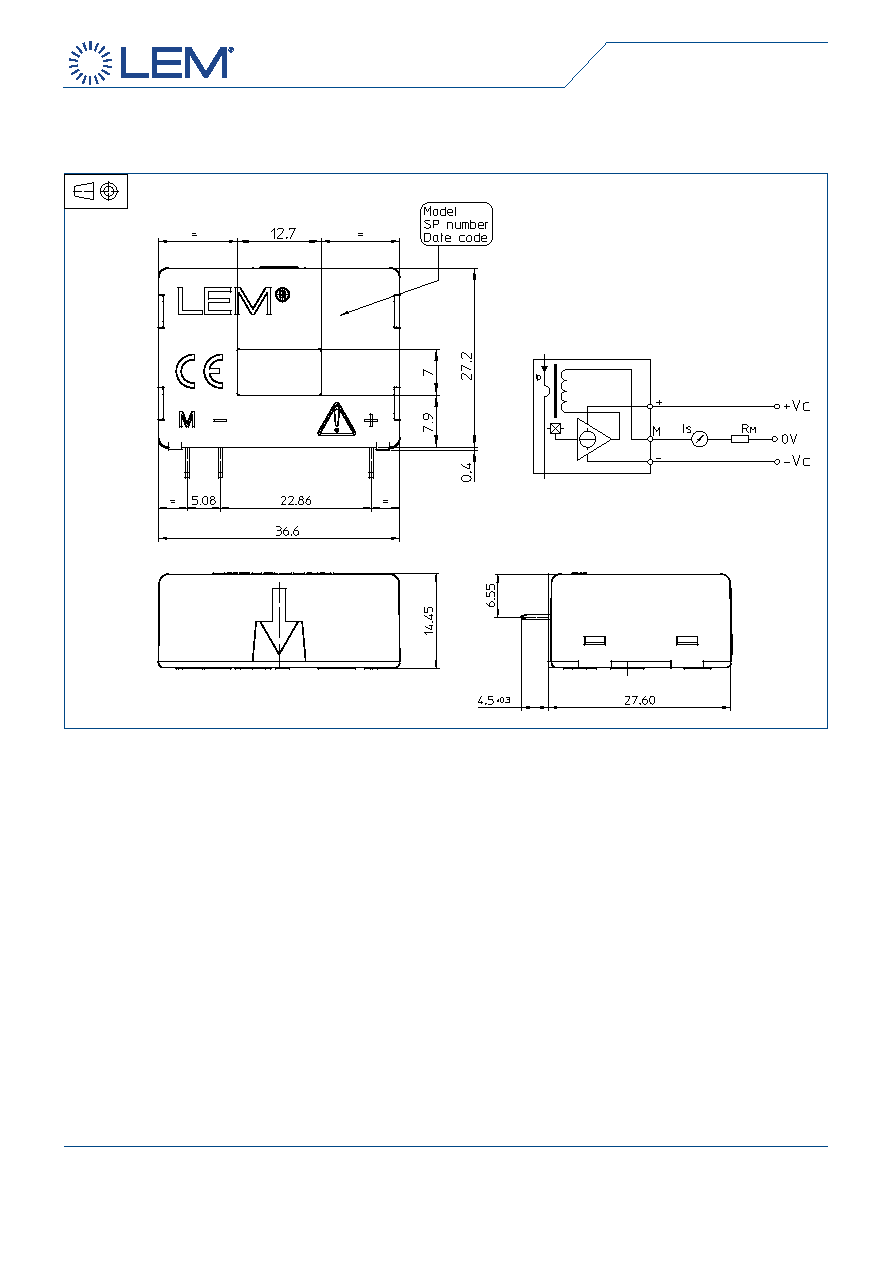

Connection

Top view

Front view

Left view

Mechanical characteristics

General tolerance

± 0.2 mm

●

Primary through-hole

12.7 x 7 mm

●

Fastening & connection of secondary 3 pins

●

0.63 x 0.56 mm

Recommended PCB hole

0.9 mm

●

Remarks

I

●

Temperature of the primary conductor should not exceed

●

90°C.

Dynamic performances (di/dt and response time) are best

●

with a single bar completely filling the primary hole.

In order to achieve the best magnetic coupling, the

●

primary windings have to be wound over the top edge of

the device.

This is a standard model. For different versions (supply

●

voltages, turns ratios, unidirectional measurements...),

please contact us.
