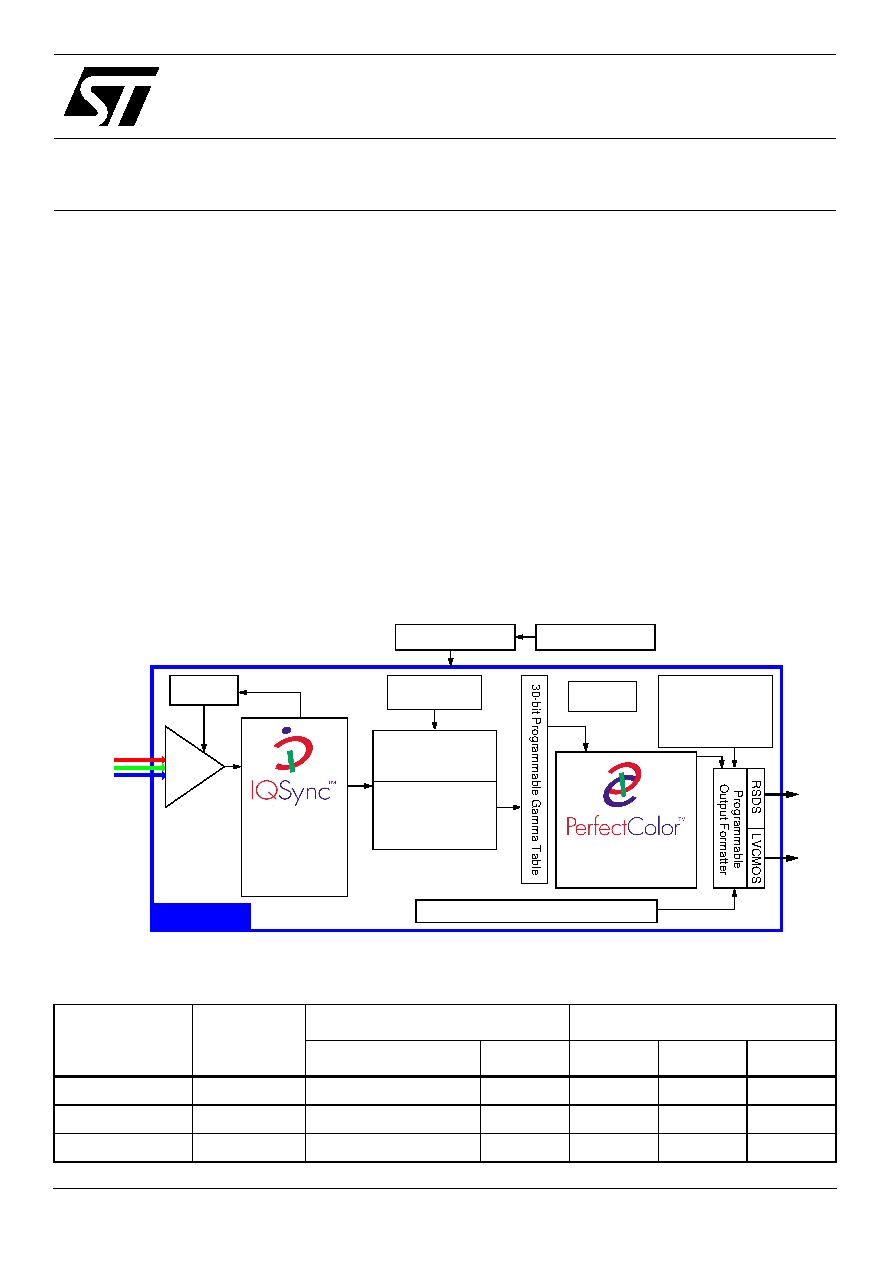

1 / 89 page  TARGET SPECIFICATION ADE3700 Analog LCD Display Engine for XGA and SXGA Resolutions ® This is preliminary information on a new product forseen to be developed. Details are subject to change without notice. October 2003 1/89 Feature Overview s Programmable Context Sensitive™ Scaling s High-quality Up-scaling and Down-scaling s Integrated 9-bit ADC/PLL s IQSync™ AutoSetup s Integrated programmable Timing Controller s Integrated Pattern Generator s Perfect Picture™ Technology s sRGB 3D Color Warp s Integrated OSD s Advanced EMI reduction features s Framelock operation with Safety Mode™ s Serial I²C interface s Low power 0.18 µm process technology General Description ADE3700 devices are a family of highly-integrated display engine ICs, enabling the most advanced, flexible, and cost-effective system-on-chip solutions for analog-only input LCD display applications. The ADE3700 covers the full range of XGA and SXGA analog-only applications including Smart Panel designs. The ADE3700 family is pin-to-pin compatible and comes in a low-cost, 128-pin LQFP package. ADE3700 devices use the same software platform and are backward-compatible with the previous generation of ADE3xxx Scaling Engines. LCD Scaler Product Selector Product Package Output Format Support Input Interface Support Resolution TCON Analog DVI YUV ADE3700X 128 LQFP Up to XGA 75 Hz Yes ADE3700XT 128 LQFP Up to XGA 75 Hz Yes Yes ADE3700SX 128 LQFP Up to SXGA 75 Hz Yes Line-Lock PLL Fast and accurate • Phase • Position •Level •Clock sRGB 3D Color Warp Temporal & Spatial Dithering Interlace Analog Video LCD Panel Microcontroller Firmware ROM On-Screen Display Engine Pattern Generator Programmable Timing Controller (TCON) EMI Reduction • Per Pin Delay • Slew Rate Control • Spread Spectrum • Data Inversion ADE 3700 I²C adjustments of: IQ Scaling ™ RGB Signals Triple 9-bit ADC To TFT Engine with Context Sensitive ™ Filtering Mode Detection |
