CDH53
Description
• Ferrite drum core construction.
• Magnetically unshielded.
• L
×W×H: 6.0×5.4×3.2 mm Max.
• Product weight: 0.18g(Ref.)
• Moisture Sensitivity Level: 1
• RoHS compliance.
• Halogen Free available.
Environmental Data
• Operating temperature range: -40
℃～+100℃
(including coil’s self temperature rise)
• Storage temperature range: -40
℃～+100℃
• Solder reflow temperature: 260
℃ peak.
Packaging
• Carrier tape and reel packaging.
• 13”diameter reel
• 1500pcs per reel
Applications
• Ideally used in PDA,DVD,HDD, DVC, Game
machine, Notebook PC, etc as DC-DC
converter
Halogen
Free
RoHS

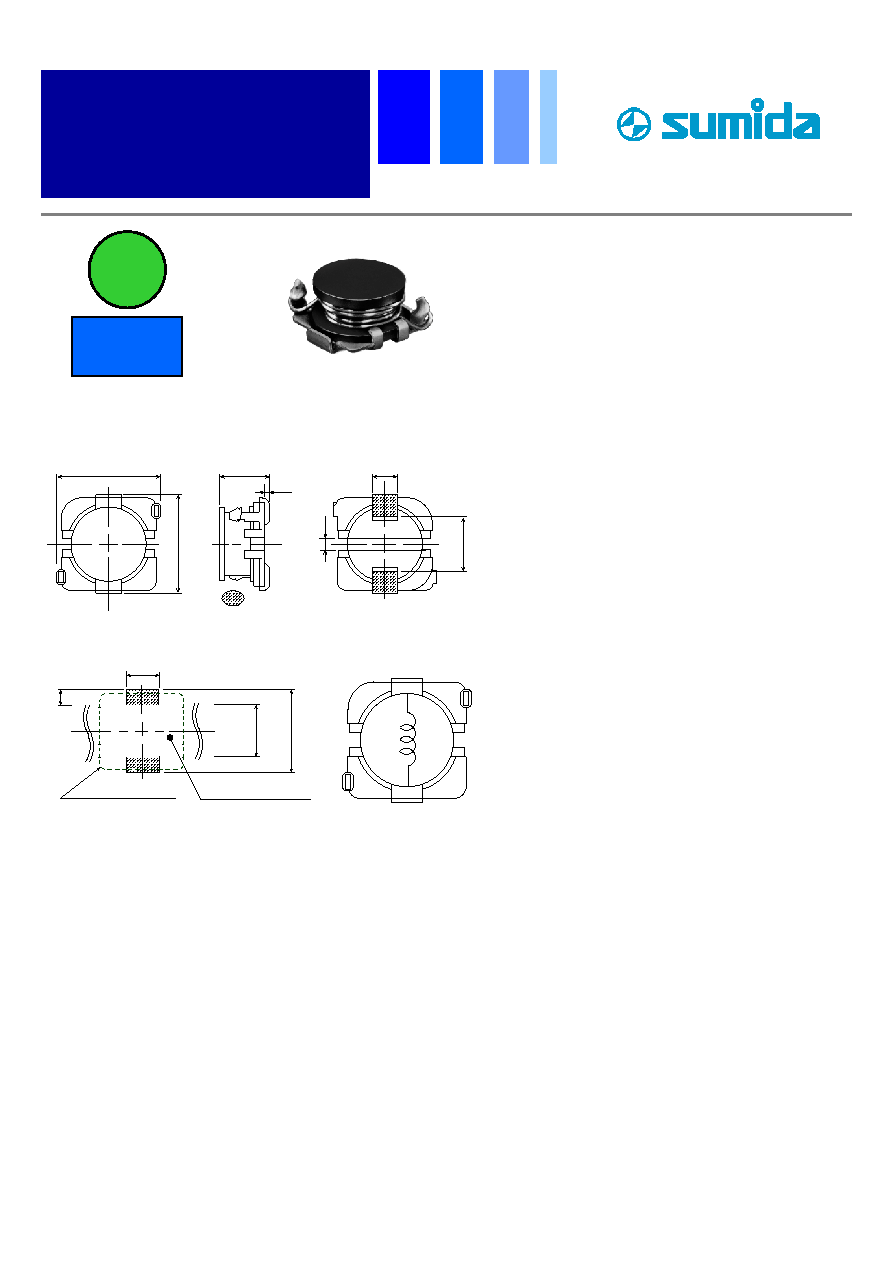

Dimension - [mm]
Land pattern and Schematics - [mm]
ELECTRODE TERMINAL
MAX.6.0
MAX.3.2
0.2
1.8
5.
2±
0.
2
1.
0
2.
9±
0.
2
2.2
DIMENSION OF CDH53
2.
5
6.
0
1.
75
PART OF SILK SCREEN
