Technical Data 1043

Effective May 2016

Eaton.com/bussmannseries

Carton quantity and weight (250 vac)*

Amps

Carton

qty.

1–30

10

40–60

10

70–100

5

110–200

1

225–400

1

450–600

1

*Contact Eaton’s Bussmann Division for DC ratings.

Fuse amps

1-pole

2-pole

3-pole

0-30

HM25030-1

HM25030-2

HM25030-3

RM25030-1

RM25030-2

RM25030-3

35-60

HM25060-1

HM25060-2

HM25060-3

RM25060-1

RM25060-2

RM25060-3

70-100

RM25100-1CR

RM25100-2CR

RM25100-3CR

110-200

RM25200-1CR

RM25200-1CR

RM25200-1CR

225-400

RM25400-1CR

RM25400-1CR

RM25400-1CR

450-600

RM25600-1CR

RM25600-1CR

RM25600-1CR

For additional information on 250 volt blocks, see data sheet

No. 10289 (RM250) and (HM250) and product brochure

No. 3192 (RM style).

Recommended fuse blocks

Equipment

fuse clips

Desired fuse

(case) size

Catalog symbol

(pairs)

60 A

30 A

NO.263-R

100 A

30 A

NO.213-R

60 A

NO.216-R

200 A

60 A

NO.226-R

100 A

NO.2621-R

400 A

100 A

NO.2641-R

200 A

NO.242-R

600 A

100 A

NO.2661-R

200 A

NO.2662-R

400 A

† Single reducer only (pair not required).

For additional information on Class R fuse reducers, see data

sheet No. 1118.

Fuse reducers for Class R fuses - 250 V

300

100

10

1

0.1

0.01

Amp

rating

RMS symmetrical current in amps

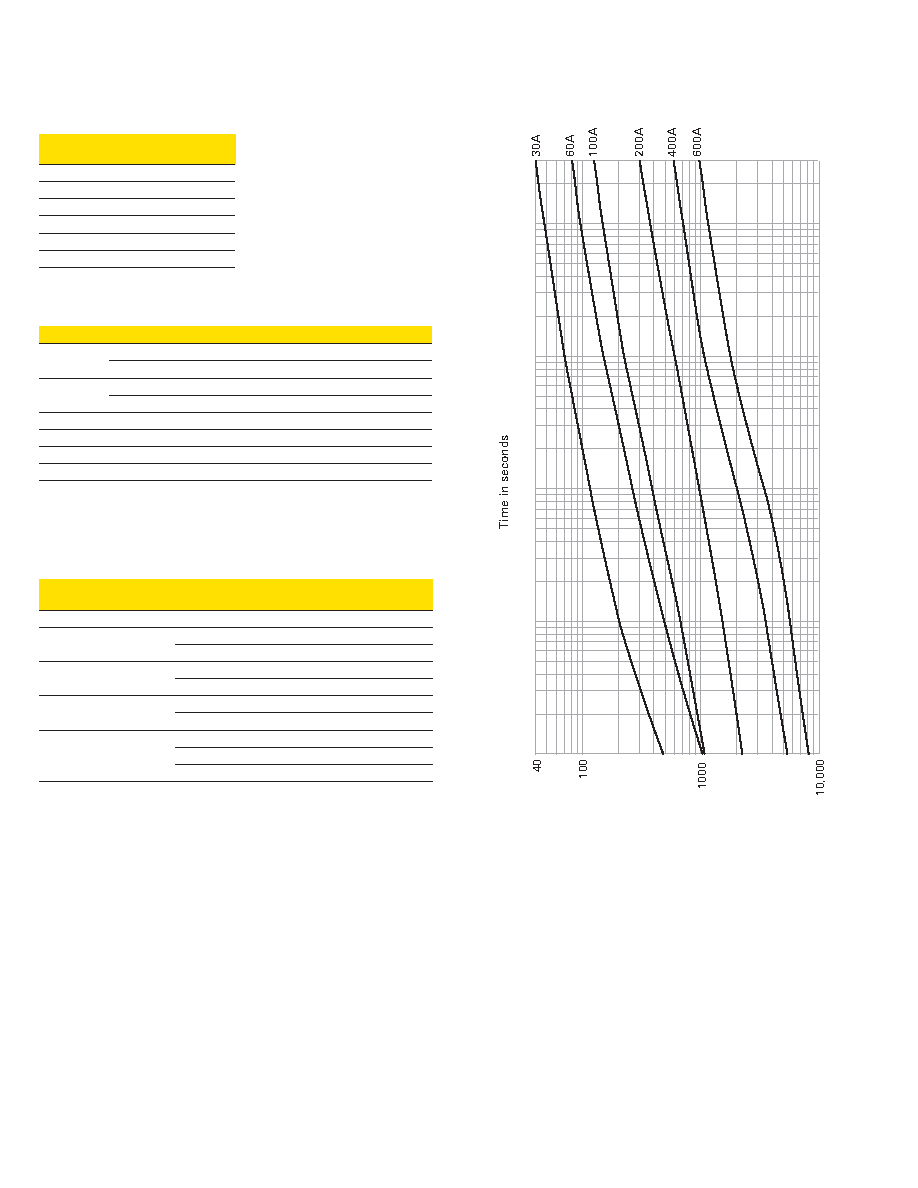

Time-current curves — average melt
