LED Power

ZQF60(R) SERIES

60 Watts

http://www.archcorp.com.tw

TEL: +886-2-26989508

FAX: +886-2-26981319

-2-

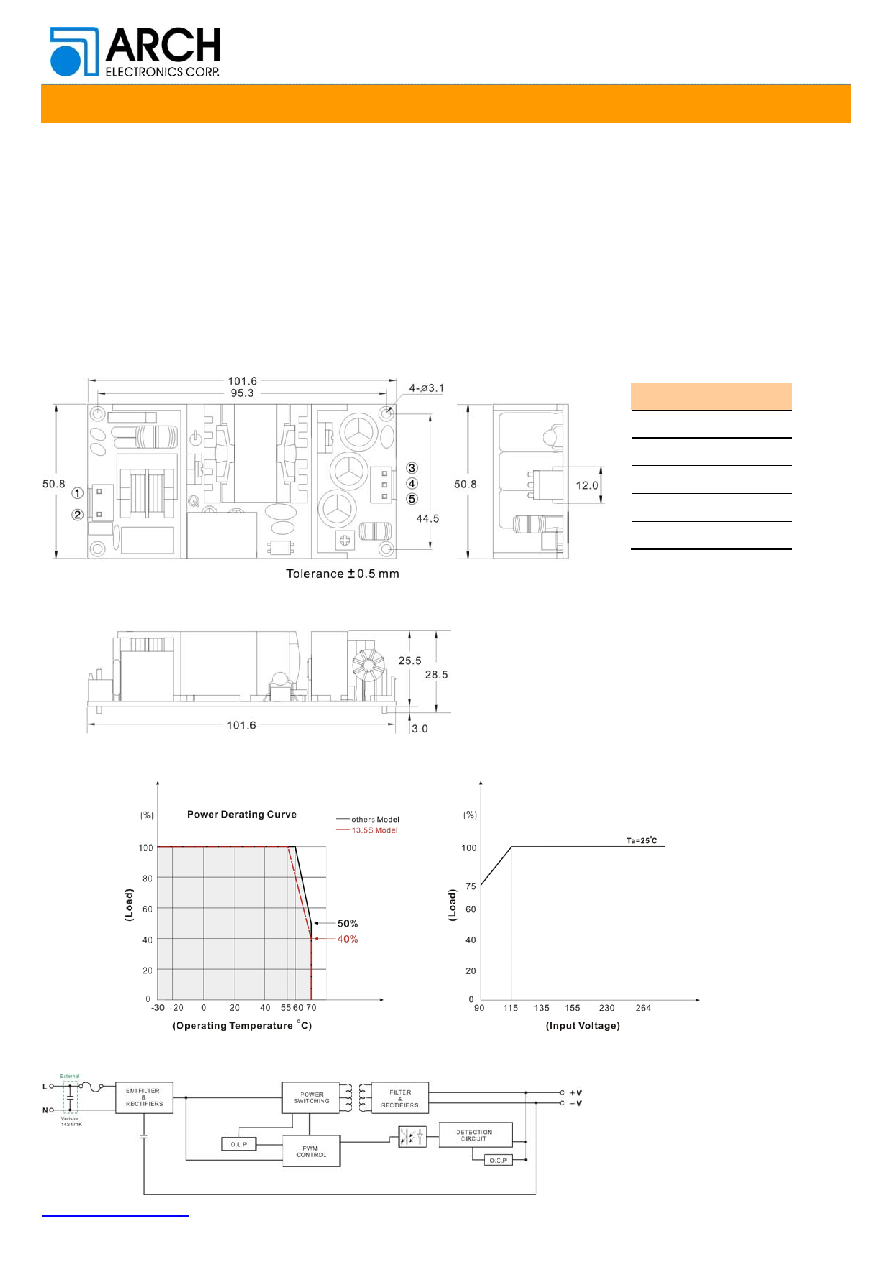

MECHANICAL DIMENSION

( Top View )

DERATING

BLOCK DIAGRAM

PIN#

Single

1

AC IN (N)

2

AC IN (L)

3

NC

4

+DC OUT

5

-DC OUT

Note:

1. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor.

2. Please check the derating curve for more details.

3. Input Voltage=115 or 230 VAC

。This is the suitable operation region for LED related application.but please reconfirm special electrical requirements

for some specific system design.

4. Please contact us for more information.

5. It's recommended to add Varistor 14S471K at L / N input side in parallel.

6. This driver is suggested for LED application only.

7. Direct connection to LEDs is suggested. Connecting additional drivers would not be appropriate.
