SPEC NO: DSAO0995

REV NO: V.1B

DATE: JAN/07/2015

PAGE: 2 OF 6

APPROVED: WYNEC

CHECKED: Allen Liu

DRAWN: P.Cheng

ERP: 1201008464

Handling Precautions

Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible. Although its characteristic

significantly reduces thermal stress, it is more susceptible to damage by external mechanical force.

As a result, special handling precautions need to be observed during assembly using silicone encapsulated

LED products. Failure to comply might lead to damage and premature failure of the LED.

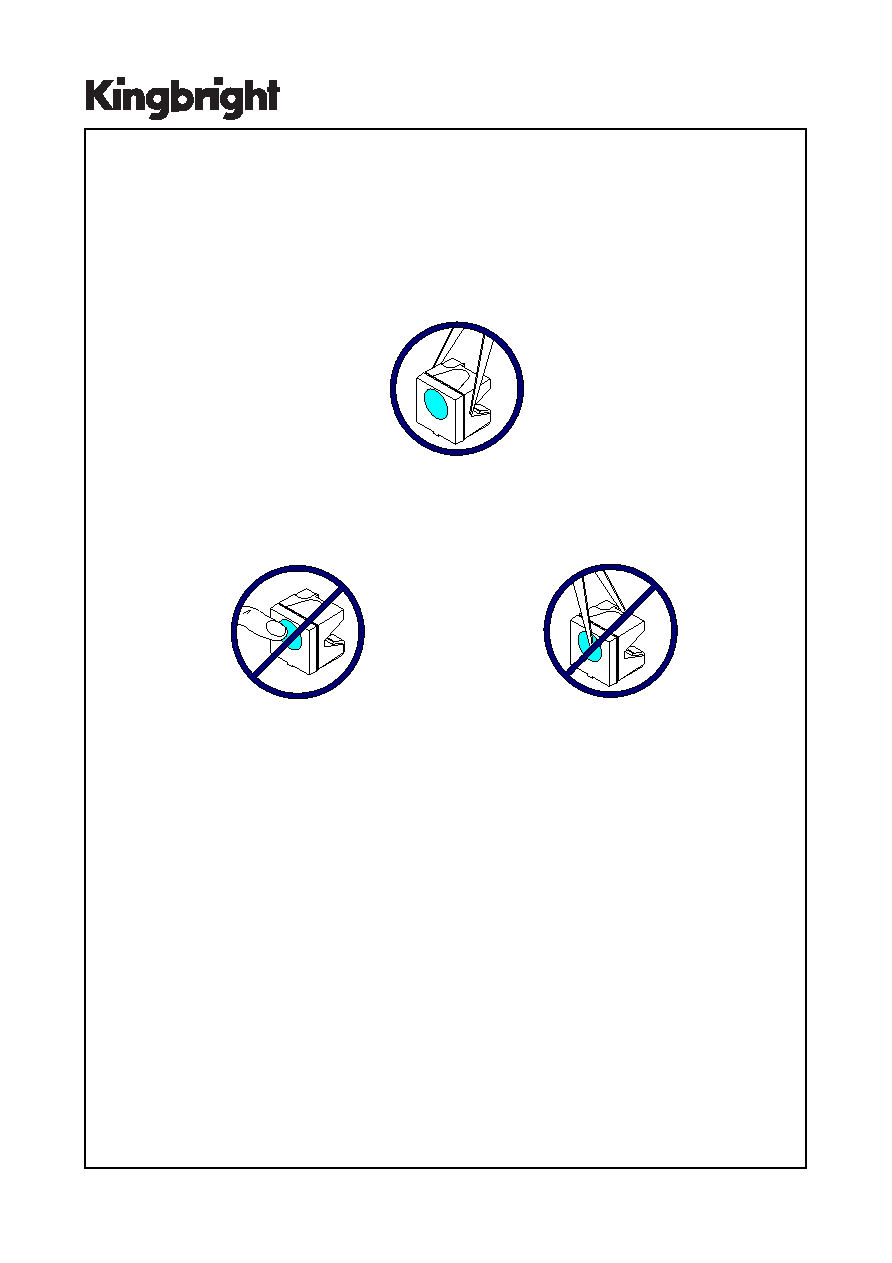

1. Handle the component along the side surfaces by using forceps or appropriate tools.

2. Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.

leadframe. Special care should be taken if an LED with silicone encapsulation is to be used near such substances.
