ASMCI-0805

RoHS

Compliant

SMD Multilayer Chip Inductor for Choke

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

CERTIFIED

ISO 9001:2008

30332Esperanza, Rancho Santa Margarita, California 9268

tel 949-546-8000| fax 949-546-8001 | www.abracon.com

Revised: 02.08.13

Visit

www.abracon.com for Terms & Conditions of Sale

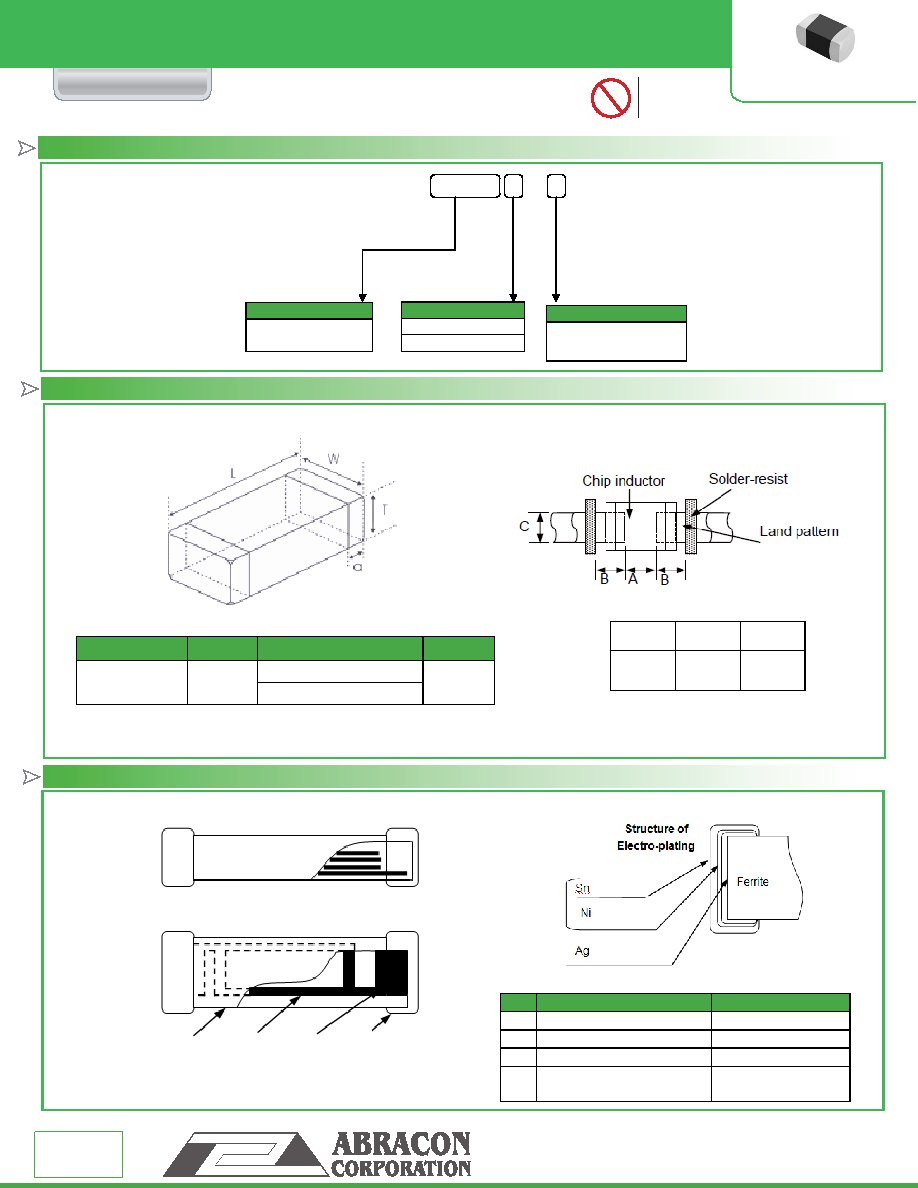

PART IDENTIFICATIONS:

OUTLINE DRAWING:

Dimension: mm [inch]

Dimension: mm

Part Name

Material

Base Material

Internal Conductor

Pull out Electrode

Terminal Electrode

Ag (Inner layer)

Ni-Sn (Outer layer)

Side View

Top View

MATERIALS:

2.0 x 1.25 x 0.85mm

/2.0 x 1.25 x 1.25mm

ASMCI-0805 -

Inductance Code

Please refer to the

table above

Tolerance

M: ±20%

N: ±30%

Packaging

T: Tape and Reel

(4kpcs / reel for 0.1~4.7µH;

3kpcs / reel for 10µH)

2.0 (+0.3, -0.1)

[0.079 (+0.012, -0.004)]

1.25±0.2

[0.049±0.008]

0.85±0.2[0.033±0.008] for 0.1~4.7µH

0.5±0.3

[0.020±0.012]

1.25±0.2[0.049±0.008] for 10µH

0.80~1.20

0.90~1.60

Ferrite
