3 / 4 page

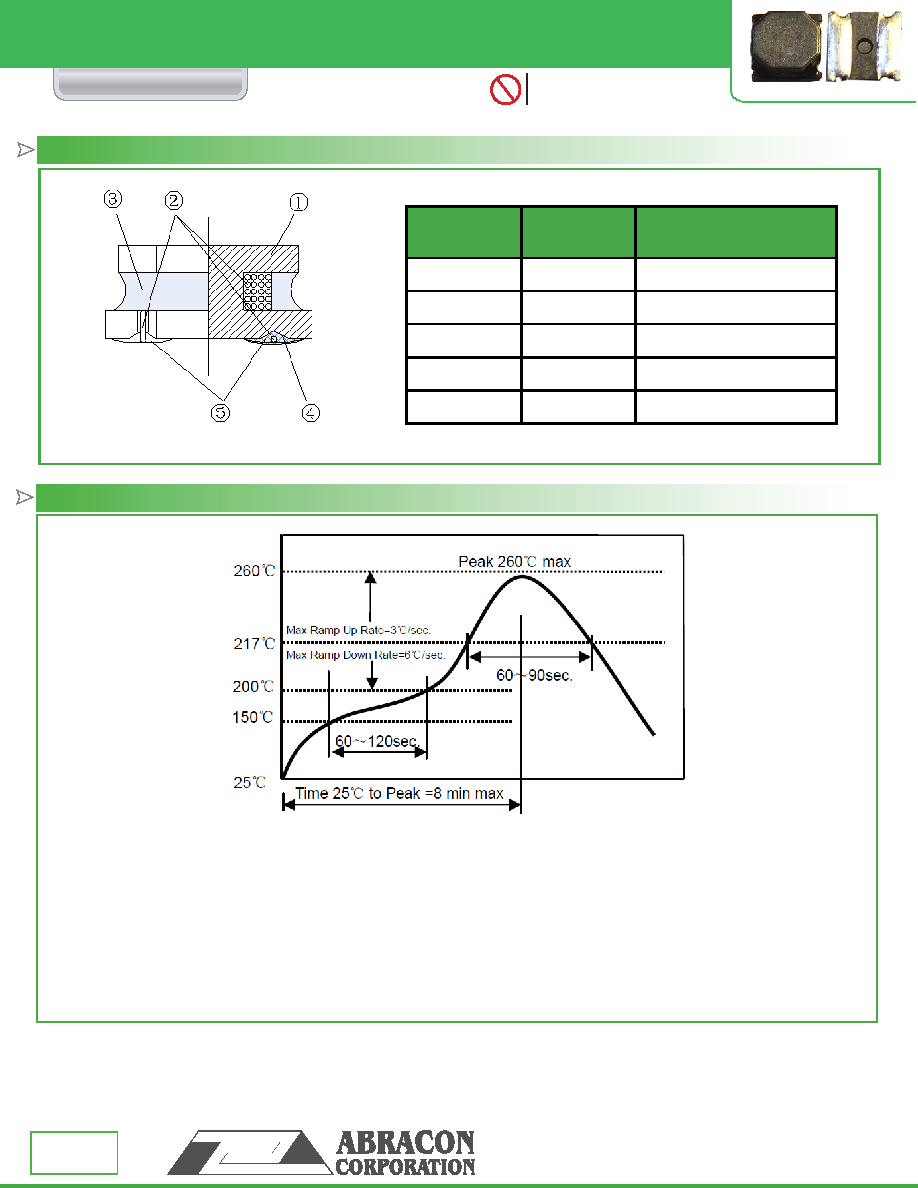

Components

Material

Ferrite Core

Ni-Zn Ferrite

Wire

Polyurethane System enameled copper

wire

Magnetic Glue

Epoxy resin and magnetic powder

Plating Electrodes

Plating: Ag/Ni/Sn

Outer Electrodes

Top surface solder coating:

Sn96.5%/Ag3%/Cu0.5%

MATERIAL:

OUTLINE DIMENSION:

ASPI-2012 series

2.0 x 2.0 x 1.2 mm

ABRACON IS

ISO9001:2008

CERTIFIED

Wire Wound Magnetically Shielded SMD Power Inductor

30332 Esperanza, Rancho Santa Margarita, California92688

tel 949-546-8000 | fax 949-546-8001| www.abracon.com

Revised: 12.18.13

Visit www.abracon.com for Terms & Conditions of Sale

ASPI-2012

RoHS/RoHS II Compliant

REFLOW PROFILE:

∆ Preheat condition: 150 ~200˚C /60~120sec.

∆ Allowed time above 217˚C: 60~90sec.

∆ Max temp: 260˚C

∆ Max time at max temp: 5sec.

∆ Solder paste: Sn/3.0Ag/0.5Cu

∆ Allowed Reflow time: 2x max
