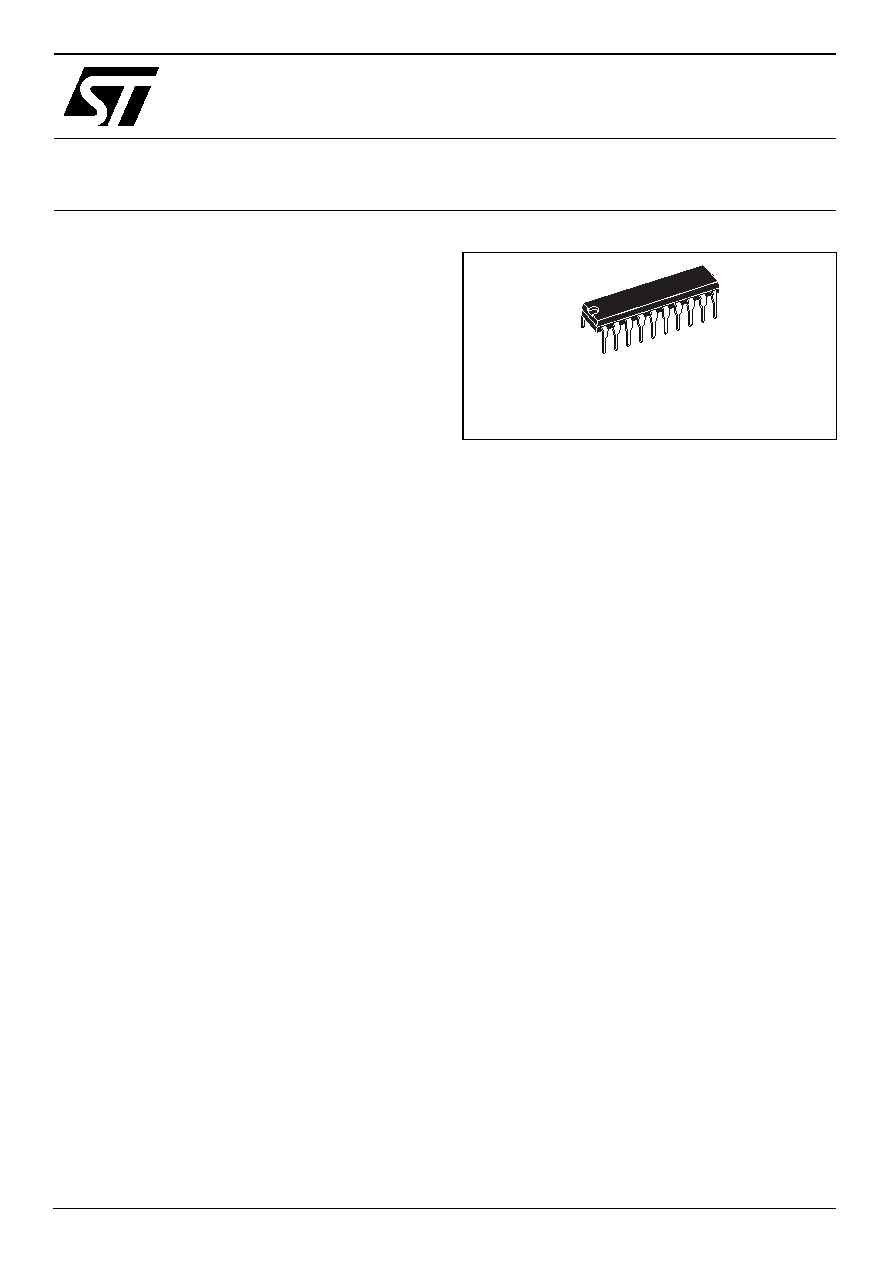

1 / 37 page  September 2003 Version 4.1 1/37 STV9211 150 MHz PIXEL VIDEO CONTROLLER FOR MONITORS IN DC-COUPLING MODE ® FEATURES q 150 MHz Pixel Rate q 2.7 ns Rise and Fall Time q I2C Bus Controlled q Support DC Coupling Application only q Brightness Selection (after or before Drive) q Grey Scale Tracking Versus Brightness q InfraBlack Range Selection 1.3 or 1.8V (i.e: 26 or 36V in kit with STV95xx amplifier) q InfraBlack Offset Selection 0.4 to 2.2V (i.e: 115 to 80V in kit with STV95xx amplifiers) q OSD Mixing q Beam Current Attenuation (ABL) q Pedestral Clamping on Output Stage q Possibility of Light or Dark Grey OSD Background q OSD Contrast Control q Input Black Level Clamping with Built-in Clamping Pulse q 5 V to 8 V Power Supply q Perfectly matched with the STV95xx ST Amplifier Family q Preamplifier Control (bandwidth and stand-by) q Amplifier Control (bandwidth and stand-by), only applicable to amplifiers with CTL pin or STDBY pins. DESCRIPTION The STV9211 is an I2C Bus controlled RGB pre- amplifier designed for Monitor applications, able to mix the RGB signals coming from any OSD device. The usual Contrast, Brightness, Drive and Cut-Off (InfraBlack) Controls are provided. In addition, it includes the following features: - High resolution cut-off (InfraBlack) adjustment, - OSD contrast, - Bandwidth and stand-by control, - Brightness before/after Drive Selection. The RGB incoming signals are amplified and shaped to drive in DC coupling the video amplifier without intermediate follower stages. One of the main advantages of ST devices is their ability to sink and source currents. These driving capabilities combined with an original output stage structure suppress any static current on the output pins and therefore reduce dramatically the power dissipation of the device. Extensive integration combined with high performance and advanced features make the STV9211 one of the best choice for any CRT monitor. Perfectly matched with the ST video amplifiers STV95xx, they offer a complete solution for high performance and cost-optimized Video Board Application. DIP20 (Plastic Package) ORDER CODE: STV9211 |
