XLamp® mK-R LEDs
thERMAL DEsiGn
The maximum forward current is determined by the thermal resistance between the LeD junction and ambient. It is crucial for the end
product to be designed in a manner that minimizes the thermal resistance from the solder point to ambient in order to optimize lamp life
and optical characteristics.

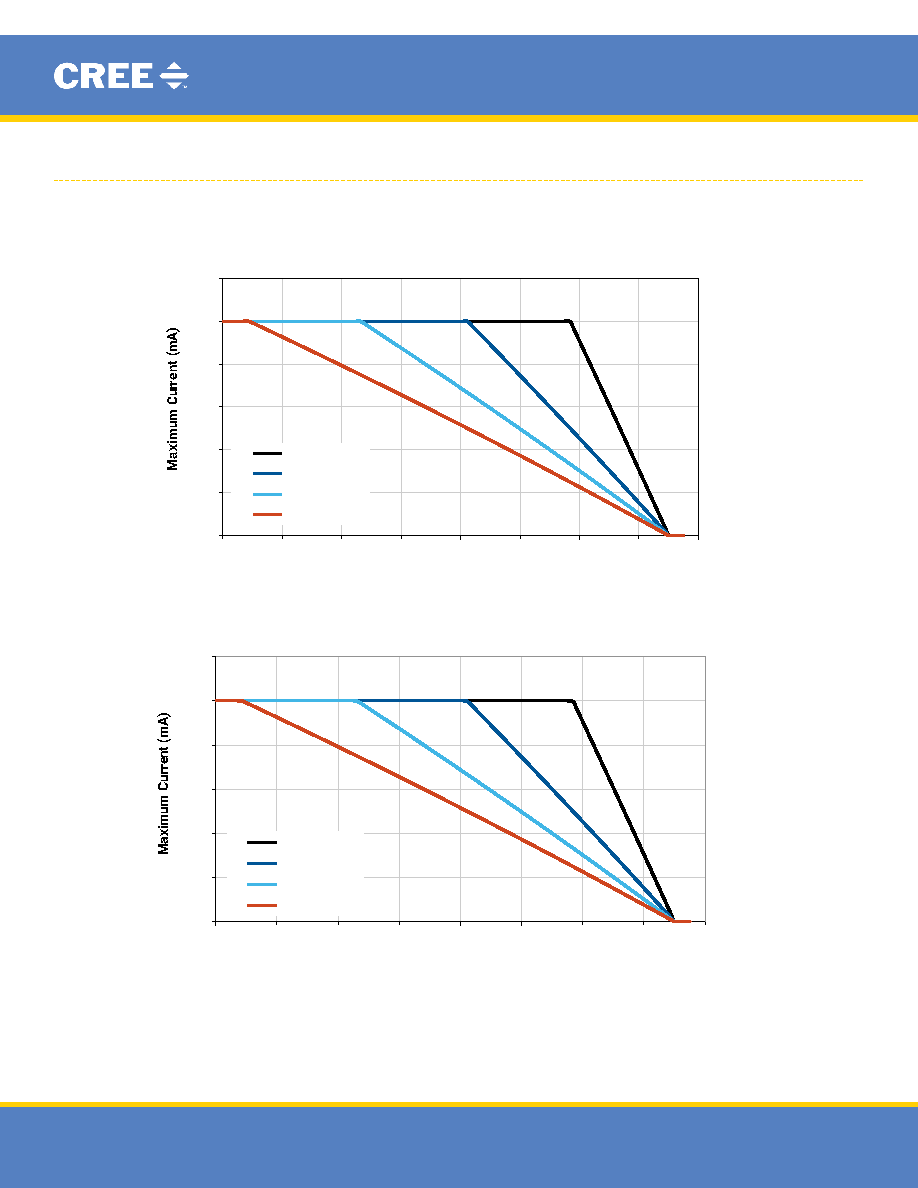

Thermal Design
0
500
1000
1500
2000
2500
3000
0
20
40
60
80
100
120
140
160
Ambient Temperature (ºC)
Rj-a = 2°C/W
Rj-a = 4°C/W
Rj-a = 6°C/W
Rj-a = 8°C/W
6 V
0
250
500
750
1000
1250
1500
0
20
40
60
80
100
120
140
160
Ambient Temperature (ºC)
Rj-a = 2°C/W
Rj-a = 4°C/W
Rj-a = 6°C/W
Rj-a = 8°C/W
12 V
