PA-830-101A-R2 datasheet(4/4 Pages) COPAL

부품명	PA-830-101A-R2

상세설명	PRESSURE TRANSDUCERS WITH AMP

PDF	4 Pages

Scroll/Zoom	100%

제조업체	COPAL [Copal Electronics]

홈페이지	http://www.nidec-copal-electronics.com/e

Logo

4 / 4 page

Pressure port

M 5 depth 6

Housing (Aluminum with alumite finish)

SN plate label

Part No. label

G 1/8 (PF 1/8)

(SUS 316L)

22.5

551

(10)

4 – core shielded cable

L = 1500 50

AWG26 ULNo.2844

( 3.8)

Cable bush (ESS-1)

“O” ring groove depth 1.8

PA-830

PRESSURE TRANSDUCERS WITH AMP.

O G1/8 type

OR1/4 type

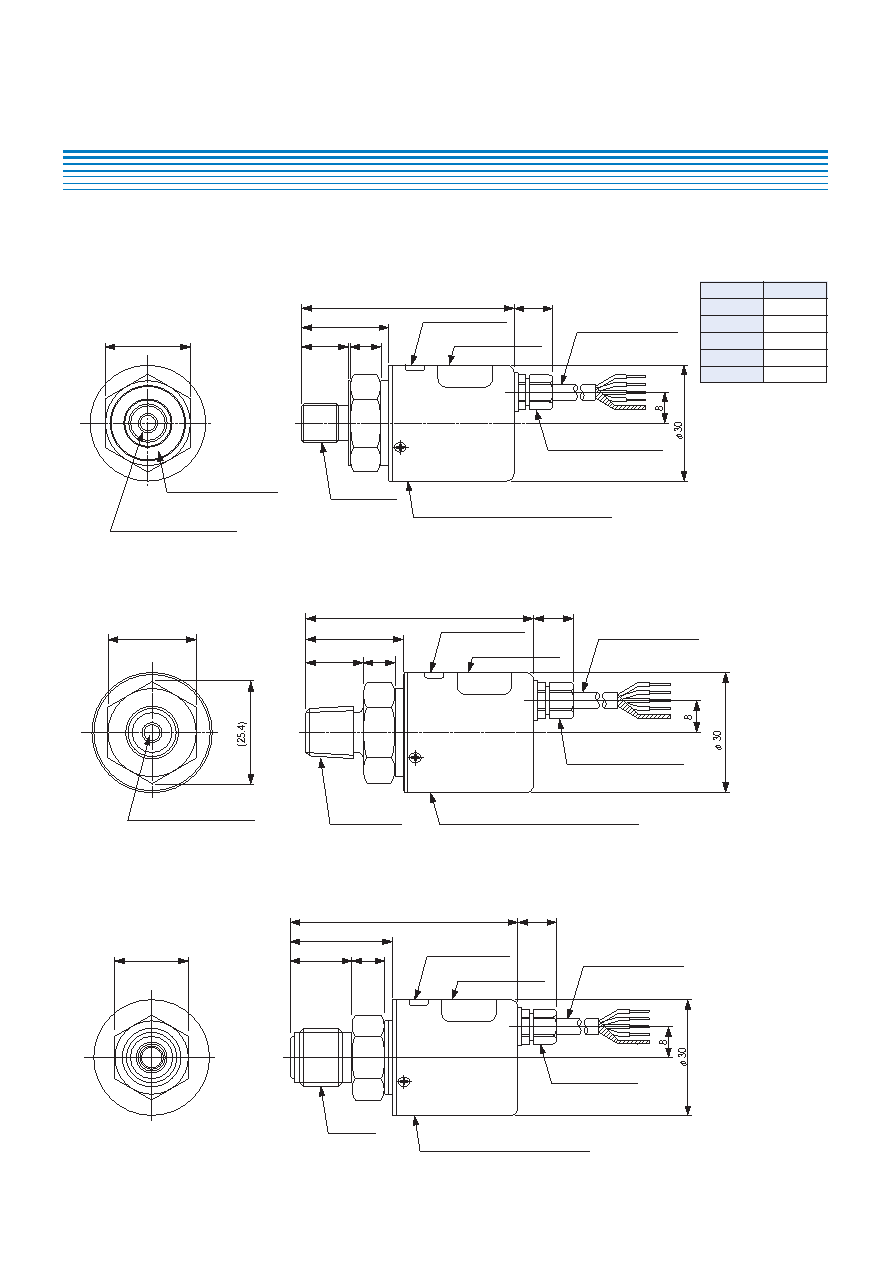

■ OUTLINE DIMENSIONS

Unless otherwise specified, tolerance :

± 0.5 (Unit: mm)

Pressure port

M 5 depth 6

13.5

23.5

561

(10)

(SUS 316L)

R 1/4 (PT 1/4)

Cable bush (ESS-1)

SN plate label

Part No. label

4 – core shielded cable

L = 1500 50

AWG26 ULNo.2844

Housing (Aluminum with alumite finish)

( 3.8)

Wire color

Red

White

Green

Black

Shield

Connection

Power

Output

N.C.

Common

Fitting

PA-830

O VCR type

1/4 VCR

(SUS 316)

(16)

8.5

(26.5)

591

(10)

Cable bush (ESS-1)

SN plate label

Part No. label

Housing (Aluminum with alumite finish)

4 – core shielded cable

L = 1500 50

AWG26 ULNo.2844

( 3.8)
