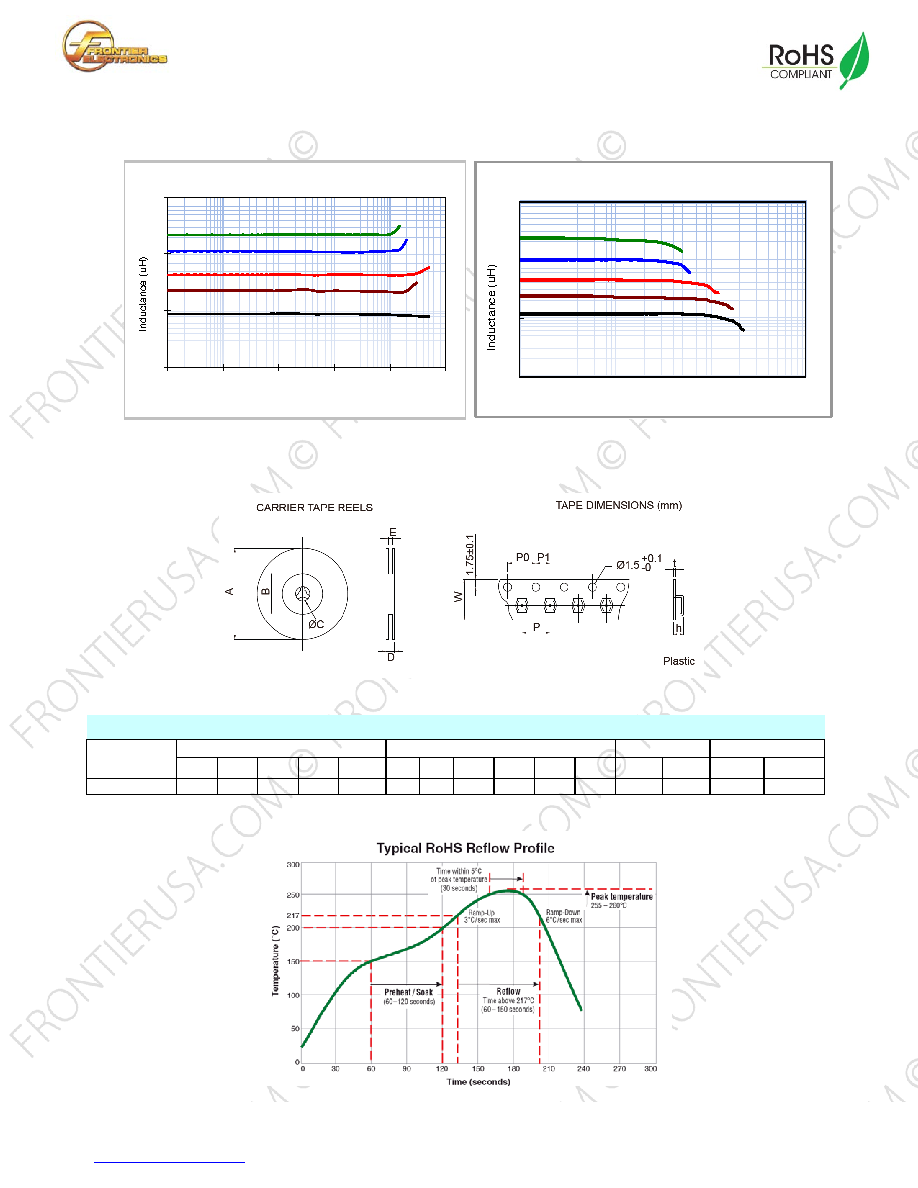

CSMH2410D Series
SMD WIRE WOUND POWER INDUCTORS (SHIELDED)
Rev. A
E. Characteristics Curve:
0
1
10
100
1
10
100
1000
10000
100000
Frequency (KHz)
Inductance vs. Frequency
2R2
100
4R7
220
1R0
0
1
10
100
10
100
1000
10000
DC Current (mA)
Inductance vs. DC Current
220
100
4R7
1R0
2R2
F. Supplementary Information:
1. Packaging Information
2. RoHS Reflow Solder Profile
SMD Power Choke/Coating Resin Type Power Choke
Series
P/N
Reel dimensions (mm)
Tape dimensions (mm)
Parts per reel
Quantity per
A
B
C
D
E
W
P
P0
P1
h
t
7”
13”
Box
Carton
CSMH2410D
180
60
13
---
10
8
4
4
2
1.30
0.25
2,500
---
12,500
75,000
Frontier Electronics Corp.
®
Page 2 of 2
667 E. Cochran St., Simi Valley, CA 93065
http://www.frontierusa.com
Phone: 1-805-522-9998, Fax: 1-805-522-9989
