55/88

ADE3XXX

Timing Controller (TCON) Block

2.16

Timing Controller (TCON) Block

The Output Timing Controller module provides timing for Smart Panel applications. The timing unit

is based on horizontal and vertical counters locked with the output video stream. A set of

programmable comparators provides all necessary time events to generate signals for the driver

interface.

Please refer to the programming tools for more details.

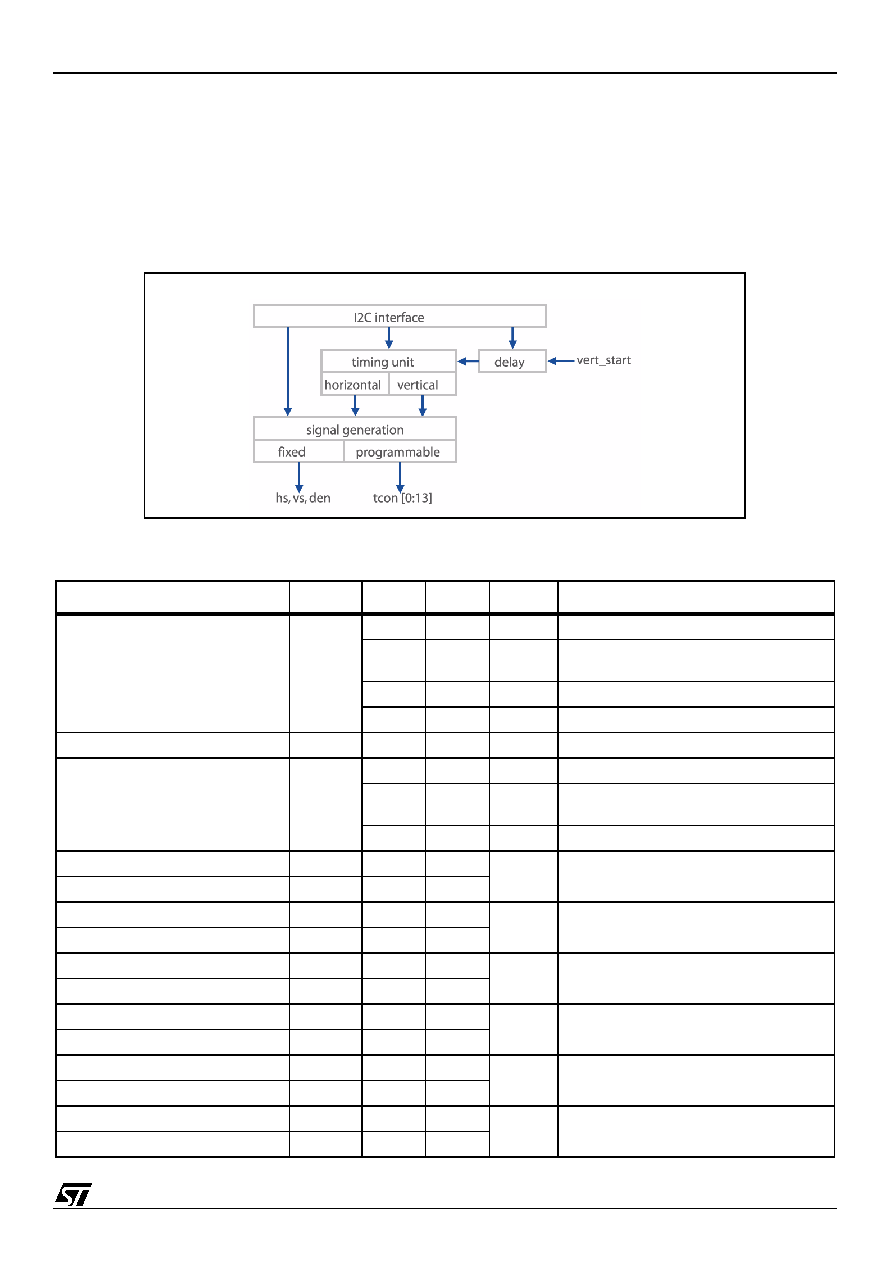

Figure 6: TCON Block Diagram

Table 20: TCON Registers (Sheet 1 of 6)

Addr.

Mode

Bits

Default

Description

TCON_CONTROL

0x0BC0

[7:3]

Reserved

R/W

[2]

0: no TCON pipe delay matching

1: TCON pipe delay enabled (normal)

R/W

[1]

initialize SRTDs

R/W

[0]

enableTCON

TCON_COMP_0_L

0x0B10

R/W

[7:0]

count comparison value [7:0]

TCON_COMP_0_H

0x0B11

R/W

[7:5]

Reserved

R/W

[4]

0: horizontal count compare

1: vertical count compare

R/W

[3:0]

count comparison value [11:8]

TCON_COMP_1_L

0x0B12

R/W

[7:0]

refer to TCON_COMP_0 for definition

TCON_COMP_1_H

0x0B13

R/W

[7:0]

TCON_COMP_2_L

0x0B14

R/W

[7:0]

refer to TCON_COMP_0 for definition

TCON_COMP_2_H

0x0B15

R/W

[7:0]

TCON_COMP_3_L

0x0B16

R/W

[7:0]

refer to TCON_COMP_0 for definition

TCON_COMP_3_H

0x0B17

R/W

[7:0]

TCON_COMP_4_L

0x0B18

R/W

[7:0]

refer to TCON_COMP_0 for definition

TCON_COMP_4_H

0x0B19

R/W

[7:0]

TCON_COMP_5_L

0x0B1A

R/W

[7:0]

refer to TCON_COMP_0 for definition

TCON_COMP_5_H

0x0B1B

R/W

[7:0]

TCON_COMP_6_L

0x0B1C

R/W

[7:0]

refer to TCON_COMP_0 for definition

TCON_COMP_6_H

0x0B1D

R/W

[7:0]
