SP_SERIES 데이터시트(PDF) 2 Page - Copal Electronics

부품명 SP_SERIES
상세설명  Miniature Pushbutton Switches
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  COPAL [Copal Electronics]
홈페이지  http://www.nidec-copal-electronics.com/e
Logo COPAL - Copal Electronics

SP_SERIES 데이터시트(HTML) 2 Page - Copal Electronics

  SP_SERIES Datasheet HTML 1Page - Copal Electronics SP_SERIES Datasheet HTML 2Page - Copal Electronics SP_SERIES Datasheet HTML 3Page - Copal Electronics SP_SERIES Datasheet HTML 4Page - Copal Electronics
Zoom Inzoom in Zoom Outzoom out

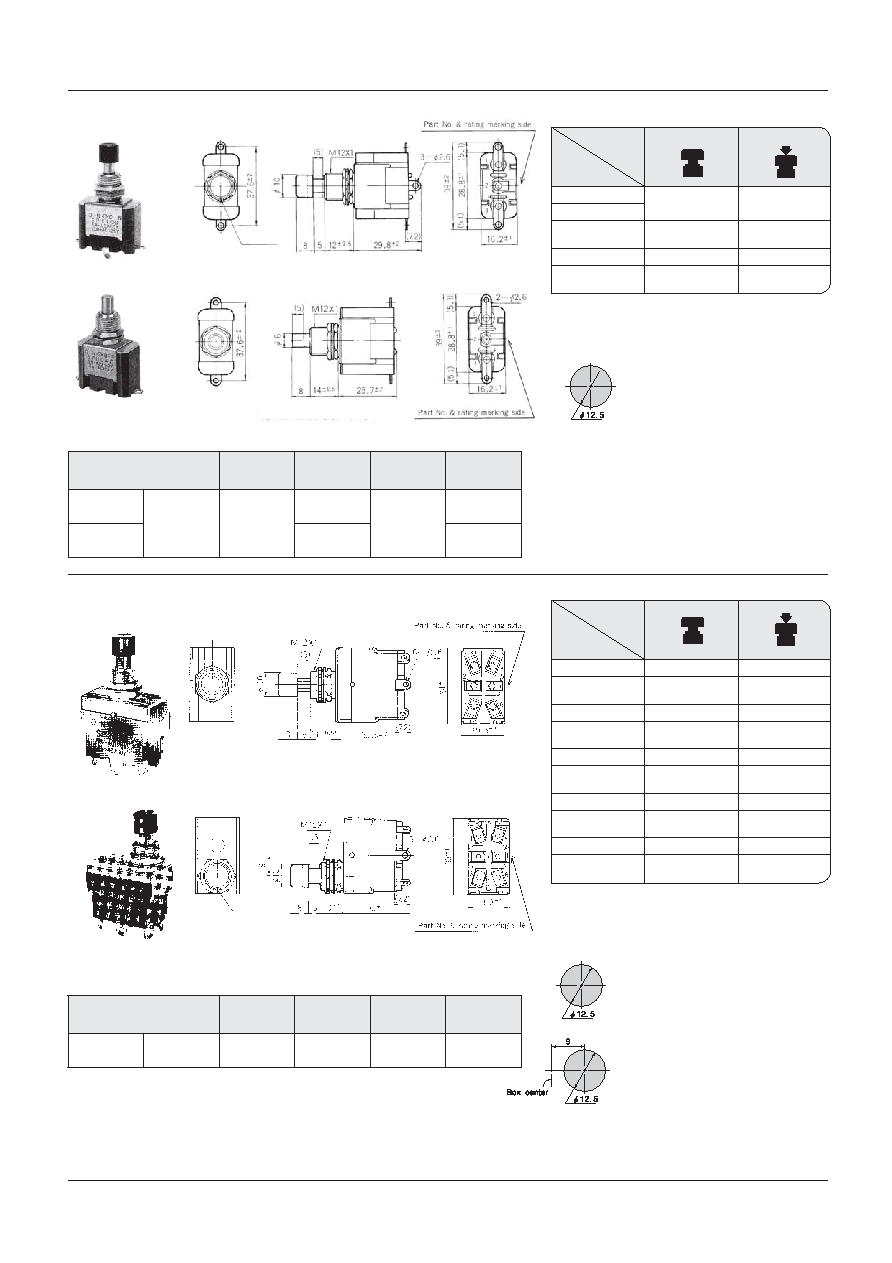

 2 / 4 page
background image
S
Strok
ke
SP
★：Made to order products.
Key Way
S
Strok
ke
Stroke
Key Way
Stroke
SP110
（1 pole）
SP210
（2 poles）
SP110A
・110D/Dimensions
SP210K
・210N/Dimensions
SP210L
・210M・210R/Dimensions
SP110AC/Dimensions
Switching
function
Part No.
★※SP110A−Z
OFF
ON
★※SP110AC−Z
Connecting terminals
−
1
−3
★※SP110D−Z
ON
ON
Connecting terminals
2
−32−1
Switching
function
Part No.
★※SP210K−Z
ON
OFF
Connecting terminals
1
−3 4−6
−
★※SP210N−Z
ON
ON
Connecting terminals
2
−1 5−42−3 5−6
★ SP210L−Z
ON
（OFF）
Connecting terminals
1
−3 4−6
−
☆ SP210M−Z
OFF
（ON）
Connecting terminals
−
1
−3 4−6
★ SP210R−Z
ON
（ON）
Connecting terminals
2
−3 5−62−1 5−4
Terminal numbers are shown on the switch.
Terminal numbers are shown on the switch.
Terminal numbers are shown on the switch.
Terminal numbers are shown on the switch.
Terminal pins No.2 and No.5 are not available
in switches with Switching Function K .
Terminal pins No.2 and No.5 are not available
in switches with Switching Function L or M .
■Panel Cut-Out Dimensions
Panel thickness
SP110A
・D 6.5 mm Max.
SP110A C
8.5 mm Max.
■Panel Cut-Out Dimensions
210K. 210N
Panel thickness
：5.5 mm Max.
210L. 210M. 210R
Panel thickness
：4.5 mm Max.
■:WLJPÄJH[PVUZ
Rating
Initial contact
resistance
Dielectric
strength
Insulation
resistance
Electrical
life
SP110A
SP110D
AC125V 10A
AC250V 6A
20m
Ω Max.
AC1500V
1 minute
100M
Ω Min.
10,000
operations
SP110AC
AC1000V
1 minute
30,000
operations
■:WLJPÄJH[PVUZ
Rating
Initial contact
resistance
Dielectric
strength
Insulation
resistance
Electrical
life
SP210K
・
N
・L・M・R
AC125V 10A
AC250V 6A
20m
Ω Max.
AC1500V
1 minute
100M
Ω Min.
10,000
operations
（ON）and（OFF）
：Momentary.
☆：Semi-standard products.
