ADPD2211
Data Sheet
Rev. 0 | Page 12 of 13

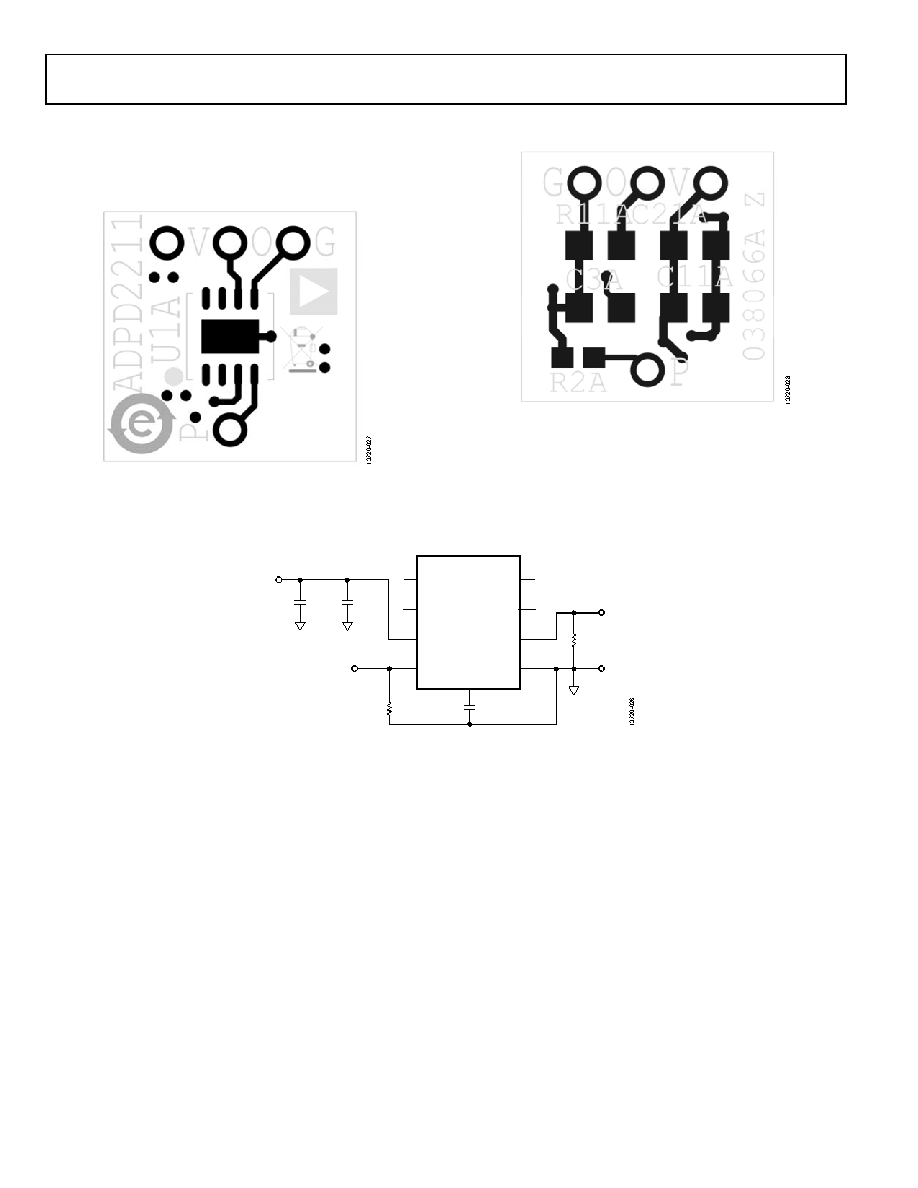

EVALUATION BOARD SCHEMATIC AND LAYOUT
Figure 17 shows the evaluation board schematic. Figure 15 and
Figure 16 show the evaluation board layout for the top and
bottom layers, respectively.
Figure 15. ADPD2211 Evaluation Board Top Layer
Figure 16. ADPD2211 Evaluation Board Bottom Layer
Figure 17. ADPD2211 Evaluation Board Schematic (Do Not Install C3A)
EVALZ-ADPD2211
U1A
1
3
4
6
8
PWDN
NIC
VCC
GND
NIC
2
7
NIC
VCC
PWDN
GND
OUT
NIC
OUT
EPAD
R11A
100k
Ω
R2A
100k
Ω
C21A
1µF
C3A
0.01µF
DNI
DNI
C11A
0.01µF
5
