ADPD2212
Data Sheet
Rev. 0 | Page 12 of 13

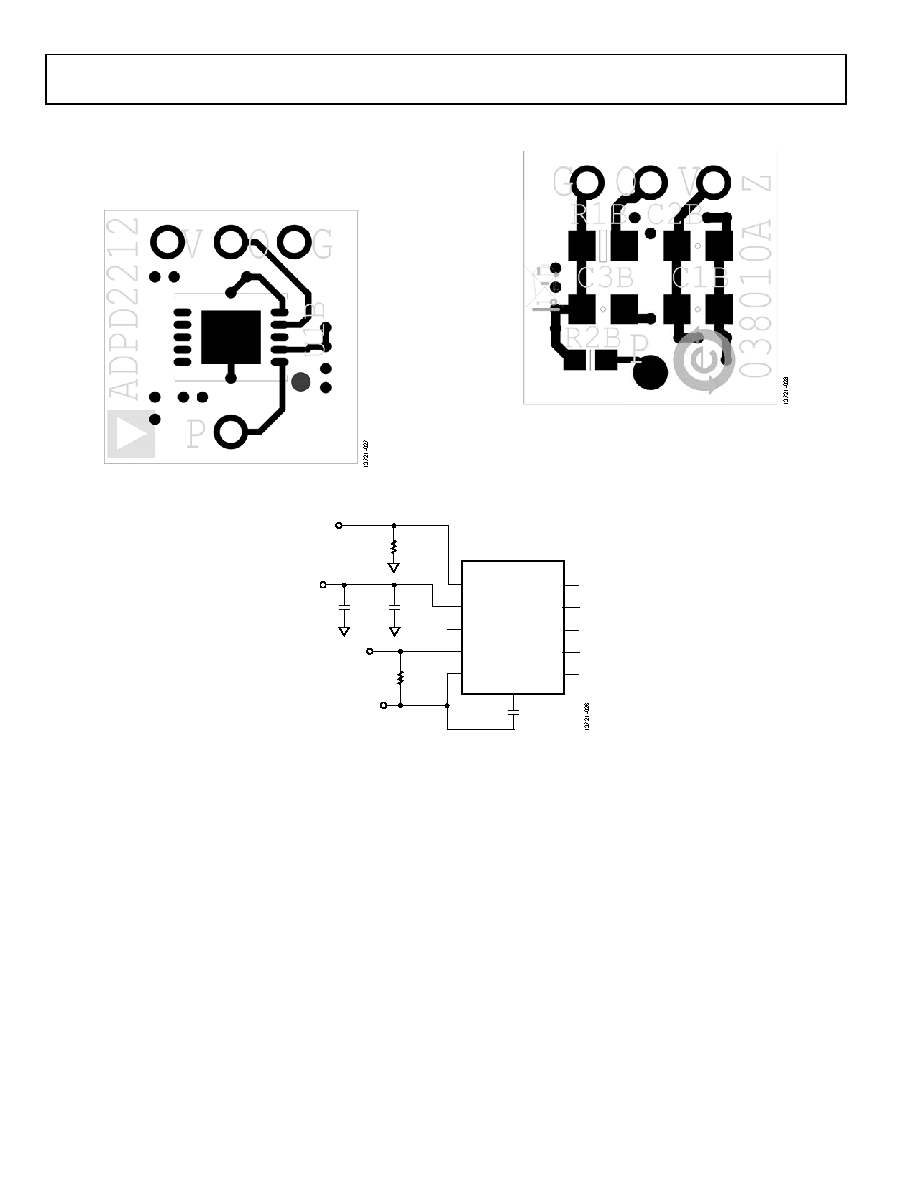

EVALUATION BOARD SCHEMATIC AND LAYOUT
Figure 17 shows the evaluation board schematic. Figure 15 and
Figure 16 show the evaluation board layout for the top and
bottom layers, respectively.
Figure 15. ADPD2212 Evaluation Board Top Layer
Figure 16. ADPD2212 Evaluation Board Bottom Layer
Figure 17. ADPD2212 Evaluation Board Schematic (Do Not Install C3B)
EVALZ-ADPD2212
U1A
1
3
4
5
6
8
GND
NIC
OUT
NIC
NIC
2
7
PWDN
VCC
VCC
PWDN
OUT
NIC
NIC
NIC
EPAD
10
9
GND
R1B
100k
Ω
R2B
100k
Ω
C2B
1µF
C3B
0.01µF
DNI
DNI
C1B
0.01µF
