129NQ...R-1 SERIES

129NQ135/R-1 129NQ150/R-1

SCHOTTKY RECTIFIER

Applications:

● Switching power supply ● Converters ● Free-Wheeling diodes ● Reverse battery protection

Features:

•

•

Unique high power, Half-Pak module

•

Replaces three parallel DO-5’S

•

Easier to mount and lower profile than DO-5’S

•

High purity, high temperature epoxy encapsulation for enhanced

mechanical strength and moisture resistance

•

Low forward voltage drop

•

High frequency operation

•

Guard ring for enhanced ruggedness and long term reliability

•

This is a Pb − Free Device

•

All SMC parts are traceable to the wafer lot

•

Additional testing can be offered upon request

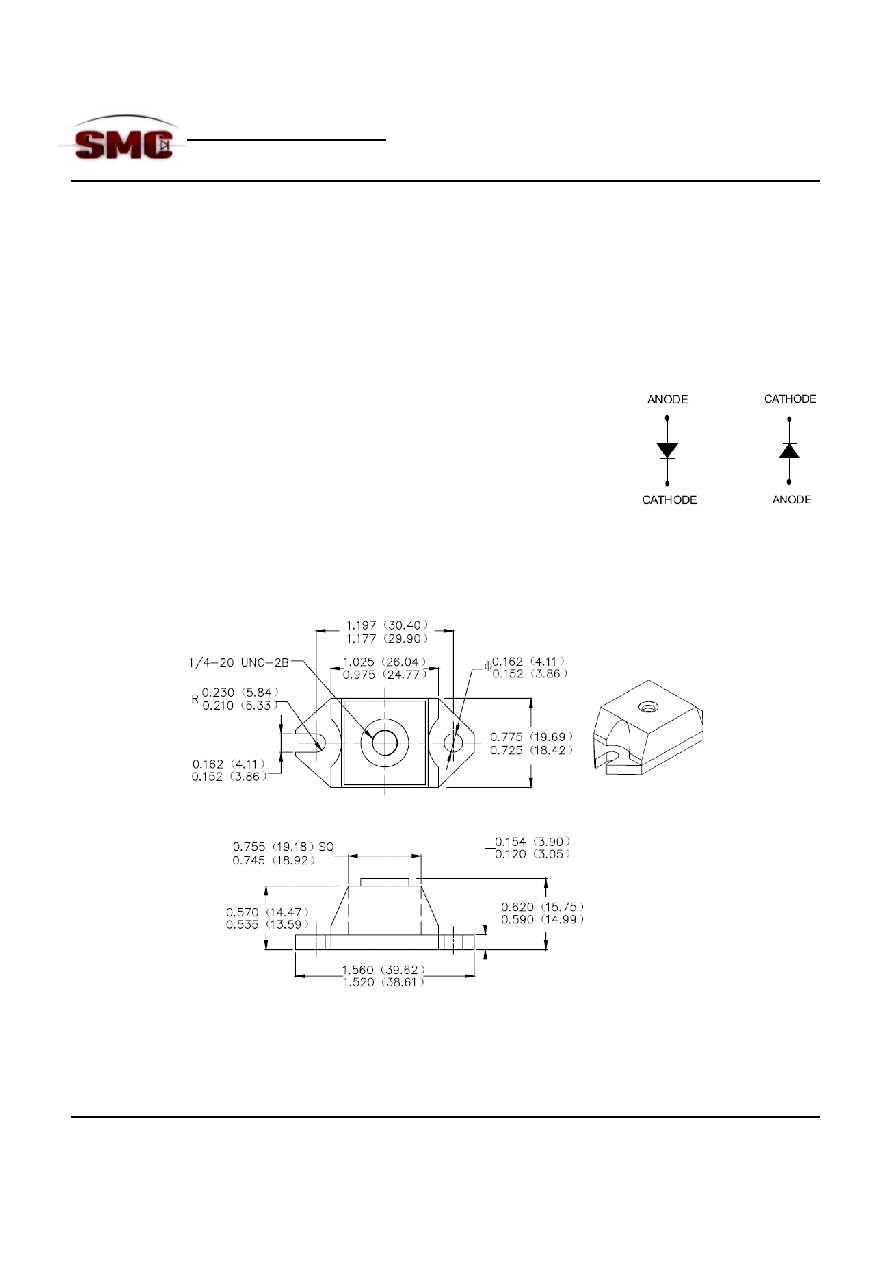

Mechanical Dimensions: In Inches / mm

PRM1-1(HALF PAK Module)

MARKING,MOLDING RESIN

Marking for 129NQ135(150)/R-1, 1

Where YY is the manufacture year

WW is the manufacture week code

L is the wafer’s Lot Number

Molding resin

Epoxy resin UL:94V-0

129NQ135-1

129NQ135R-1
