Temperature (°C)

-60

-40

-20

0

20

40

60

80

100

120

140

3

3.5

4

4.5

5

5.5

6

6.5

7

7.5

8

D023

3.3 V

5 V

2 ms/div

SW, 5V/div

Iinductor, 500mA/div

VOUT, 50mV/div

10µs/div

16

LM53602, LM53603

SNVSAR0 – NOVEMBER 2016

www.ti.com

Product Folder Links: LM53602 LM53603

Submit Documentation Feedback

Copyright © 2016, Texas Instruments Incorporated

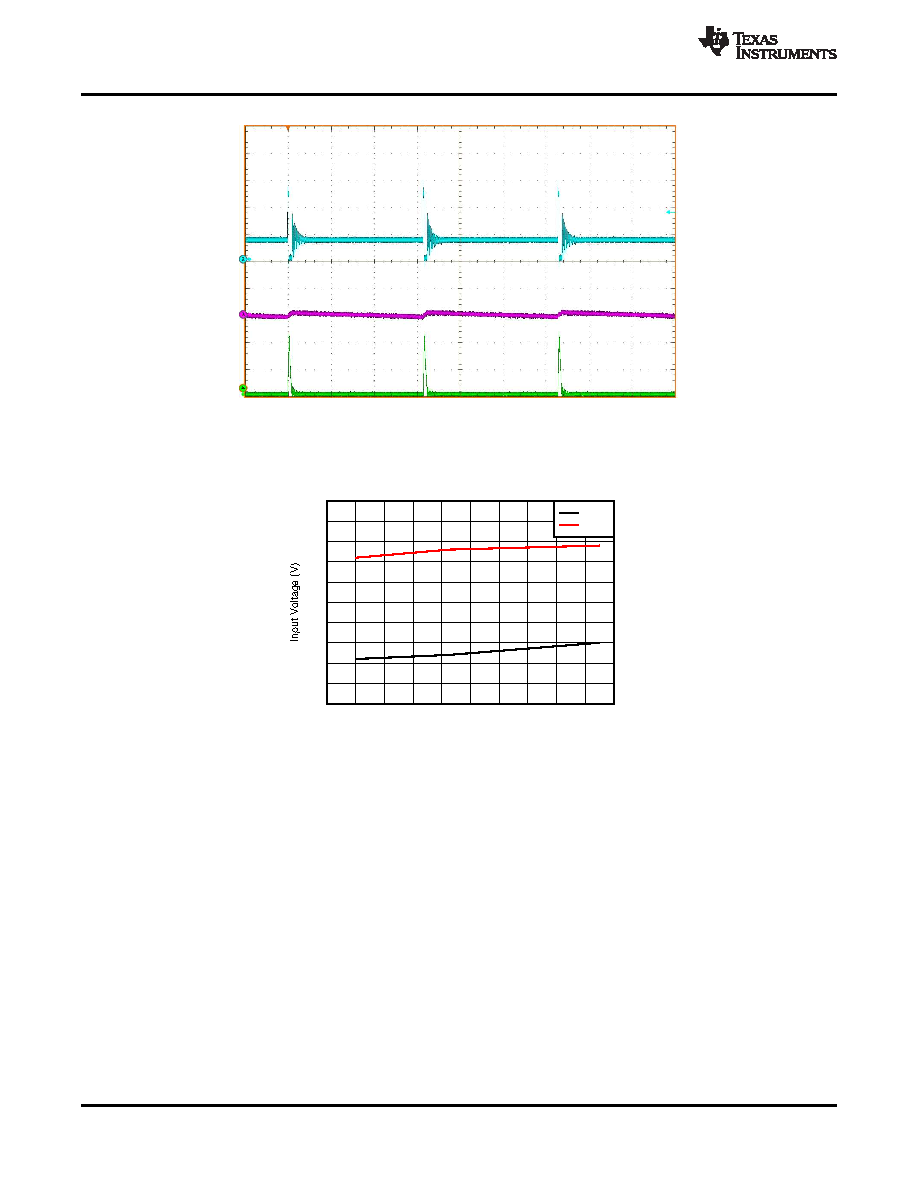

Figure 12. Typical PFM Switching Waveforms

Figure 13. Input Voltage for Mode Change

8.4.2 FPWM Mode

With a logic high on the FPWM input, the device is locked in PWM mode. This operation is maintained, even at

no-load, by allowing the inductor current to reverse its normal direction. This mode trades off reduced light load

efficiency for low output voltage ripple, tight output voltage regulation, and constant switching frequency. In this

FPWM, the converter synchronizes to any valid clock signal on the SYNC input (see Dropout and Input Voltage

Frequency Fold-Back).
