LDFM

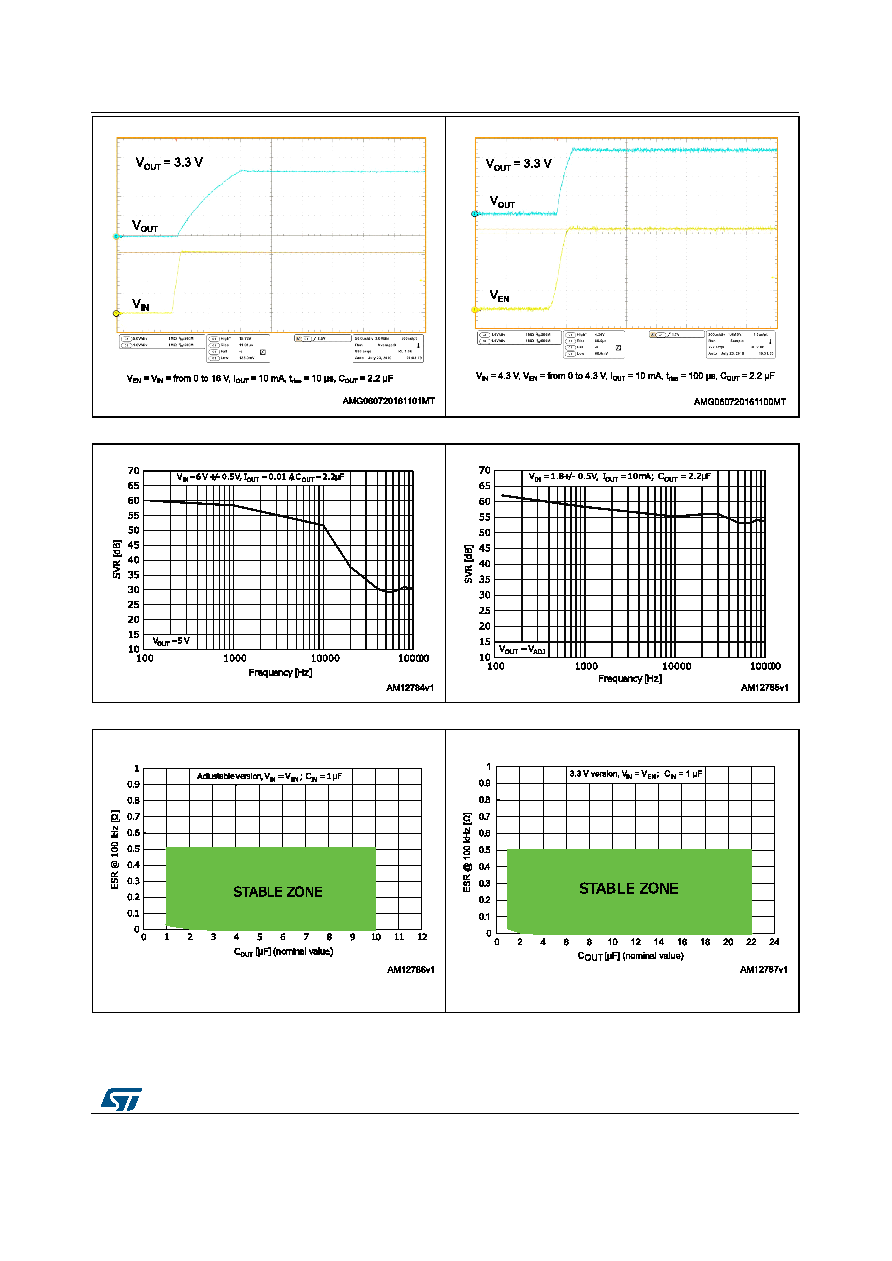

Typical performance characteristics
DocID023585 Rev 4
15/36
Figure 21: Startup transient
Figure 22: Enable transient
Figure 23: SVR vs frequency (VOUT = 5 V)
Figure 24: SVR vs frequency (VOUT = VADJ)
Figure 25: Stability plane adj (COUT, ESR)
Figure 26: Stability plane 3.3 V (COUT, ESR)
