October 2016

DocID026015 Rev 4

1/28

This is information on a product in full production.

www.st.com

LDK220

200 mA low quiescent current and low noise LDO

Datasheet - production data

Features



Input voltage from 2.5 to 13.2 V



Very low-dropout voltage (100 mV typ. @

100 mA load)



Low quiescent current (typ. 55 µA, 1 µA in

off mode)



Low noise



Output voltage tolerance: ± 2.0% @ 25 °C



200 mA guaranteed output current



Wide range of output voltages available on

request: fixed from 1.2 V to 12 V with

100 mV step and adjustable



Logic-controlled electronic shutdown



Compatible with ceramic capacitor

COUT = 1 µF



Internal current and thermal limit



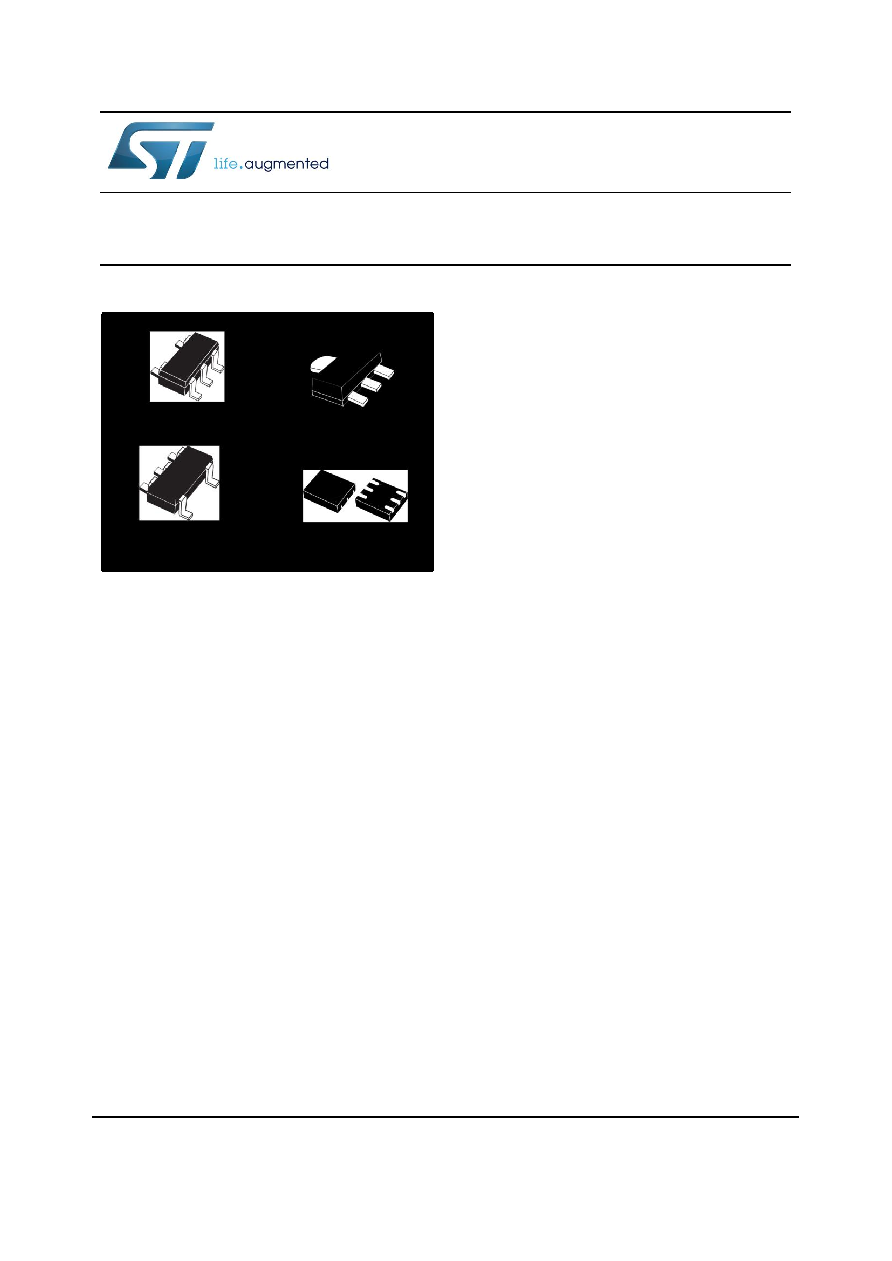

Available in SOT23-5L, SOT323-5L, SOT-89

and DFN6-1.2x1.3 packages



Temperature range: -40 °C to 125 °C

Applications



Battery-powered equipment



TV



Set-top box



PC and laptop



Industrial

Description

The LDK220 is a low drop voltage regulator,

which provides a maximum output current of

200 mA from an input voltage in the range of

2.5 V to 13.2 V, with a typical dropout voltage of

100 mV.

A ceramic capacitor stabilizes it on the output.

The very low drop voltage, low quiescent current

and low noise make it suitable for battery-

powered applications.

The enable logic control function puts the

LDK220 in shutdown mode allowing a total

current consumption lower than 1 µA.

The device also includes a short-circuit constant

current limiting and thermal protection.
