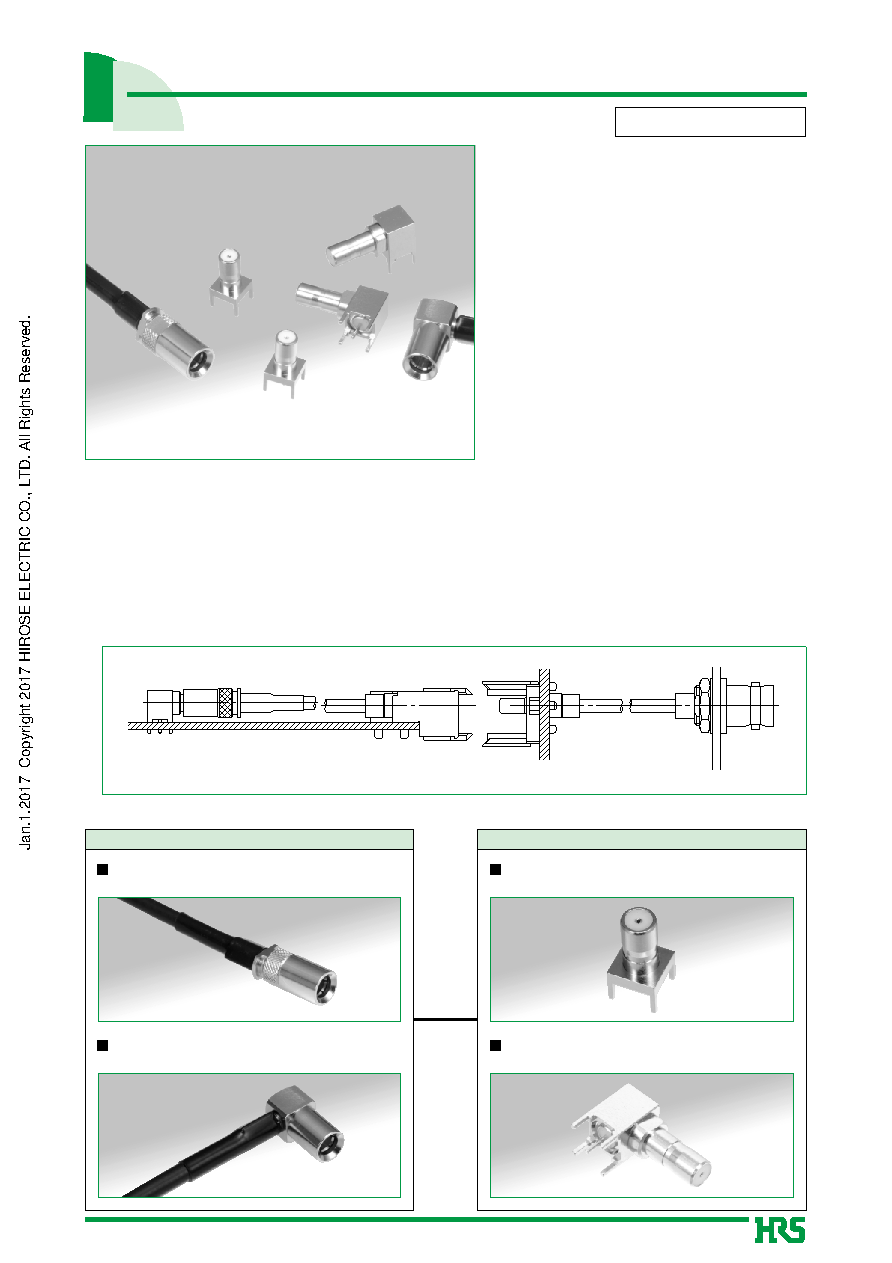

Inner Wiring PL71 Series

Plug-in mounting PO82M Series

Housing is compliant with IEC61076-4-101

PO21M Series

Interface→BNC(75)Series

PL71 Series

75

Ω Up to 3 GHz

1. 20% downsized compared with

conventional 75 ohm BNC connectors.

2. Superior locking mechanism

Our exclusive locking method keeps the

mating par t in constant contact with the

electr i c reference plane (Top To uch),

ensuring high contact stability and reliability.

The construction is protected by the outer

shell.

3. Stable, stationary center contact structure

The stationary design protects the extremely

thin center conductor of this 75 ohm coaxial

cable from potential damage. Damage can

be caused by rotational forces during mating

and unmating.

4. Reliable at high frequencies

The high-frequency performance of the PL71

Ser ies is ve r y reliabl e, with V. S. W.R.

characteristics of a maximum of 1.3 at DC,

and up to 3 GHz, which is suitable for

3G-SDI broadcasting equipment.

The PL71 Series is well suited for use in the digital cable television broadcasting industry. This 75 ohm

coaxial series can work together with BNC(75)Series and PO82M Series to configure a wide range of

functions, including interface connections, plug-in mounting, and wiring within devices.

Straight

PL71-P-πππ

Plugs

Receptacles

Right-angle

PL71-LP-πππ

Straight

PL71-R-PC

Right-angle

PL71-LR-PC

Push-on Lock Coaxial Connectors for Digital Broadcasting

Applications
