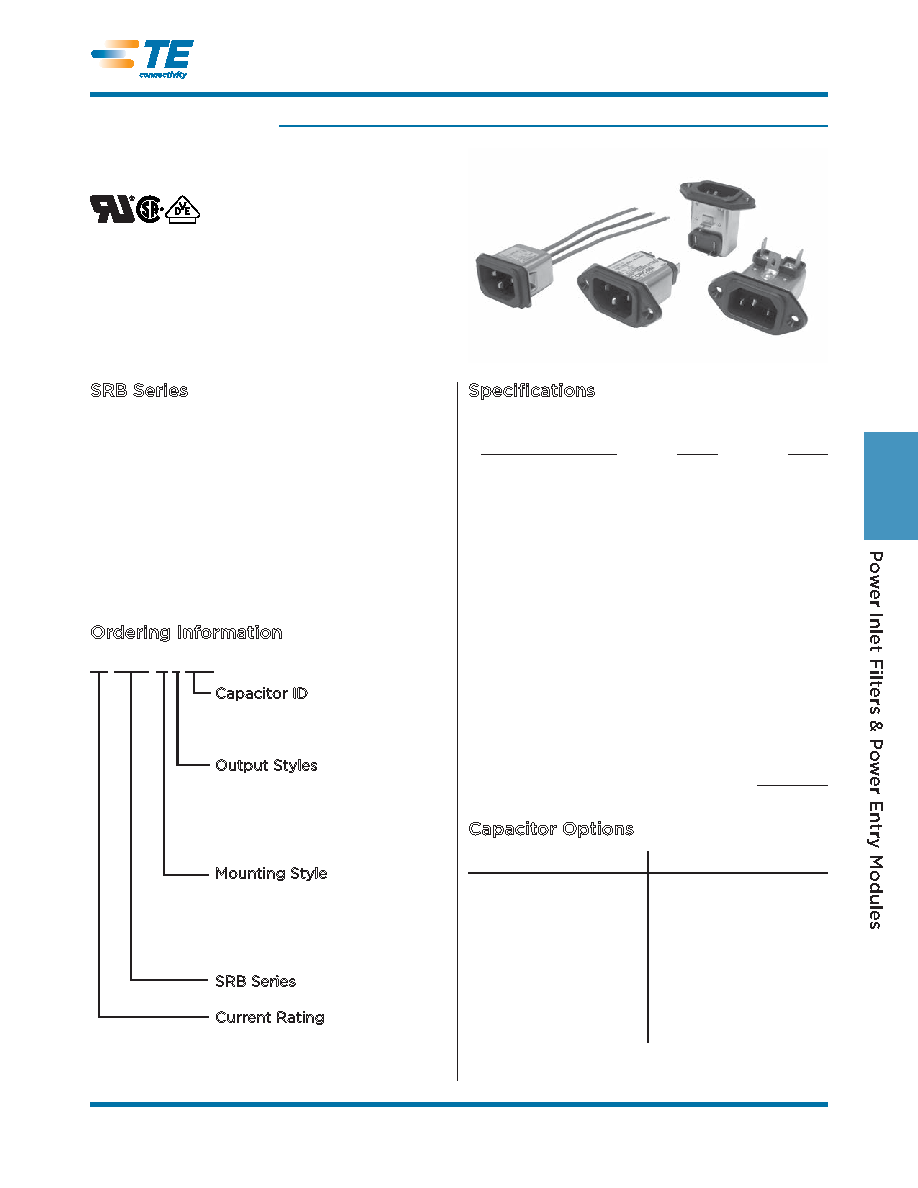

SRB Series

SRB Series

Minimum Depth, Cost-effective Shielded Power Inlet Filter

3

203

Dimensions are in inches and millimeters unless otherwise specified. Values in italics

are metric equivalents. Dimensions are shown for reference purposes only.

Specifications subject to change.

Corcom Product Guide

Catalog: 1654001

Issue Date: 06.2011

For email, phone or live chat, please go to

te.com/help

corcom.com

UL Recognized

CSA Certified

VDE Approved*

• Smallest depth Corcom RFI filter available

• Complete shield

• Wide range of capacitor values

• Attenuates coupled EMI up to 300MHz

• Minimal to low leakage current versions are

suitable for patient and non-patient contact

medical equipment.

• Full range of mounting and termination options

including unique vertical and horizontal

orientation slide in mounts eliminate the need for

mounting hardware

Ordering Information

15 SRB S 1 - Q

Capacitor ID

See Chart

Omit if none

Output Styles

8 – Wire leads

P – PC board pins

Mounting Style

S – Snap-in

Omit for flange mount

SRB Series

Current Rating

15A

SRBS8

Maximum leakage current each Line to Ground:

@120 VAC

@250 VAC

Capacitor ID / Value

60 Hz

50 Hz

Blank / None

2

A

5

A

Q / 33 pF

2.1

A

3.65

A

R / 100 pF

9.6

A

16.6

A

S / 220 pF

19.2

A

33.2

A

T / 330 pF

24.0

A

41.5

A

W / 470 pF

0.04 mA

0.07 mA

X / 1000 pF

0.07 mA

0.13 mA

Y / 2200 pF

0.16 mA

0.28 mA

Z / 3300 pF

0.24 mA

0.42 mA

Hipot rating (one minute):

Line to Ground:

2250 VDC

Line to Line:

1450 VDC

Rated Voltage (max.):

250 VAC

Operating Frequency:

50/60 Hz

Rated Current:

15A*

Operating Ambient Temperature Range

(at rated current Ir):

-10°C to +40°C

In an ambient temperature (Ta) higher than +40°C

the maximum operating current (Io) is calculated as

follows: Io = Ir (85-Ta)/45

Specifications

SRB1

SRBP

SRB2

Capacitor Options

Capacitor ID

Capacitor Value

Q

33 pF

R

100 pF

S

220 pF

T

330 pF

W

470 pF

X

1000 pF

Y*

2200 pF

Z*

3300 pF

*Not available in SRB8, SRBX or SRBY styles

*15A versions are tested by Underwriters Laboratories

to US and Canadian requirements and are

VDE approved at 10A, 250VAC
