SCHRACK

General Purpose Relays

PCB Relays

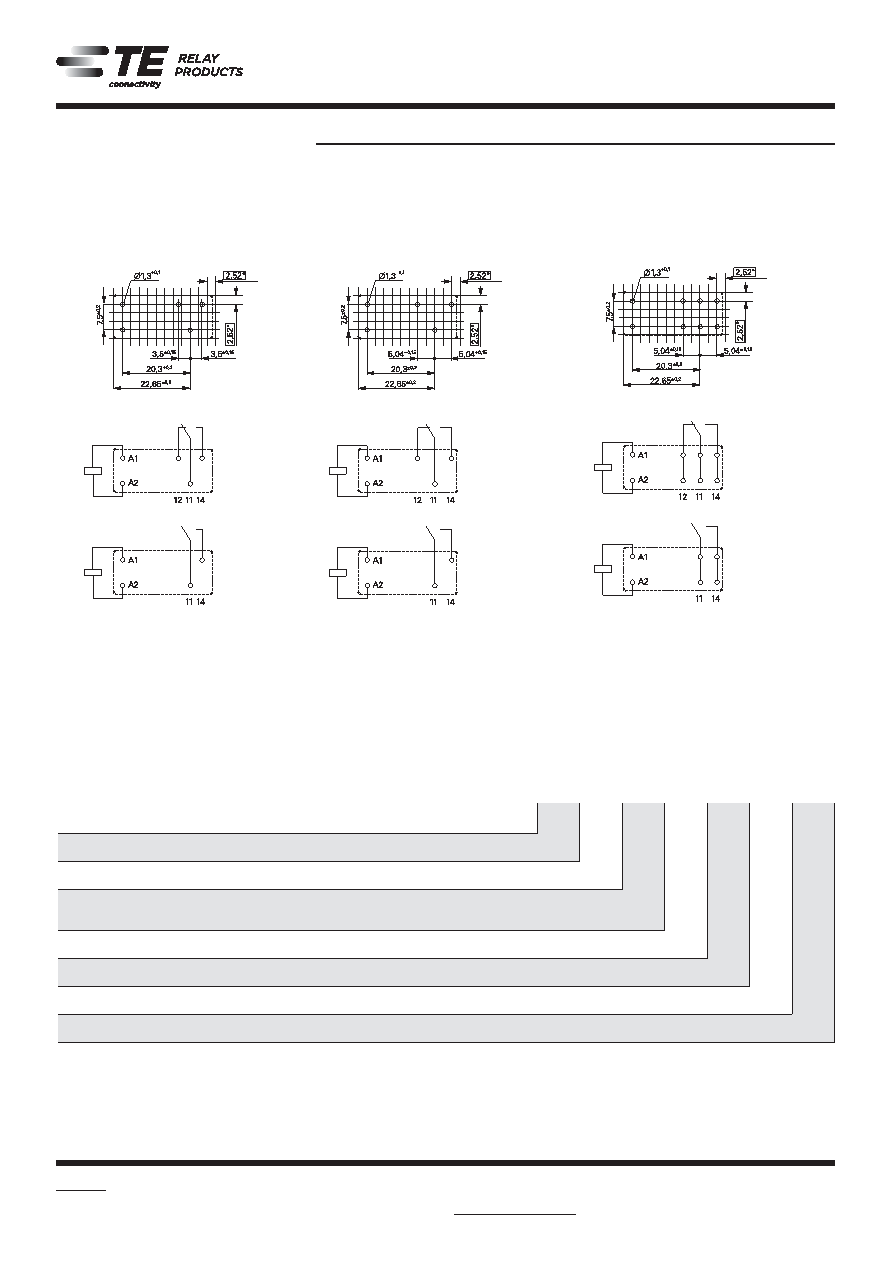

Power PCB Relay RZ (Continued)

Product code structure

Typical product code

-1C

-D012

Type

RZ Power PCB Relay RZ

Version

standard version

Version

3.5mm pinning, 12 A

5mm double pinning, 16 A

5mm pinning, 12 A

H High Performance 5mm double pinning, 16 A

Contact configuration

1A 1 form A (1 NO) contact

1C 1 form C (1 CO) contact

Contact material

AgNi 90/10

AgSnO2

Coil version

Coil code: please refer to coil versions table

Cover version

blank

standard (orange)

R reinforced flux proof (epoxy)

12A, pinning 3.5mm

1 form C (CO) contact

1 form A (NO) contact

S0418-CB

S0163-BG

S0163-BH

PCB layout / terminal assignment

Bottom view on solder pins

12A, pinning 5mm

1 form C (CO) contact

1 form A (NO) contact

S0418-CN

S0163-BC

S0163-BD

Recommended pcb hole for manual mounting:

k1.3mm

For automated mounting please ask for

detailed drawing.

16A, pinning 5mm

1 form C (CO) contact

1 form A (NO) contact

S0418-CA

S0163-BE

S0163-BF
