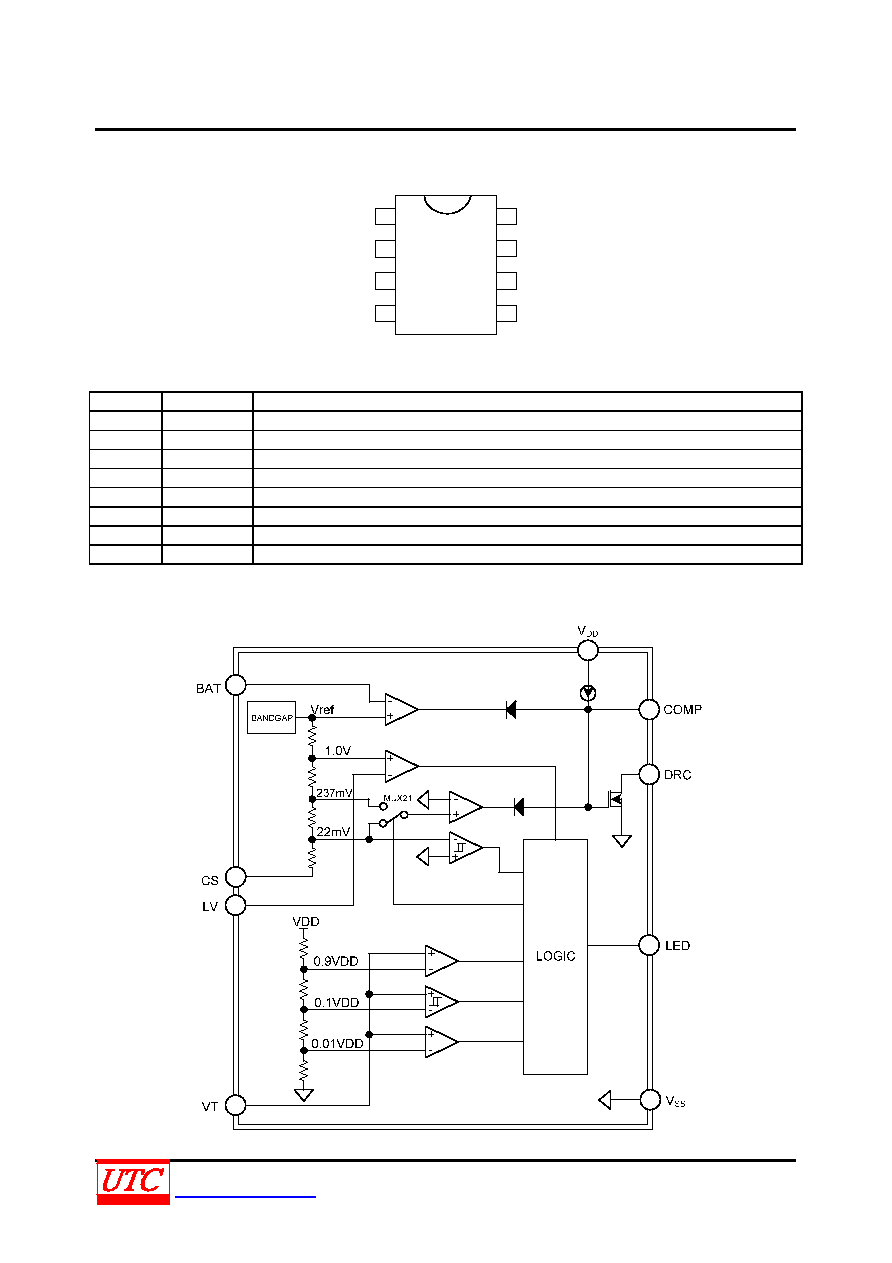

UB2011
Preliminary
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
3 of 7
www.unisonic.com.tw
QW-R121-028 .a
PIN CONFIGURATION
VSS
LED
CS
BAT
LV
VT
VDD
DRC
1
2
3
4
8
7
6
5
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
VSS
Battery negative, Ground of power
2
LED
Drive LED
3
VDD
Positive input supply voltage, Provides power to the charger
4
DRC
Drive control charge-transistor
5
VT
Temperature sense input
6
LV
Under voltage sense input
7
BAT
Battery positive voltage sense input
8
CS
Charge current sense input, power negative
BLOCK DIAGRAM
