SP2T PIN Diode Switch

Rev. V1

MSW201x-201

9

9

M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.

Visit www.macom.com for additional data sheets and product information.

For further information and support please visit:

https://www.macom.com/support

DS-xxxxxxx

9

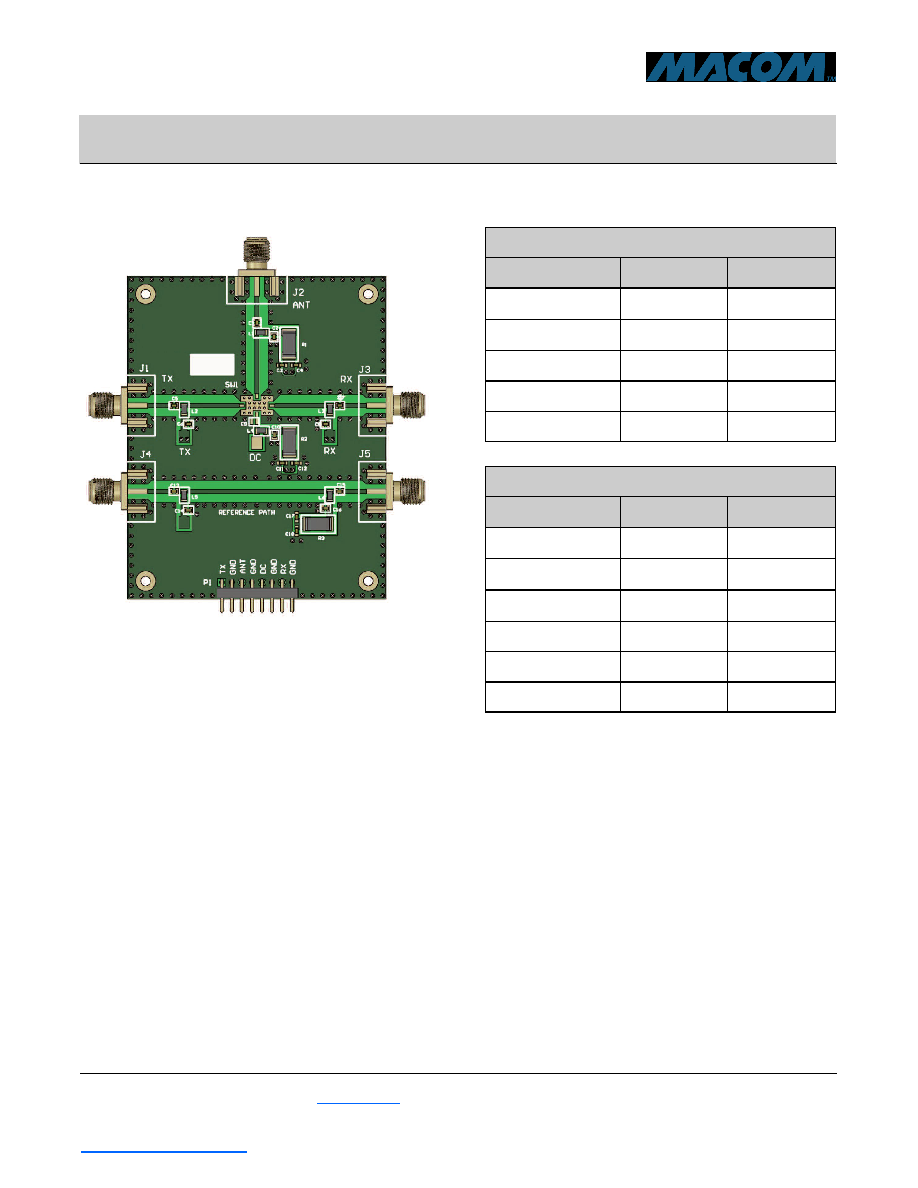

SP2T Switch Evaluation Board Layout

Evaluation Board Parts List

MSW2010-201 Band 1

Part

Value

Case Style

C1, C2, C5 - C10,

C13 - C15

0.1 µF

0603

C17, C18

0.1 µF

0603

L1 - L6

47 µH

1008

R1, R3

39 Ω

2512

R2

1200 Ω

2512

MSW2011-201 Band 2

Part

Value

Case Style

C1, C5, C7, C13, C15

47 pF

0603

C2, C6, C8, C9, C10,

C14, C16

220 pF

0603

C3, C4, C11, C12,

C17, C18

1000 pF

0603

L1 - L7

43 nH

0603

R1, R3

39 Ω

2512

R2, R4

1200 Ω

2512

7. Second bypass capacitor is optional.
