ADA4805-1/ADA4805-2
Data Sheet
Rev. B | Page 16 of 25
–160
–140
–120
–100
–80
–60
–40
–20
0
0.001
0.01
0.1
1
10
100
1000
FREQUENCY (MHz)
AMP2 TO AMP1
AMP1 TO AMP2

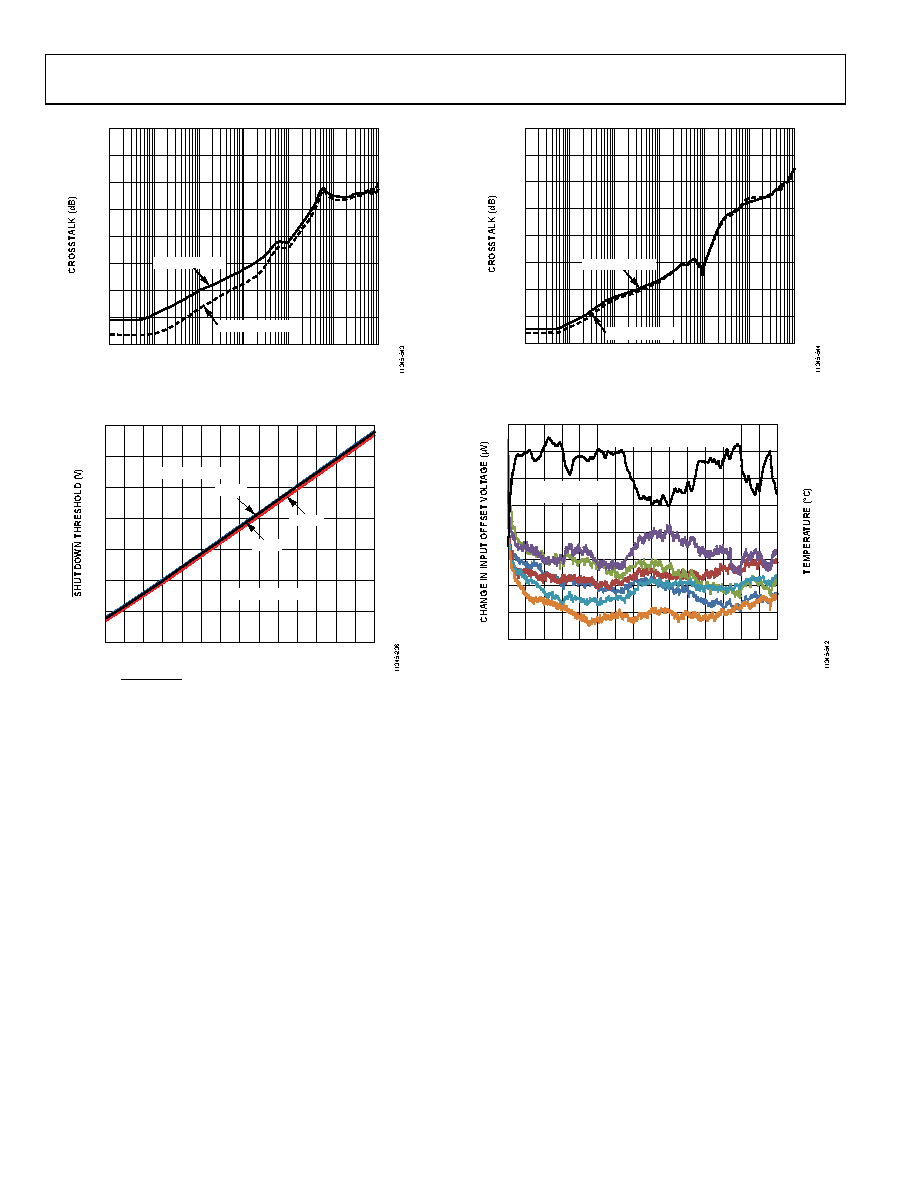

Figure 42. Crosstalk vs. Frequency (LFCSP)
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0
SUPPLY VOLTAGE FROM GROUND (V)
+125°C
+25°C
–40°C
DEVICE ENABLED
DEVICE DISABLED
Figure 43. SHUTDOWN Threshold vs. Supply Voltage from Ground for
Various Temperatures
–160
–140
–120
–100
–80
–60
–40
–20
0
0.001
0.01
0.1
1
10
100
1000
FREQUENCY (MHz)
AMP2 TO AMP1
AMP1 TO AMP2
Figure 44. Crosstalk vs. Frequency (MSOP)
21.5
22.0
22.5
23.0
23.5
24.0
24.5
25.0
25.5
–5
–4
–3
–2
–1
0
1
2
3
0
200
400
600
800
1000
1200
1400
TIME (Hours)
OIL BATH
TEMPERATURE
VS = ±2.5V
6 UNITS, SOLDERED TO PCB
Figure 45. Long-Term VOS Drift
