UD38252
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
5 of 7
www.unisonic.com.tw
QW-R115-008.A

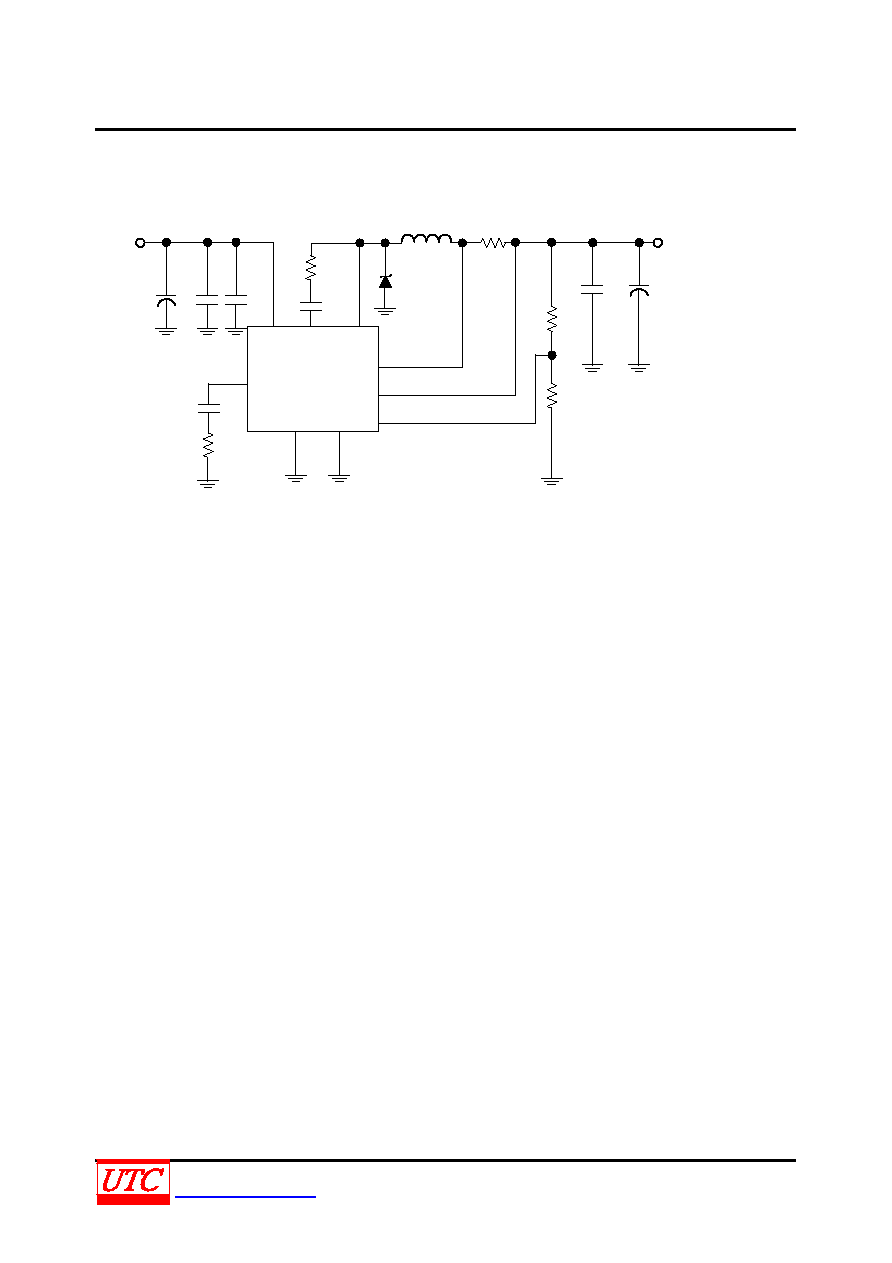

TYPICAL APPLICATION CIRCUIT
IN
COMP
PAD
SW
UTC
UD38252
BS
GND
FB
SEN2
SEN1
Input 8~38V
C7
100μF
50V
C1
2.2μF
40V
C6
0.1μF
C5
100μF
VOUT
5V 2.4A
R5
24Ω
D1
SK34
L1 33μH RSEN
37mΩ
R1
40kΩ
C2
10μF
10V
C8
470μF
10V
R2
10kΩ
R3
15kΩ
C3
3.3nF
VOUT=VFB × (1+R1/R2), VFB = 1.00V, R2 suggest 1K~30KΩ
ISEN = 2.7A (ISEN≒VSEN(0.1V) / RSEN(37mΩ))
