UD38501
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
5 of 7
www.unisonic.com.tw
QW-R115-009.A

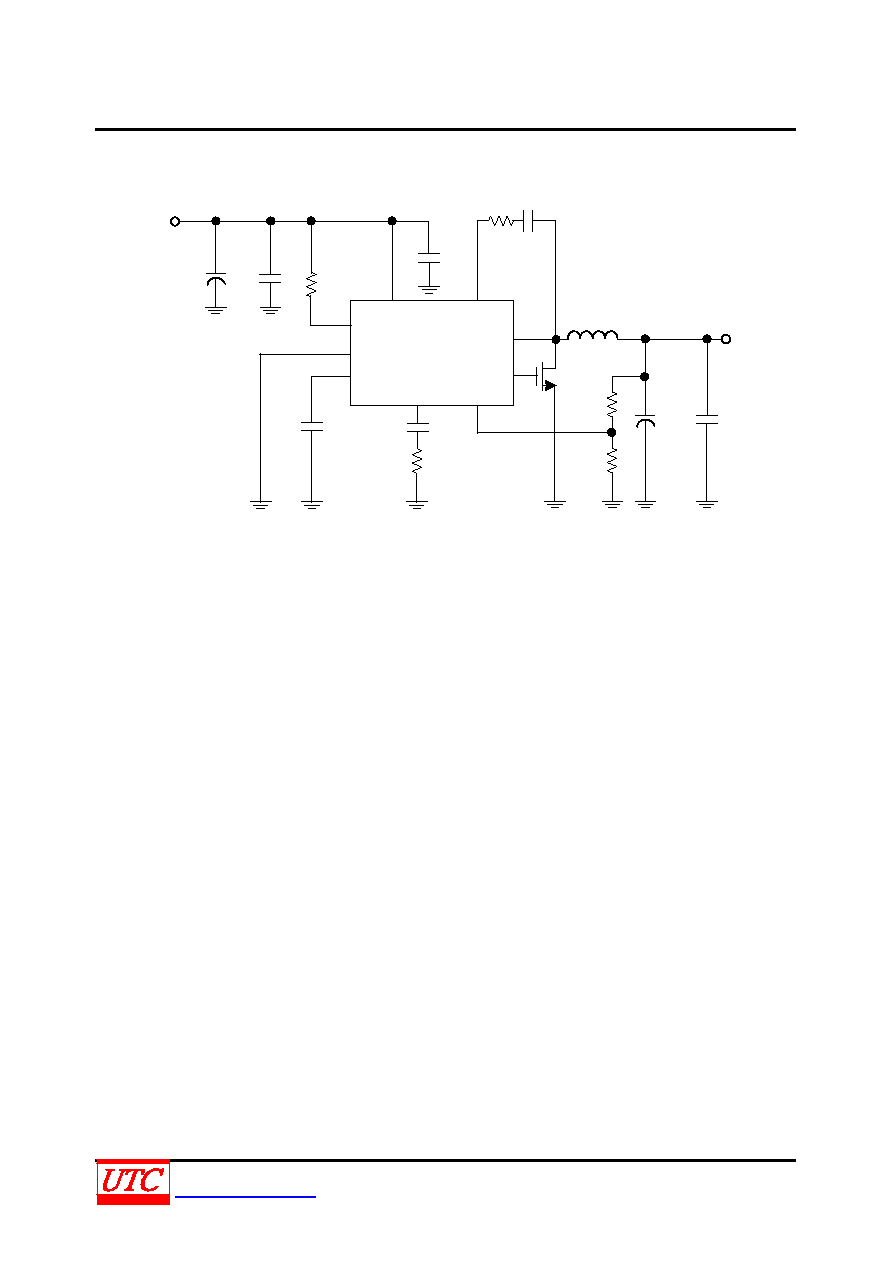

TYPICAL APPLICATION CIRCUIT
IN
EN
PDA(GND)
VDD
COMP
BS
SW
LG
FB
UTC
UD38501
VOUT=VFB × (1+R1/R2), VFB= 1.00V, R2 suggest 10k~30kΩ
Input
C17
220µF
50V
C7
10µF
20V
R4
100kΩ
C6
0.1µF
R5
0Ω C5
100nF
L1
33µH
Output
5V 5A
R1
40kΩ
C8
22µF
10V
C2
470µF
10V
R2
10kΩ
C3
3.3nF
R3
15kΩ
C4
0.1µF
Q1
NMOS
