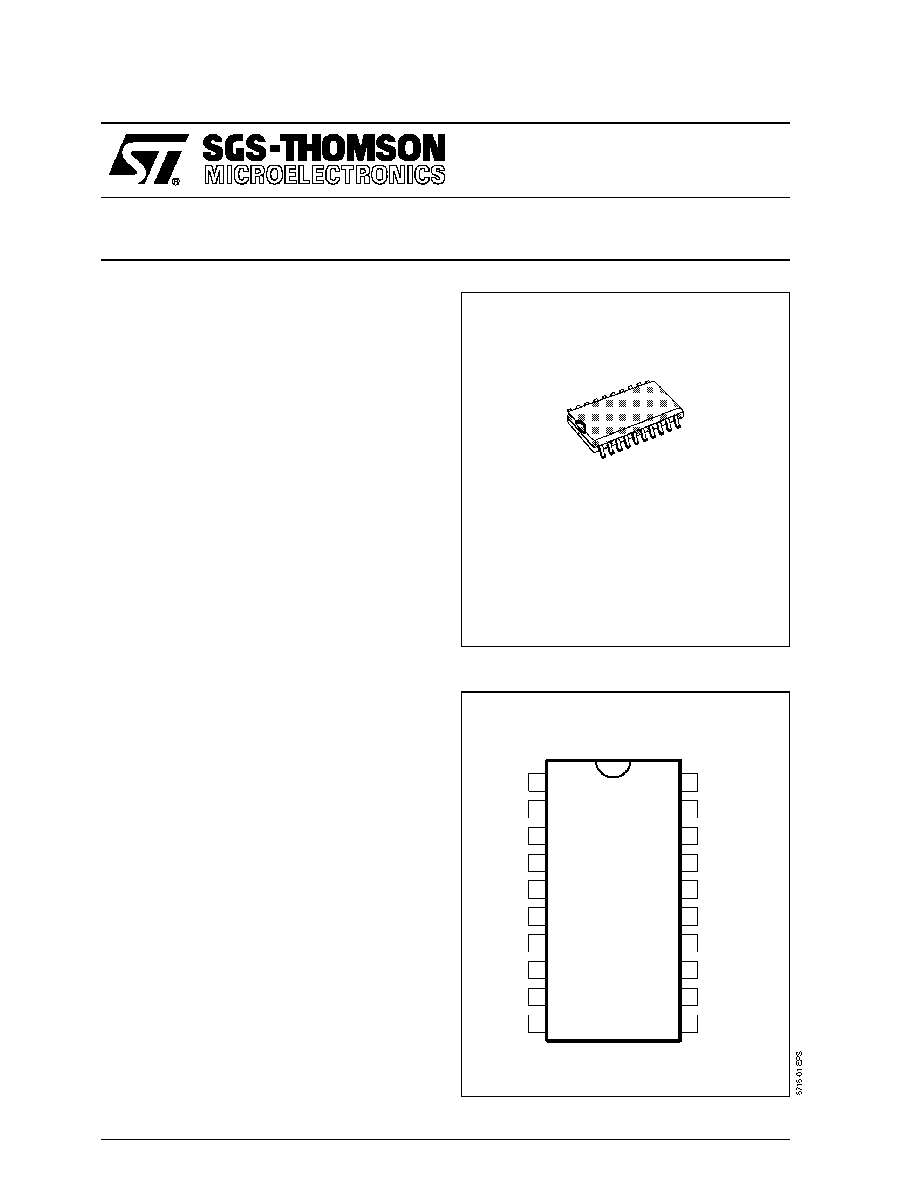

STV5715
ADVANCED 2-HEAD
PLAY-BACK AND RECORD AMPLIFIER FOR VCR
November 1993
SO20 LARGE
(Plastic Micropackage)
ORDER CODE : STV5715
PLAY-BACK MODE
.
LOW NOISE AND WIDE BAND AMPLIFIERS
FOR 2 HEADS
.
AUTOMATIC OFFSET CANCELLATION BE-
TWEEN THE 2 SELECTED HEADS
.
ONE PLAY-BACK OUTPUT WITHOUT AGC
.
ONE PLAY-BACK OUTPUT INCLUDING AGC
.
RECORD AMPLIFIER INHIBITION AND RE-
CORD OUTPUT GROUNDED
.
OUTPUT FOR TRACKING VIDEO INFORMA-
TION (TRIV) WITH ADJUSTABLE GAIN
RECORD MODE
.
ONE INTEGRATED I/I CONVERTER WITH
ACCURATE CONTROL OF TRANSCONDUC-
TANCE
.
AUTOMATIC PLAY-BACK/RECORD SWITCH-
ING BY SCANNING OF RECORD SUPPLY
.
PLAY-BACK LOOP INHIBITION
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
GND1
CCAS
H1
GND2
H2
C2
C1
CAGC
GND3
TRIVADJ
VMES
SW M
SW H
CHROMA
VIN
LUMA
VCC
TRIV
REC
V
OUT
I
PIN DESCRIPTION
DESCRIPTION
The STV5715 is an advanced two head record and
play-back amplifier for VCR.
1/9
