Data Sheet
ADL5726
Rev. A | Page 7 of 13
15
–25
–20
–15
–10
–5
0
5
10
21.2
21.5
21.8
22.1
22.4
22.7
23.0
23.3
23.6
FREQUENCY (GHz)
TA = –40°C
TA = +25°C
TA = +85°C

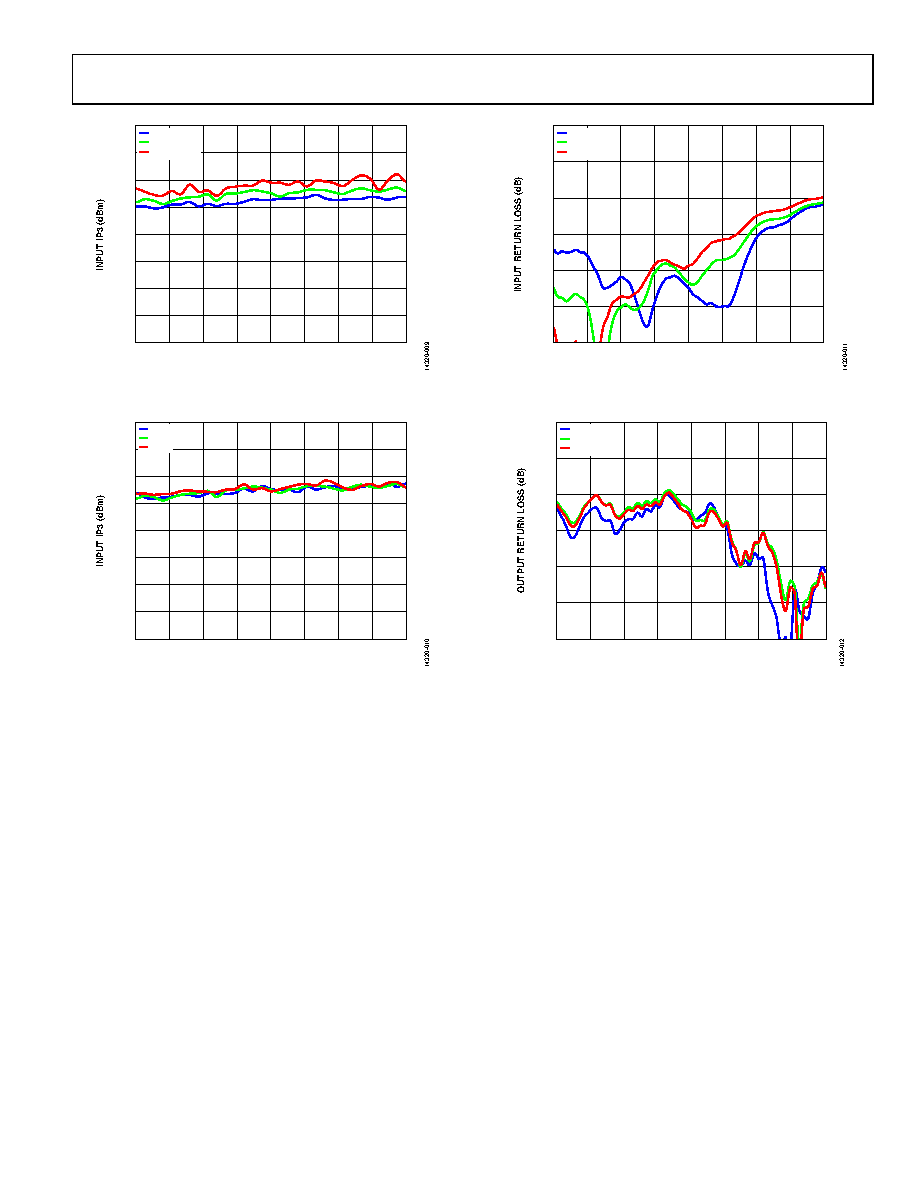

Figure 9. Input IP3 vs. Frequency for Various Temperatures
15
–25
–20
–15
–10
–5
0
5
10
21.2
21.5
21.8
22.1
22.4
22.7
23.0
23.3
23.6
FREQUENCY (GHz)
3.1V
3.3V
3.5V
Figure 10. Input IP3 vs. Frequency for Various Supply Voltages
0
–30
–25
–20
–15
–10
–5
21.2
21.5
21.8
22.1
22.4
22.7
23.0
23.3
23.6
FREQUENCY (GHz)
TA = –40°C
TA = +25°C
TA = +85°C
Figure 11. Input Return Loss vs. Frequency for Various Temperatures
0
–30
–25
–20
–15
–10
–5
21.2
21.5
21.8
22.1
22.4
22.7
23.0
23.3
23.6
FREQUENCY (GHz)
TA = –40°C
TA = +25°C
TA = +85°C
Figure 12. Output Return Loss vs. Frequency for Various Temperatures
