AD8132

Rev. I | Page 12 of 32

FREQUENCY (MHz)

110

100

–1

–2

–3

–4

–5

VS = ±5V

G = +1

VO, dm = 2V p-p

RL, dm = 499Ω

RF = 499Ω

RF = 348Ω

RF = 249Ω

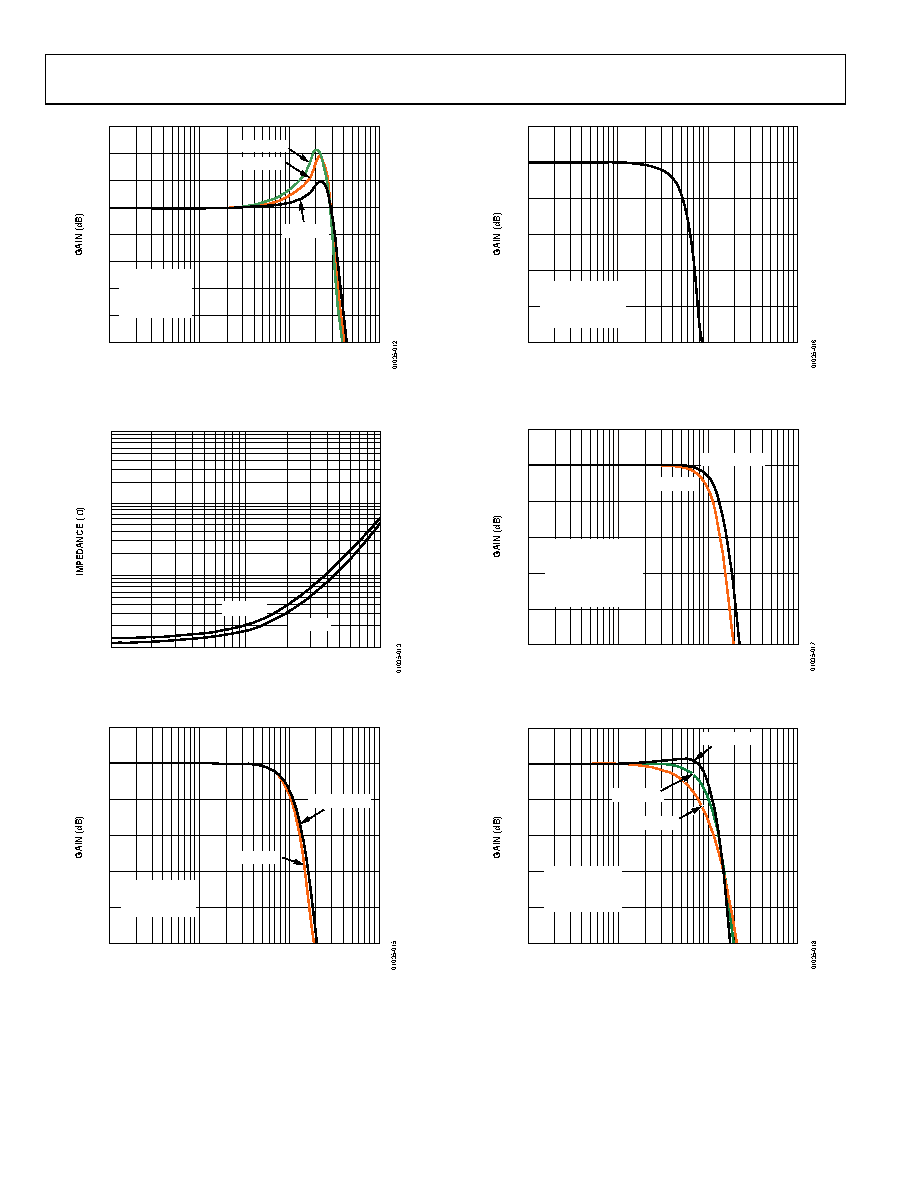

Figure 11. Large Signal Frequency Response vs. RF (See Figure 56)

FREQUENCY (MHz)

100

0.1

100

VS = +5V

VS = ±5V

Figure 12. Closed-Loop Single-Ended ZOUT vs. Frequency; G = +1 (See Figure 56)

FREQUENCY (MHz)

100

G = +2

VO, dm = 0.2V p-p

RL, dm = 200Ω

VS = +3V

VS = ±5V, +5V

Figure 13. Small Signal Frequency Response (See Figure 57)

FREQUENCY (MHz)

100

VS = +3V, +5V, ±5V

G = +2

VO, dm = 0.2V p-p

RL, dm = 200Ω

6.1

6.0

5.9

5.8

5.7

5.6

5.5

Figure 14. 0.1 dB Flatness vs. Frequency (See Figure 57)

FREQUENCY (MHz)

110

100

VS = +5V, ±5V

VS = +3V

G = +2

VO, dm = 2V p-p FOR

VS = ±5V, +5V

VO, dm = 1V p-p FOR

VS = +3V

RL, dm = 200Ω

Figure 15. Large Signal Frequency Response (See Figure 57)

FREQUENCY (MHz)

100

VS = ±5V

G = +2

VO, dm = 0.2V p-p

RL, dm = 200Ω

RF = 1.0kΩ

RF = 499Ω

RF = 1.5kΩ

Figure 16. Small Signal Frequency Response vs. RF (See Figure 57)
