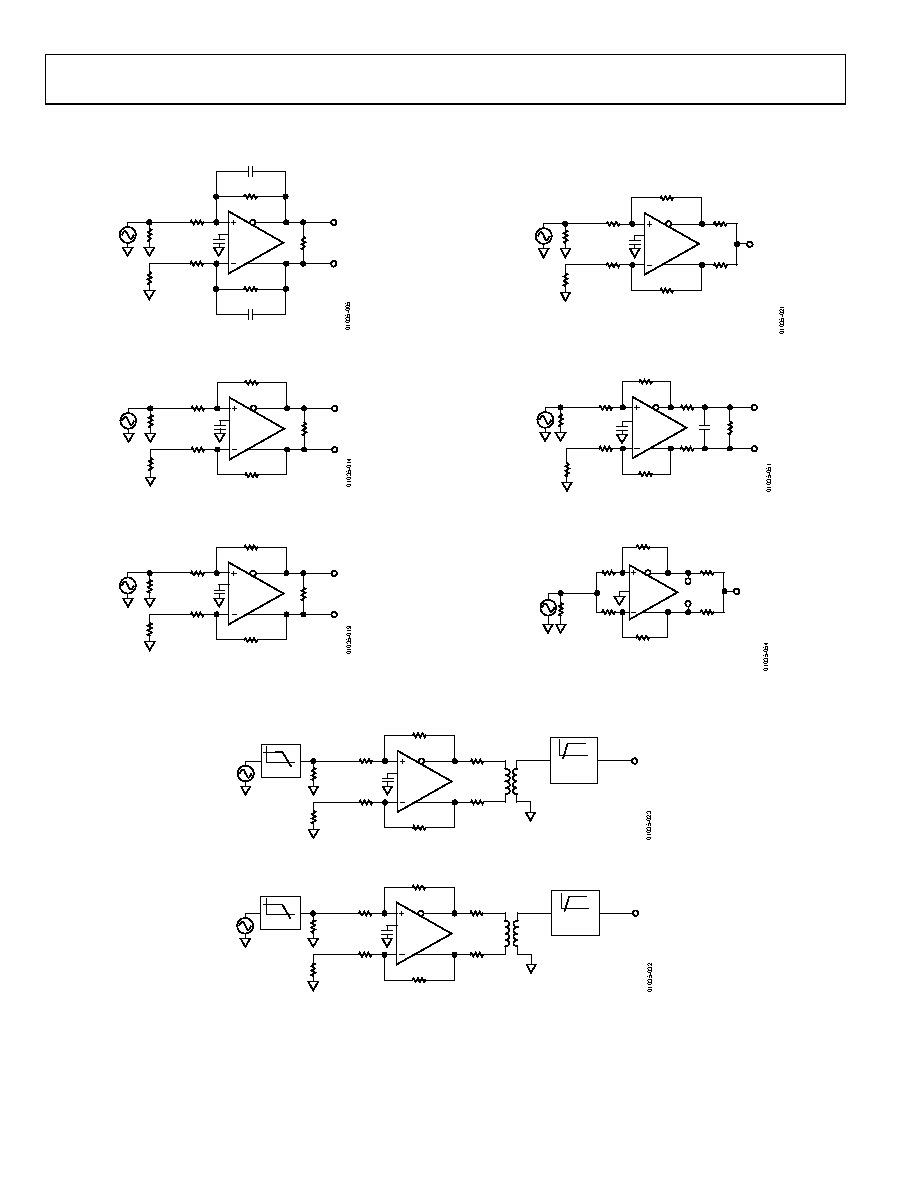

21 / 33 page  AD8132 Rev. I | Page 20 of 32 TEST CIRCUITS 0.1µF 348Ω 348Ω 49.9Ω 24.9Ω 348Ω 348Ω 499Ω CF CF Figure 56. Basic Test Circuit, G = +1 0.1µF 499Ω 499Ω 49.9Ω 24.9Ω 1000Ω 1000Ω 200Ω Figure 57. Basic Test Circuit, G = +2 0.1µF 499Ω 499Ω 49.9Ω 24.9Ω RF 200Ω RF Figure 58. Test Circuit for Various Gains 0.1µF 49.9Ω 24.9Ω RF RF RG RG RL RL G = +1: RF = RG = 348Ω, RL = 249Ω (RL, dm = 498Ω) G = +2: RF = 1000Ω, RG = 499Ω, RL = 100Ω (RL, dm = 200Ω) Figure 59. Test Circuit for Output Balance 0.1µF 348Ω 348Ω 49.9Ω 24.9Ω 348Ω 348Ω 453Ω 24.9Ω 24.9Ω CL Figure 60. Test Circuit for Capacitor Load Drive 348Ω 348Ω 49.9Ω 348Ω 348Ω 249Ω 249Ω VO, dm VO, cm NOTES RESISTORS MATCHED TO 0.01%. Figure 61. CMRR Test Circuit 0.1µF 348Ω 348Ω 49.9Ω 24.9Ω 348Ω 348Ω 300Ω 300Ω 2:1 TRANSFORMER LPF HPF ZIN = 50Ω Figure 62. Harmonic Distortion Test Circuit, G = +1, RL, dm = 800 Ω 0.1µF 499Ω 499Ω 49.9Ω 24.9Ω 1000Ω 1000Ω 300Ω 300Ω 2:1 TRANSFORMER LPF HPF ZIN = 50Ω Figure 63. Harmonic Distortion Test Circuit, G = +2, RL, dm = 800 Ω |
|
