Data Sheet
ADA4939-1/ADA4939-2
Rev. A | Page 13 of 24
–60
–105
–100
–95
–90
–85
–80
–75
–70
–65
1
10
100
FREQUENCY (MHz)
VOUT, dm = 2V p-p
VS = ±2.5V
RL = 1kΩ
RL = 200Ω

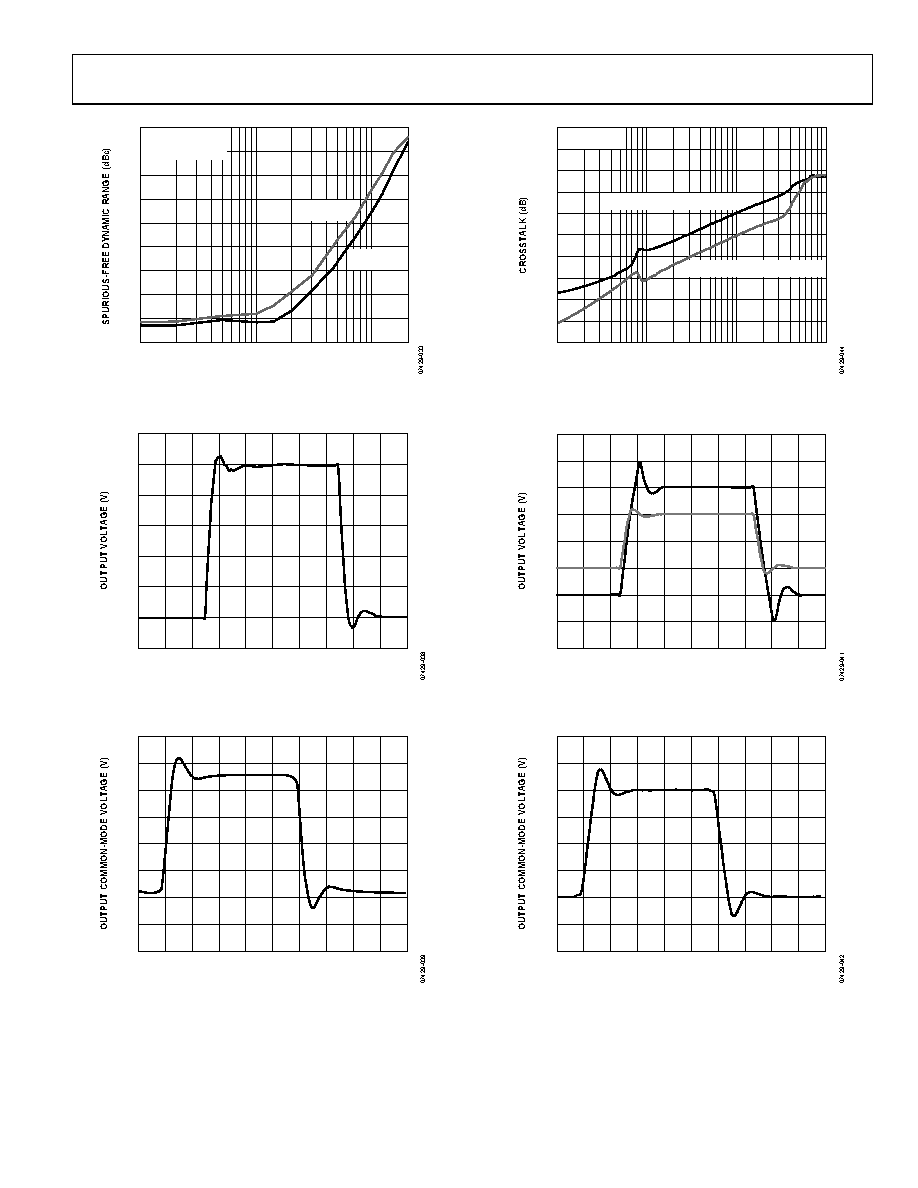

Figure 31. Spurious-Free Dynamic Range vs. Frequency at Various Loads
0.12
0.10
0.08
0.06
0.04
0.02
0
–0.02
010
9
8
7
6
5
4
3
2
1
TIME (ns)
Figure 32. Small Signal Pulse Response
2.60
2.40
2.45
2.50
2.55
020
18
16
14
12
10
8
6
4
2
TIME (ns)
Figure 33. VOCM Small Signal Pulse Response
–40
–140
–130
–120
–110
–100
–90
–80
–70
–60
–50
11k
100
10
FREQUENCY (MHz)
RL, dm = 200Ω
INPUT AMP 1 TO OUTPUT AMP 2
INPUT AMP 2 TO OUTPUT AMP 1
Figure 34. Crosstalk vs. Frequency for ADA4939-2
4
–4
–3
–2
–1
0
1
2
3
010
9
8
7
6
5
4
3
2
1
TIME (ns)
Figure 35. Large Signal Pulse Response
4.5
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
020
18
16
14
12
10
8
6
4
2
TIME (ns)
Figure 36. VOCM Large Signal Pulse Response
