Magnetic and Hydraulic-Magnetic Circuit Breaker 8345-...

www.e-t-a.de

1651

Mounting version F

Flange mounting round aperture

Cut-out dimensions:

Mounting version B/C

Flange mounting rectangular aperture

pole

19.1±0.1

number of poles 1 to 4

mounting thread M3 or 6-32

all dimensions referred to the top edge

mounting depth 4.2 mm/.165 in.

max. insertion depth 5.5 mm

max. tightening torque 0.33 Nm

1.89

Cut-out dimensions:

1-pole

multipole

19.2

.756

28.7

47.8

9.6

2.63

1.88

.378

1.13

66.9

76.5

3.01

3.5±0.1 (M3)

+0.1

-0.15 (6-32UNC)

1-pole

.138±.004 (M3)

.157

+.004

-.006 (6-32UNC)

4-pole

OFF

2.68

1.89

2.68

OFF

pole

number of poles 1 to 4

.752±.004

19.1

.752

n x 19.1

n x .752

19.1±0.1

.752±.004

3.5±0.1 (M3)

+0.1

-0.15 (6-32UNC)

.138±.004 (M3)

.157

+.004

-.006 (6-32UNC)

19.1

.752

n x 19.1

n x .752

max. panel thickness: 3 mm

mounting thread M3 or 6-32

all dimensions referred to the top edge

mounting depth 4.2 mm/.165 in.

max. insertion depth 5.5 mm

max. tightening torque 0.33 Nm

OFF

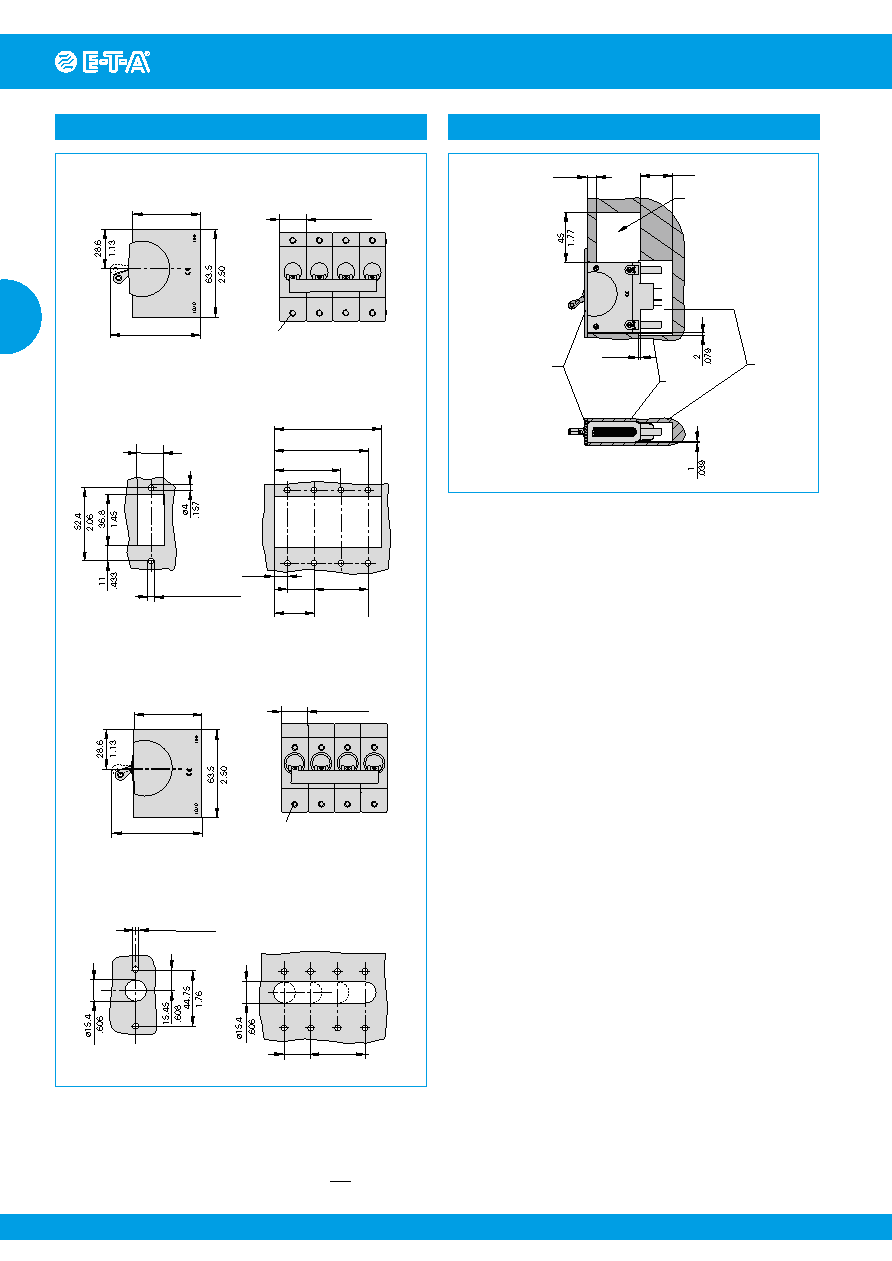

Dimensions

Installation drawing

blow out space

(can be reduced on request)

operating area

(reinforced insulation)

.079

.315

1.14

terminal

area

mounting

area

This is a metric design and millimeter dimensions take precedence ( mm )
