ADA4857-1/ADA4857-2
Data Sheet
Rev. D | Page 8 of 21

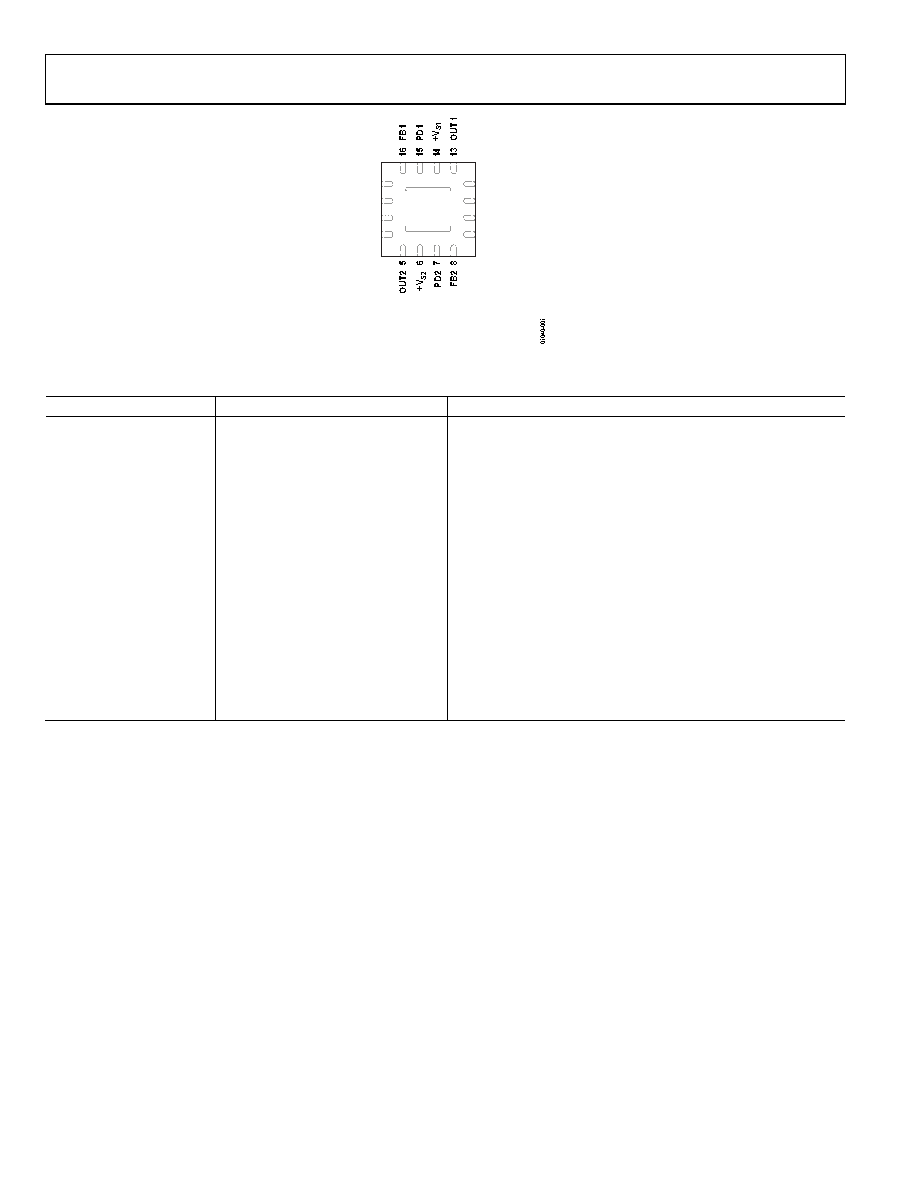

Figure 7. 16-Lead LFCSP Pin Configuration
Table 7. 16-Lead LFCSP Pin Function Descriptions
Pin No.
Mnemonic
Description
1
−IN1
Inverting Input 1.
2
+IN1
Noninverting Input 1.
3, 11
NC
No Connect.
4
−VS2
Negative Supply 2.
5
OUT2
Output 2.
6
+VS2
Positive Supply 2.
7
PD2
Power Down 2.
8
FB2
Feedback 2.
9
−IN2
Inverting Input 2.
10
+IN2
Noninverting Input 2.
12
−VS1
Negative Supply 1.
13
OUT1
Output 1.
14
+VS1
Positive Supply 1.
15
PD1
Power Down 1.
16
FB1
Feedback 1.
EP
GND or VS
Exposed Pad. The exposed pad may be connected to GND or VS.
12
11
10
1
3
4
9
2
NOTES
1. NC = NO CONNECT. DO NOT CONNECT
TO THIS PIN.
2. THE EXPOSED PAD MAY BE CONNECTED
TO GND OR VS.
–IN1
+IN1
NC
–VS2
–VS1
NC
+IN2
–IN2
ADA4857-2
TOP VIEW
(Not to Scale)
