P9038 DATASHEET

P9038 August 1, 2016

Typical Performance Characteristics

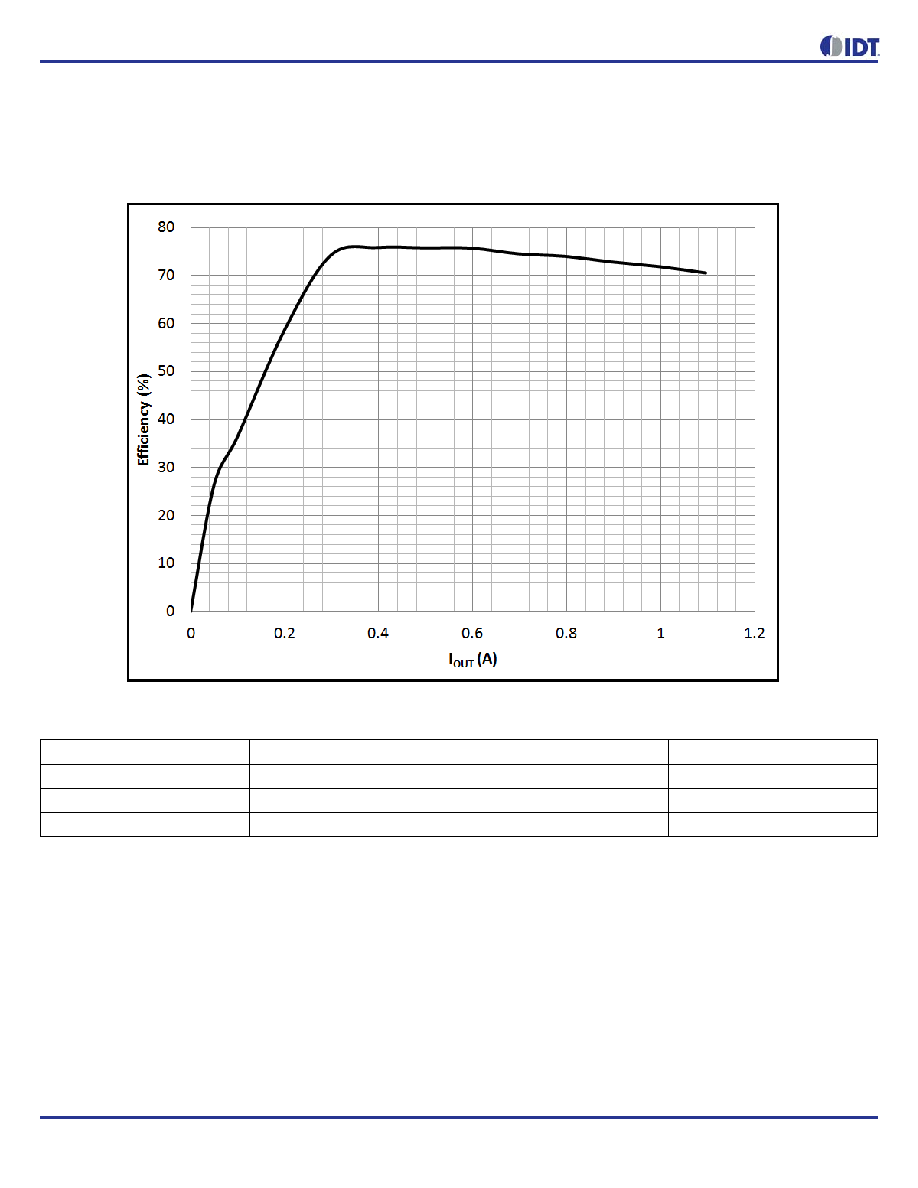

Figure 1. System Efficiency vs. Load Circuit

VIN = 5V, VOUT = 5.3V, Spacer = 3.7mm, Cs = 247nF, TA = 25°C

Measured using the P9025AC-R-EVK V1.0 (receiver) and P9038-R-EVK V1.0 (transmitter) reference boards.

Table 5: P9038 No Load vs Receiver IOUT = 1A, TA = 25°C

Input Voltage

Temp (°C) No Load

Temp (°C) 1A Load

Temp. Change

4.5V

34.7

37.2

2.5

5.0V

34.9

37.4

2.5

5.5V

35.2

38.5

3.3
