P9242-R Datasheet
© 2016 Integrated Device Technology, Inc
5
December 16, 2016
1. Pin Assignments

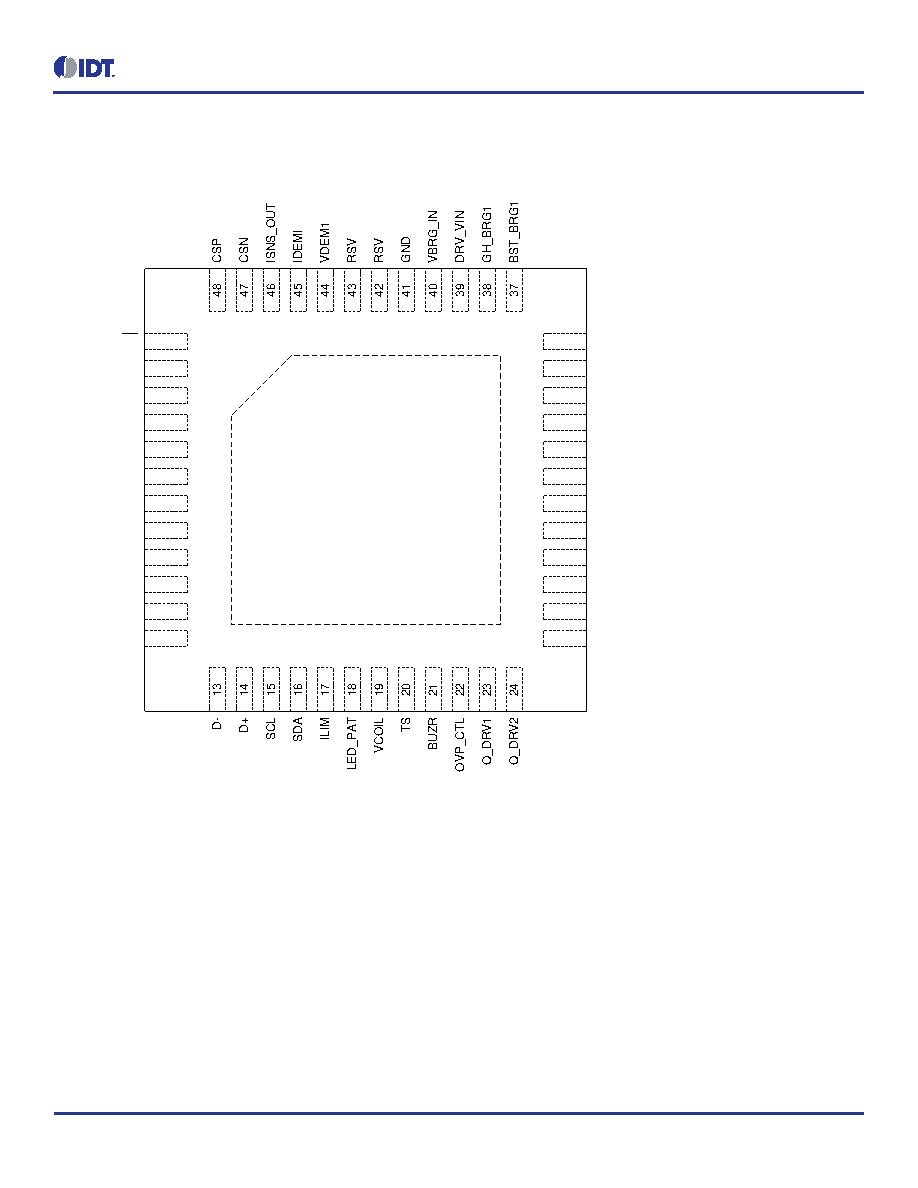

Figure 1. Pin Assignments
1
2
3
4
5
6
7
8
9
10
36
35
34
33
32
31
30
29
28
27
EP (Center Exposed Pad)
GND
PREG
VIN
SW_S
GND
LDO33
VIN_LDO
LDO18
LED1
SW_BRG1
GL_BRG1
GND
GL_BRG2
SW_BRG2
BST_BRG2
GH_BRG2
GPIO
RSV
RSV
11
12
LED2
VDDIO
26
25
RSV
RSV
EN
