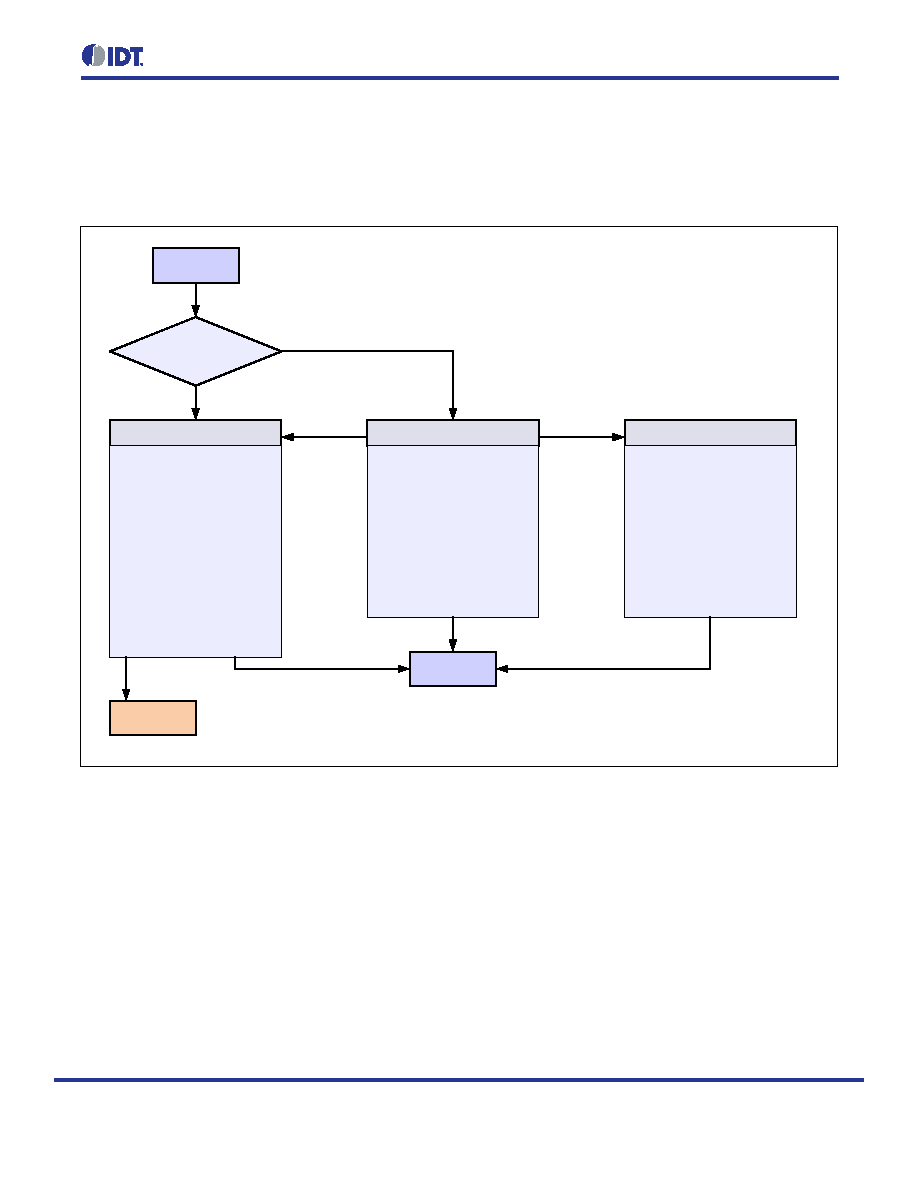

24 / 52 page  © 2016 Integrated Device Technology, Inc 24 November 14, 2016 ZSC31015 Datasheet Normal Operation Mode Start_NOM Power ON Command Mode Raw Mode No commands possible Measurement cycle Conditioning calculations (corrected bridge and temperature values) Depending on configuration, the Sig TM pin is • 0 V to 1 V; • Rail-to-rail ratiometric; or • Digital output Diagnostic functions Measurement cycle stopped Full command set Command routine will be processed after each command Measurement cycle Sig TM pin provides raw bridge and temperature values in the format: • Bridge_high (1st byte) • Bridge_low (2 nd byte) • Temp (3 rd byte) Start_RM Command Window (3 ms); send Start_CM Start_CM No Command Power OFF Diagnostic State* Error Detection Figure 3.1 General Working Mode * See section 2.6. |
|
