STK17TA8

February 2004

7

Document Control # ML0023 rev 0.3

AutoStore™/POWER-UP RECALL

Note q: If an SRAM WRITE has not taken place since the last nonvolatile cycle, no STORE will take place.

AutoStore™/POWER-UP RECALL

NO.

SYMBOLS

PARAMETER

STK17TA8

UNITS NOTES

Standard

Alternate

MIN

MAX

22

Power-up RECALL Duration

5

ms

p

23

STORE Cycle Duration

10

ms

q

24

Low Voltage Trigger Level

2.55

2.65

V

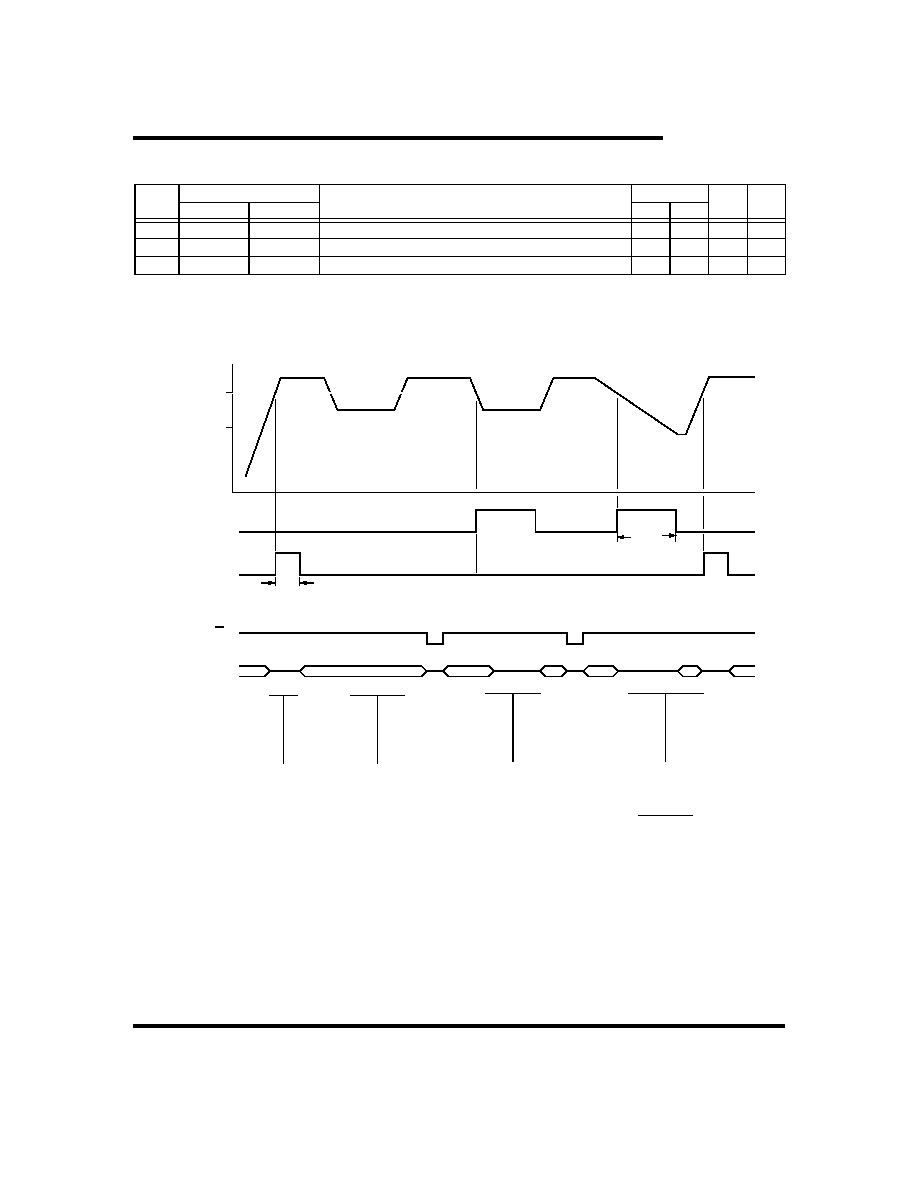

POWER-UP

RECALL

BROWN OUT

NO STORE

(NO SRAM WRITES)

BROWN OUT

AutoStore™

BROWN OUT

AutoStore™

RECALL WHEN

AutoStore™

W

22

POWER-UP RECALL

24

DQ (DATA OUT)

23
