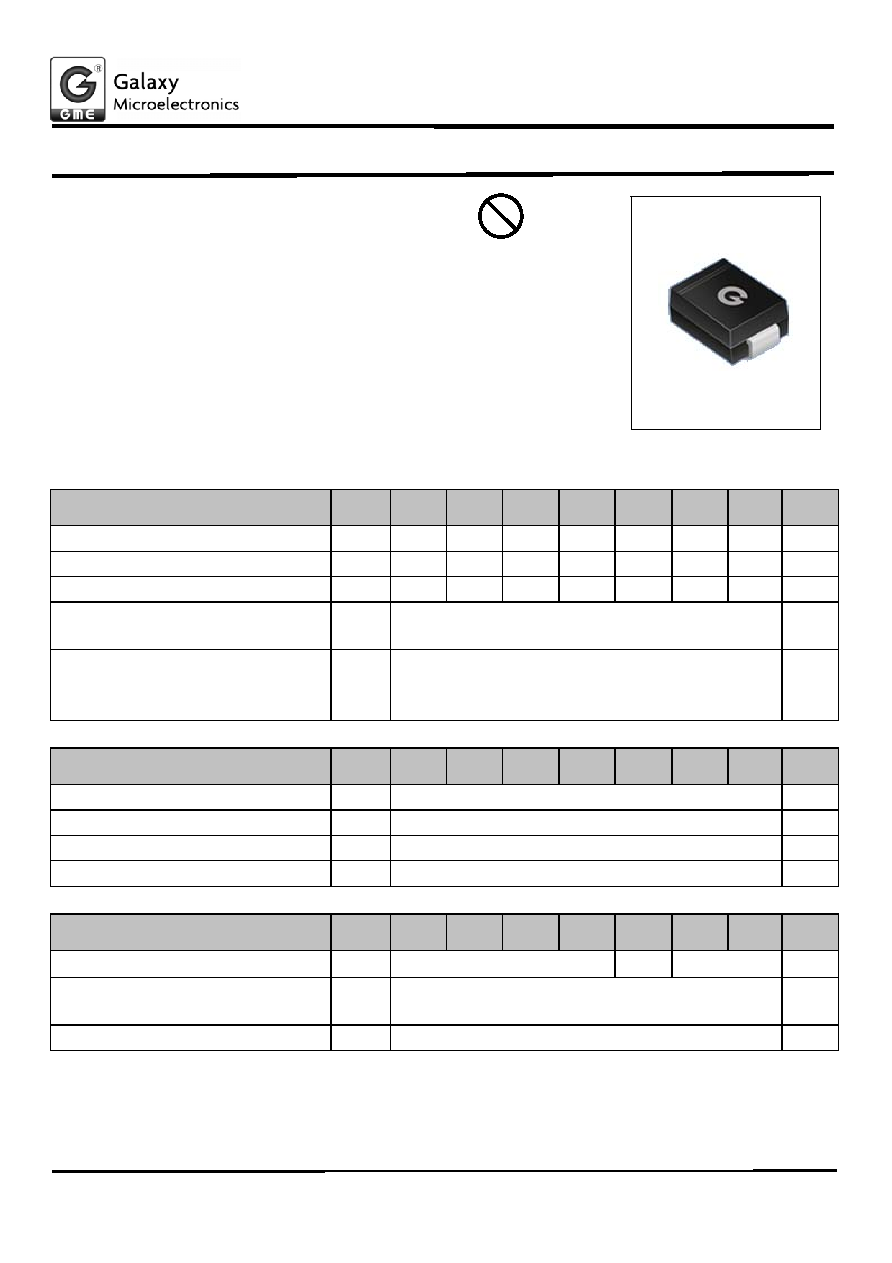

Production specification

Surface Mount Rectifiers

ES3AB--ES3JB

Document Number: SMB103AA

www.gmicroelec.com

1

FEATURES

Low cost

Low leakage

Low forward voltage drop

High current capability

Easily cleaned with Alcohol ,Isopropanol and similar solvents

The plastic material carries U/L recognition 94V-0

MECHANICAL DATA

Case: DO-214AA molded plastic

Terminals: Solder able per MIL- STD-202,Method 208

Polarity: Color band denotes cathode

Maximum Ratings(@TA = 25°C unless otherwise specified)

Characteristic

Symbol

ES3AB

ES3BB

ES3CB

ES3DB

ES3GB

ES3HB

ES3JB

UNITS

Maximum recurrent peak reverse voltage

VRRM

50

100

150

200

400

500

600

V

Maximum RMS voltage

VRMS

35

70

105

140

280

350

420

V

Maximum DC blocking voltage

VDC

50

100

150

200

400

500

600

V

Maximum average forward rectified current

@TA=100℃

IF(AV)

3.0

A

Peak forward surge current

8.3ms single half-sine-wave

superimposed on rated load @TJ=125℃

IFSM

100

A

Thermal Characteristics

Characteristic

Symbol

ES3AB

ES3BB

ES3CB

ES3DB

ES3GB

ES3HB

ES3JB

UNITS

Typical junction capacitance

(Note2)

CJ

45

p F

Typical thermal resistance

(Note3)

RθJA

25

℃

/W

Operating junction temperature range

TJ

- 55 ---- + 150

℃

Storage temperature range

TSTG

- 55 ---- + 150

℃

Electrical Characteristics (@TA = 25°C unless otherwise specified)

Characteristic

Symbol

ES3AB

ES3BB

ES3CB

ES3DB

ES3GB

ES3HB

ES3JB

UNITS

Maximum instantaneous forward voltage at3.0 A

VF

0.95

1.25

1.70

V

Maximum reverse current

@TA=25℃

at rated DC blocking voltage @TA=125℃

IR

10

500

μ A

Maximum reverse recovery time (Note1)

trr

35

ns

NOTE: 1. Measured with IF=0.5A, IR=1A, Irr=0.25A

2. Measured at 1.0MHZ and applied reverse voltage of 4.0VDC

3. Thermal resistance from junction to ambient and junction to lead P.C.B. mounted on 0.27''X0.27''(7.0X7.0mm2) copper

pad areas

Pb

Lead-free
