Document No.: FT_000589

FT313H USB2.0 HS Host Controller Datasheet Version 1.2

Clearance No.: FTDI# 318

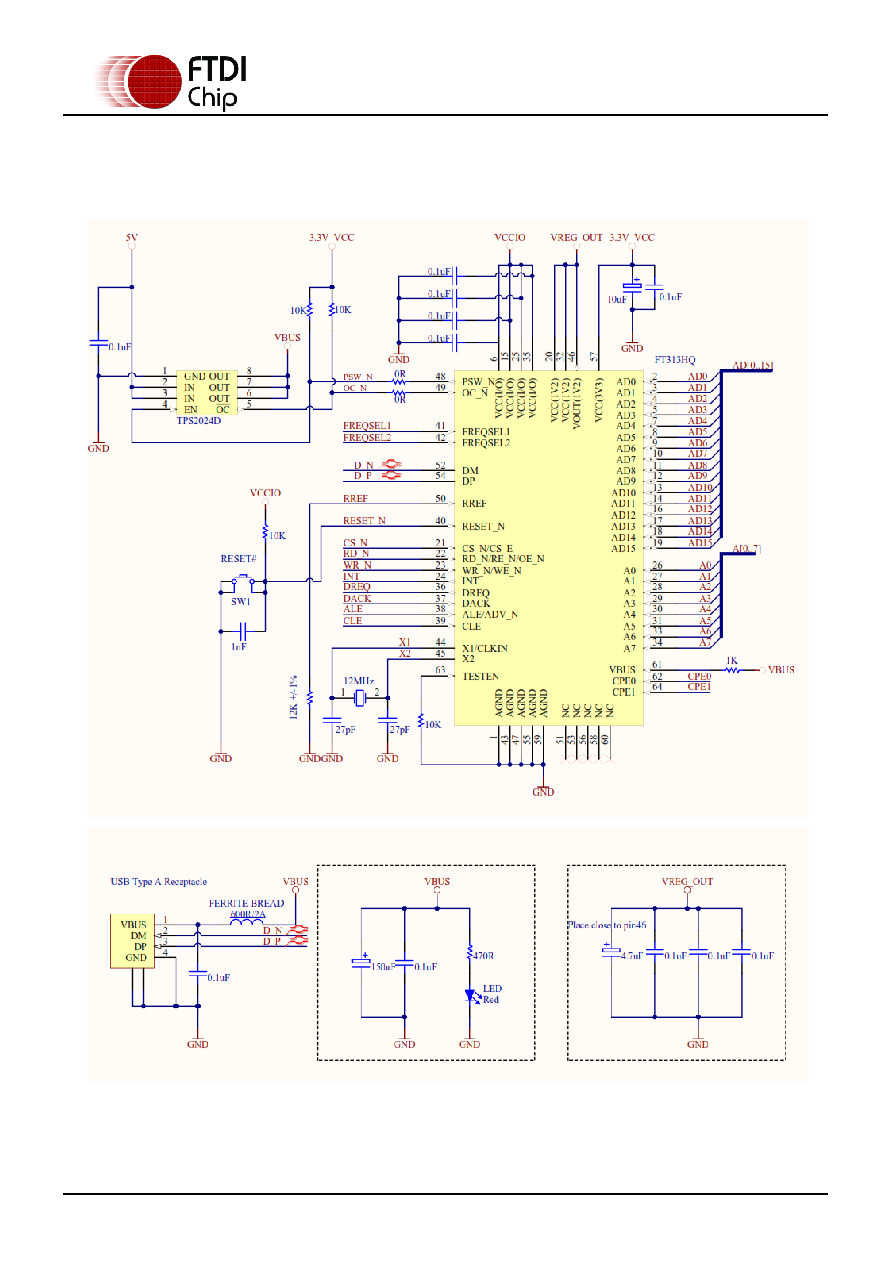

7 Application Examples

FT313H can be configured to communicate with a microcontroller uses 16-bit/8-bit SRAM asynchronous

bus interface, NOR interface, and General Multiplex interface. An example schematic is show in Figure

7.1.
