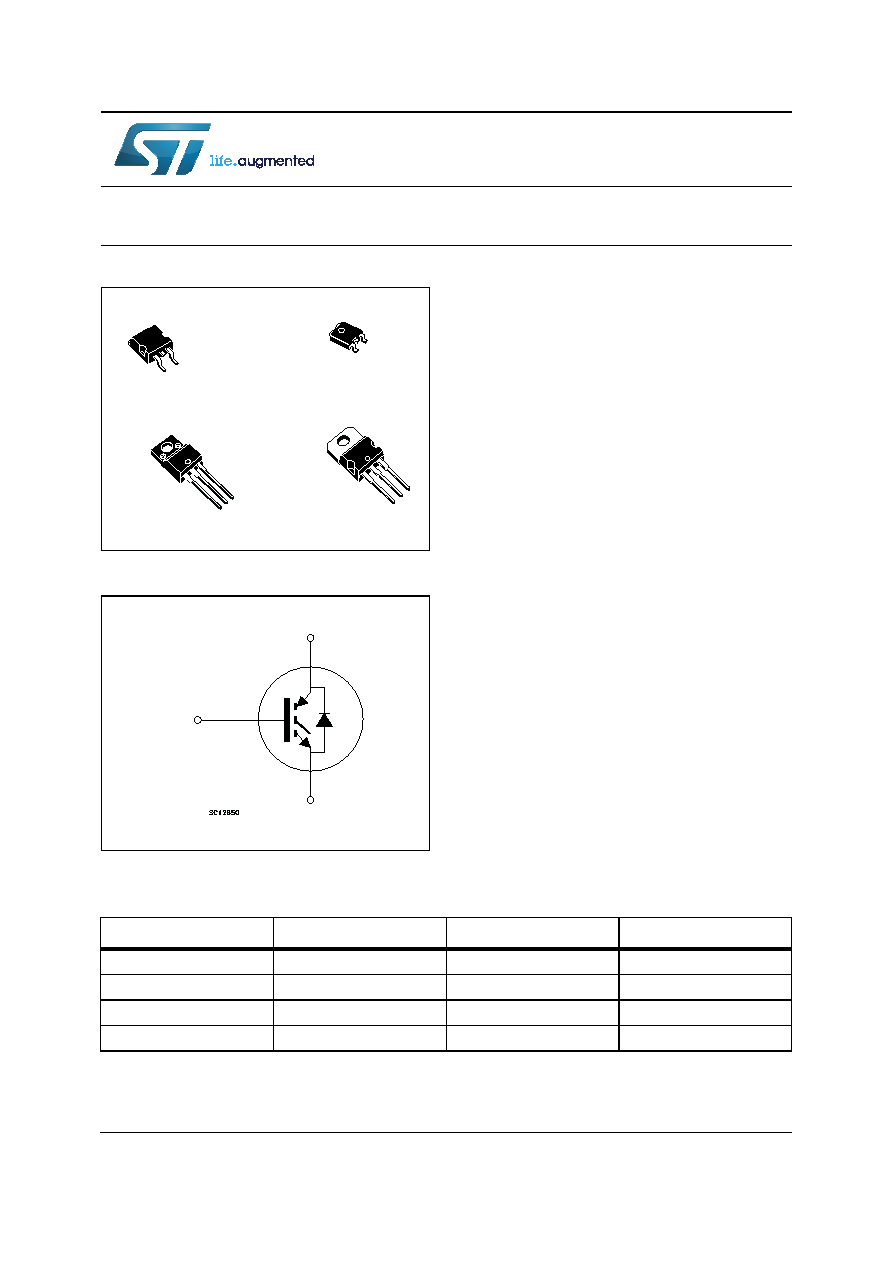

background image
This is information on a product in full production.
May 2015
DocID027233 Rev 3
1/30
STGB5H60DF, STGD5H60DF,
STGF5H60DF, STGP5H60DF
Trench gate field-stop IGBT, H series
600 V, 5 A high speed
Datasheet
- production data
Figure 1. Internal schematic diagram
Features
• High speed switching
• Tight parameters distribution
• Safe paralleling
• Low thermal resistance
• Short-circuit rated
• Ultrafast soft recovery antiparallel diode
Applications
• Motor control
• UPS, PFC
Description
These devices are IGBTs developed using an
advanced proprietary trench gate and field-stop
structure. The devices are part of the H series of
IGBTs, which represent an optimum compromise
between conduction and switching losses to
maximize the efficiency of high switching
frequency converters. Moreover, a slightly
positive VCE(sat) temperature coefficient and very
tight parameter distribution result in safer
paralleling operation.
C (2, TAB)
E (3)
G (1)
Table 1. Device summary
Order codes
Marking
Packages
Packing
STGB5H60DF
GB5H60DF
D²PAK
Tape and reel
STGD5H60DF
GD5H60DF
DPAK
Tape and reel
STGF5H60DF
GF5H60DF
TO-220FP
Tube
STGP5H60DF
GP5H60DF
TO-220
Tube
www.st.com
