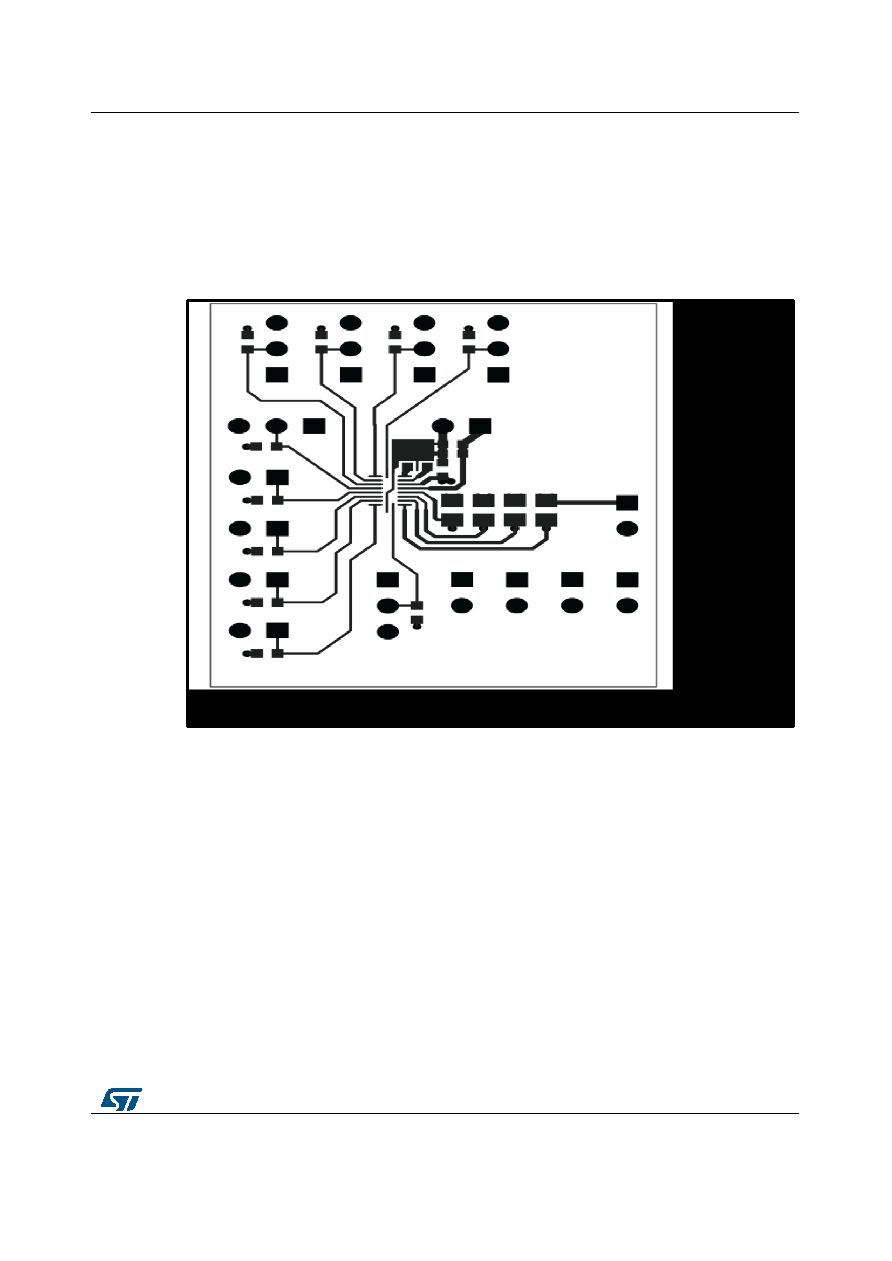

15 / 24 page ![]() STP4CMP PCB layout DocID15770 Rev 3 15/24 7 PCB layout 7.1 Recommended The STP4CMP is a charge pump power device so it requires a proper PCB layout in order to obtain the necessary stability and optimize line/load regulation and output voltage ripple. Input, output, and boost capacitors must be as close as possible to their relative pins. Figure 9: Top layer |
|
|
